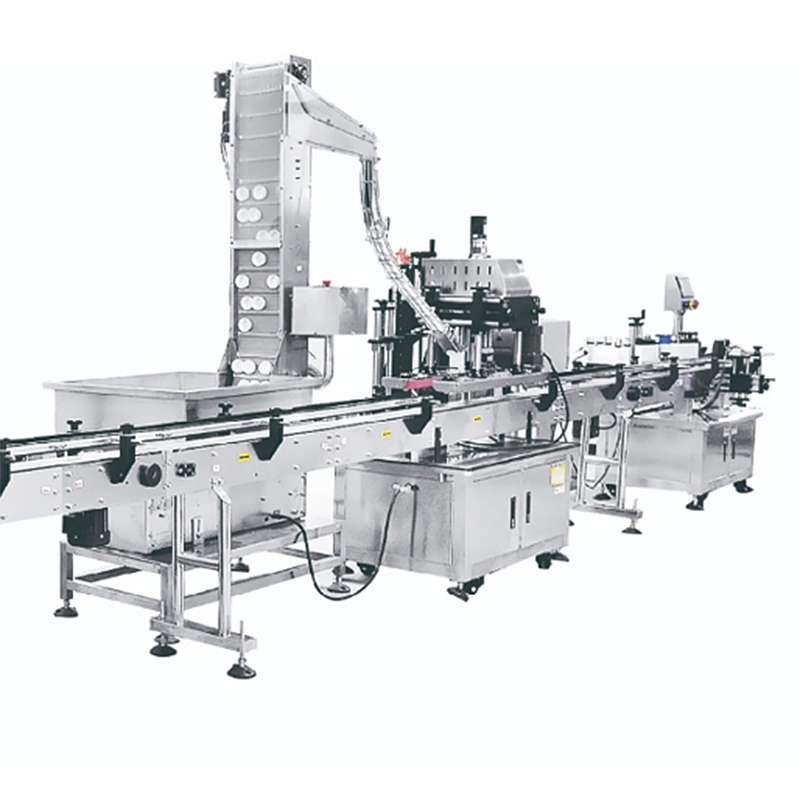

accurate filling Automatic Filling Production Line 500-5000ML
This machine is a high-tech filling equipment that is programmable and controlled by microcomputer (PLC), photoelectric sensing and pneumatic execution.
This model is specially used for food, such as seasonings, vegetable oils, syrups, pear pastes, sauces and other edible liquid pastes, as well as the filling of pesticide chemical liquids. Accurate filling and measurement, no bubbles and no drips. It can be applied to the filling of 500-5000ml bottles.
Features
It is suitable for filling containers of different specifications, and the filling specifications can be switched within a few minutes. The filling cycle is short and the production capacity is high. There is no need to add spare parts to replace the filling specifications. It can be completed by making adjustments. Users can choose the number of filling heads according to their own production capacity. The touch operation color screen can display the production status, operation procedures, filling methods, etc. The picture is intuitive, simple to operate, and easy to maintain. Each filling head is equipped with a bottle mouth setting to ensure the accuracy of the injection.
The design chooses the linear grouping way into and out of the bottle to expand the filling function. Containers of various shapes can be effectively filled in this equipment. Imported gas filling valves are selected to ensure that there is no dripping and salivating in the filling process. Powerful PLC software support can achieve ideal filling operation, man-machine interface, all The operation is completed on the touch screen.
Features
The filling adopts volumetric quantification to control the stroke of the piston cylinder to achieve different metering. The accurate time of pneumatic valve filling can be set to 0.01 seconds, which can control the measurement accuracy within the ±1% error range, reduce unnecessary material loss, and improve the economic benefits of users. The measurement of each filling head can be adjusted separately to achieve the consistency of filling measurement. This machine has set the technical procedure for entering bottles. There is no bottle, and the count is not in place. Filling will only start when the number of bottles recorded by the counter is consistent with the set number of filling bottles. The amount of filling can be adjusted to the required amount of filling, and then fine-tuned to obtain the ideal filling measurement accuracy.
Note: The filling range and speed can be designed with different filling heads according to user needs.
Product display
