Automatic Gummy Production Line Multifunctional Pectin Gelatin Gummy Making Equipment

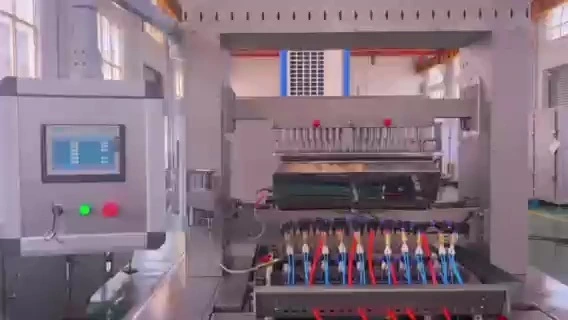

SN-300 automatic gummy production line
The SN-300 Automatic Gummy Production Line is a high-end equipment specifically for large-scale production of colloidal gummies. It integrates full-process automatic functions including dissolving, boiling, mixing, pouring, cooling and drying, and can achieve a stable production capacity of 300kg/h, making it an ideal choice for improving the efficiency and quality of gummy production.Adapting to various base materials such as pectin and gelatin, the production line can flexibly produce multiple types of products including QQ candy, gummy bears, collagen gummies, Omega-3 DHA gummies and vitamin gummies. It supports monochrome and two-color production as well as shape and size customization, and can further expand to hard candy production by changing molds, fully meeting the diverse market demands for functional foods and leisure candies.
Constructed with SUS304/SS304 food-grade stainless steel, the equipment is equipped with a PLC programmable control system and an LED touch screen, enabling on-line quantitative mixing of flavors, pigments and acids, with precise control of pouring speed and weight. It not only ensures food hygiene, safety and product consistency, but also significantly reduces labor input and production space occupation, lowering comprehensive costs.The production line is fully equipped with core equipment such as dissolving tanks, mixing tanks, heat preservation tanks and cooling tunnels, with optional auxiliary devices including coating machines, sanding machines and conveyors. It also provides procurement solutions for supporting equipment such as steam boilers and dehumidifiers to achieve one-stop implementation.
features
Full-process Automatic Integration：The production line seamlessly integrates core processes such as dissolving, boiling, mixing, pouring, cooling and drying, requiring no manual intervention in key links, and realizing continuous production from raw material processing to finished product output. Equipped with a PLC programmable control system and an LED touch screen, the operation is intuitive and convenient, and parameters such as pouring speed and raw material ratio are precisely controllable, greatly improving production efficiency and product consistency.
High and Stable Output with Impressive Capacity：With a designed production capacity of 300kg/h, a pouring speed of 55-65 times per minute and 480 molds, it can meet large-scale production needs. The core components perform stably, and parameters such as steam pressure and compressed air pressure are accurately regulated, ensuring stable output of each batch of products and effectively reducing the risk of production fluctuations.
Multifunctional Adaptability for Diverse Products：Compatible with various base materials such as pectin and gelatin, it can flexibly produce various types of colloidal gummies including QQ candy, gummy bears, collagen gummies, Omega-3 DHA gummies and vitamin gummies, supporting the production of monochrome and two-color products.
Features
Hygienic and Safe with Quality Assurance：The main body of the equipment and parts in contact with food are made of SUS304/SS304 food-grade stainless steel, the cooling conveyor belt is made of food-grade PVC material, and the mold is treated with Teflon coating, which meets food hygiene standards and effectively avoids product contamination.
Flexible Configuration for One-stop Implementation：The core equipment is complete, including a full set of devices such as 300L dissolving tank, 200L jacketed mixing tank, heat preservation tank, pouring machine and cooling system. It provides a variety of optional accessories such as gummy coating machines, sanding machines, drying trays, carts and conveyors, and also supports the purchase of supporting auxiliary equipment such as steam boilers and dehumidifiers.
Durable and Worry-free After-sales Service：Adopting high-quality steel and mature manufacturing technology, the overall weight of the equipment reaches 500kg, with a solid and stable structure and a long service life.
sN-300 gummy production linestructural drawing
specifications
total volume: 300L
Mixer motor power 0.75Kw
Equip with valve, steam trap, pressure meter, safety valve
Steam consumption: 100kg/h, pressure: 0.5Mpa
Machine made of SUS304 material (except standard parts)
Machine size (L*W*H): 1100*1100*1400 mm
Machine weight: 100Kg
specifications
200L jacketed mixing tank 1set, mixer motor power 0.75Kw
200L jacketed storage tank 1set
SUS304 pipe and automatic valve system
Syrup transfer pump power: 0.75Kw, speed adjustable, including jacketed pipe and valve control system
Water heating system including steam heating water tank, water pump, pipe heat preservation control system
Steam control system 1set, including automatic valve and piping system
Machine made of SUS304 material (except standard structural parts)
Machine size:850*850*1040mm
specifications
Heating power: 18kw
Mixing power: 0.37kw
Inner diameter: 750mm
Dimension: 850*850*1650mm
2 sets
Material: SS304
specifications
PLC control program is available.
LED touch panel, easy to operate.
Pouring speed and weight are controlled by frequency converter
On - line casting, feeding and premixing techniques for proportionally added liquids.
Molds can be made according to candy samples.
Motor power: 4KW
Heating power: 1.5KW
Refrigeration power: 12kW
Dimensions: 10800*1450*2100mm
Cooling conveyor belt: PVC (food grade)
Case: 304 stainless steel 1.5mm thick
Hopper: 304 stainless steel 1.5mm thickness
Storage hopper and pipe: 304 stainless steel thickness 1.5mm
specifications
Molds made of Aluminum alloy
Outside coated with Teflon
Candy shape and size can be designed
Main technical parameters
