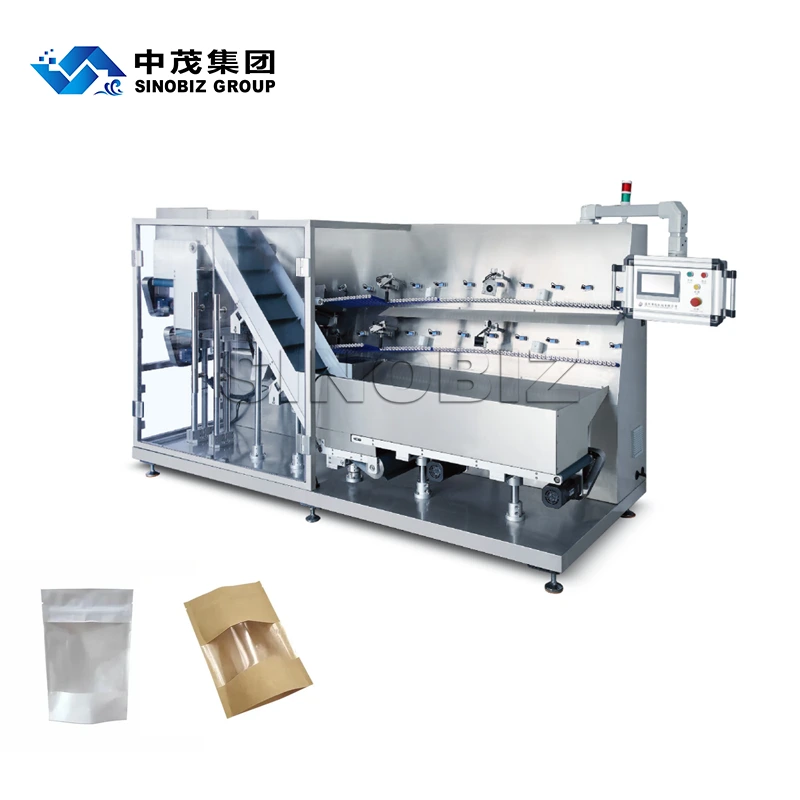

BHLD-500 Dual-Channel Automatic Bagging Machine High-Speed Servo Bag Arrangement Equipment with GMP Compliant
automatic bagging machine
The BHLD-500 Dual-Channel Automatic Bagging Machine is specially designed to meet the high-volume packaging demands of industries such as food and daily chemicals. Integrating storage, feeding, and bag arrangement functions, the equipment adopts a dual-channel design and multi-group servo motor drive, with a maximum bag arrangement speed of 500 bags per minute. Combined with photoelectric sensor feedback for precise speed control, it delivers double bag arrangement efficiency and stably adapts to large-scale production. The whole machine is made of 304 stainless steel, meeting GMP standards, and its sealed structure ensures safe operation and high cleanliness. The large-capacity silo is equipped with a conveyor belt at the bottom, enabling convenient feeding without material residue
features
Dual-Channel High-Speed Servo Drive, Double Efficiency: Innovative dual-channel design paired with multi-group servo motor drive, boasting a maximum speed of 500 bags per minute. The material sorting and conveying speed are accurately controllable, delivering double the bag arrangement efficiency.
Photoelectric Sensing + Servo Control , Stable & Precise Operation: Equipped with a photoelectric sensor feedback system and precise multi-servo control, it achieves fully automatic and orderly arrangement of materials. The bag arrangement speed and sequence are flexibly adjustable, ensuring stable and error-free operation.
GMP-Compliant 304 Stainless Steel Body, Hygienic & Safety Certified: The whole machine is made of food-grade 304 stainless steel, complying with GMP production standards. The sealed structural design ensures operational safety and high cleanliness, with easy cleaning and no dead corners.
Features
Integrated All-in-One Design | Intuitive & Efficient Operation: Integrating storage, feeding, and bag arrangement functions, it features a compact and simple structure that simplifies the production line layout. Controlled by an intelligent multi-servo system, the operation process is simple and easy to master, requiring no complex training for quick deployment, and suitable for rapid deployment in various production scenarios.
Human-Centric Hopper + Flexible Configuration, Versatile Production Compatibility: The large-capacity storage silo design enables convenient and efficient feeding, with a conveyor belt at the bottom of the silo ensuring smooth feeding without material residue. The split conveyor structure allows flexible addition or reduction of bag arrangement stations, supporting single machine independent operation or multi-machine combination, meeting the customized needs of different production scales.
Full-Process Automation, Remarkable Cost Reduction & Efficiency Boost: The stable automated process minimizes material loss and operational errors, helping enterprises achieve cost reduction and efficiency improvement, and promoting the standardization and regularization of packaging production processes.
Main technical parameters
| Model | BHLD-500 |
|
Maximum speed |
500 bags/min (related to the size of the material, to the actual material test speed shall prevail) |
|
Bag Size |
L≤180mm;W≤100mm |
| Total power |
10Kw |
|
Power supplies |
380V 50/60Hz |
|
Overall size |
2600(L)x950(W)x1800(H) |
|
Weight |
1100Kg |
