Sinobiz Machinery Provides One-Stop Turnkey Systems for Supplement & Pharma Manufacturing

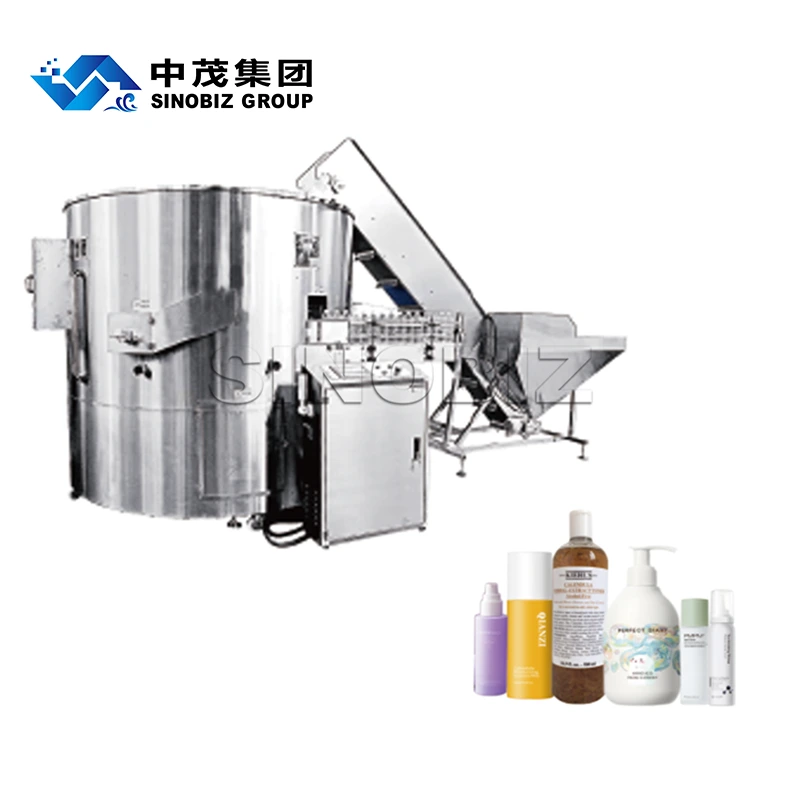

Bottle Trimmer RF-101 105 Simple Structure and Budget-Friendly 1

Bottle Trimmer RF-101 105 Simple Structure and Budget-Friendly 2

Bottle Trimmer RF-101 105 Simple Structure and Budget-Friendly 3

Bottle Trimmer RF-101 105 Simple Structure and Budget-Friendly 4

Bottle Trimmer RF-101 105 Simple Structure and Budget-Friendly 5

Bottle Trimmer RF-101 105 Simple Structure and Budget-Friendly

RF-101 105 Bottle Trimmer Compact Design with Affordable Price

Wide Adaptability & Flexible Connection：Compatible with automatic transmission of round and square bottles; can be connected to labeling machines, filling machines, capping machines, etc., or used as a buffer platform in the middle of the assembly line

Easy Adjustment & Controllable Capacity：Applicable bottle height range: 20MM-150MM (freely adjustable); conveying speed: 30-200 bottles/minute with stepless speed regulation, adapting to different production rhythms

Automatic Bottle Sorting, Labor-Saving & Efficient：Automatically feeds, collects and sorts bottles, significantly reducing labor intensity and improving the overall efficiency of the production line

Simple Structure, Stable & Reliable：Relatively simple structure, stable operation with low failure rate, no complex maintenance required, and more worry-free for long-term use

Cost-Effective & Economical：Budget-friendly price combined with practical functions and stable performance, helping enterprises control equipment investment costs

Two Models Available, Wide Application Scenarios：Two models provided: RF-101 (220V/0.12KW) and RF-105 (380V/6.5KW), adapting to different voltage, capacity and site requirements

Quotation valid period:

6 months

Delivery date:

<30 Days

Payment terms:

T/T

Guarantee period:

1 Year

Inquiry

Write a Review

Bottle Trimmer RF-101/105 simple structure low price

The RF-101/105 Bottle Trimmer is an automated device with a simple structure and high cost-effectiveness, designed specifically for bottle conveying and sorting scenarios. Compatible with the automatic transmission of round and square bottles, the equipment can seamlessly connect to assembly line devices such as labeling machines, filling machines and capping machines, realizing automatic bottle feeding and significantly improving production efficiency. It can also be used as a buffer platform in the middle of the assembly line to effectively shorten the length of the conveyor belt and optimize the workshop layout.

Equipped with flexible adjustment performance, the applicable bottle height range is 20MM-150MM, which can freely adapt to bottles of different specifications. The bottle conveying speed is 30-200 bottles/minute with stepless speed regulation, allowing enterprises to flexibly arrange production according to their production rhythm. Through the collaborative work of the automatic rotation of the turntable and the bottle sorting dial, the equipment can realize automatic feeding, collection and sorting of products, significantly reducing labor intensity. With a simple structure, stable and reliable operation, and a budget-friendly price, it is an economical choice for small and medium-sized enterprises to realize the automation upgrade of assembly lines. Currently, two models are available: RF-101 (220V/0.12KW) and RF-105 (380V/6.5KW), adapting to different voltage and capacity requirements.

features

Wide Adaptability & Flexible Connection: Compatible with the automatic transmission of round and square bottles; can seamlessly connect to assembly line equipment such as labeling machines, filling machines and capping machines to realize automatic bottle feeding. It can also be used as a buffer platform in the middle of the assembly line, effectively shortening the length of the conveyor belt, optimizing the workshop layout, and adapting to multi-scenario production needs.

Free Adjustment & Controllable Capacity:The applicable bottle height range is 20MM-150MM, which can be freely adjusted according to bottles of different specifications. The bottle conveying speed is 30-200 bottles/minute with stepless speed regulation, allowing enterprises to flexibly adjust according to the production rhythm and conveniently arrange production plans.

Automatic Bottle Sorting, Labor-Saving & Efficient: It has the functions of automatic feeding, collecting and sorting products, eliminating the need for manual sorting and arranging. It significantly reduces labor intensity and human input, while improving the overall production efficiency of the assembly line, helping enterprises achieve automatic production upgrading.

machine and products

Bottle Trimmer

Bottle Trimmer

Features

Simple Structure, Stable & Reliable: The overall structure is simply designed without complex redundant components, ensuring stable and smooth operation with a low failure rate. Daily maintenance can be carried out without professional technology, making long-term use worry-free and labor-saving, reducing operation and maintenance costs for enterprises and ensuring production continuity.

Cost-Effective & Economical: With a budget-friendly price, it effectively controls the equipment procurement cost of enterprises while having wide adaptability, stable performance and practical functions. Two models are available to meet different needs of voltage, capacity and site, making it a cost-effective choice for small and medium-sized enterprises to realize automatic production.

Main technical parameters

Model	RF-101	RF-105
Voltage	220V/50HZ	380V
Power speed	0.12KW	6.5KW
Height	20MM-150MM	20MM-150MM
Turntable diameter	800MM	10℃-60℃
Operating temperature	-	-
Dimension	12009001300MM	10357502840MM
Weight	65KG	120KG
