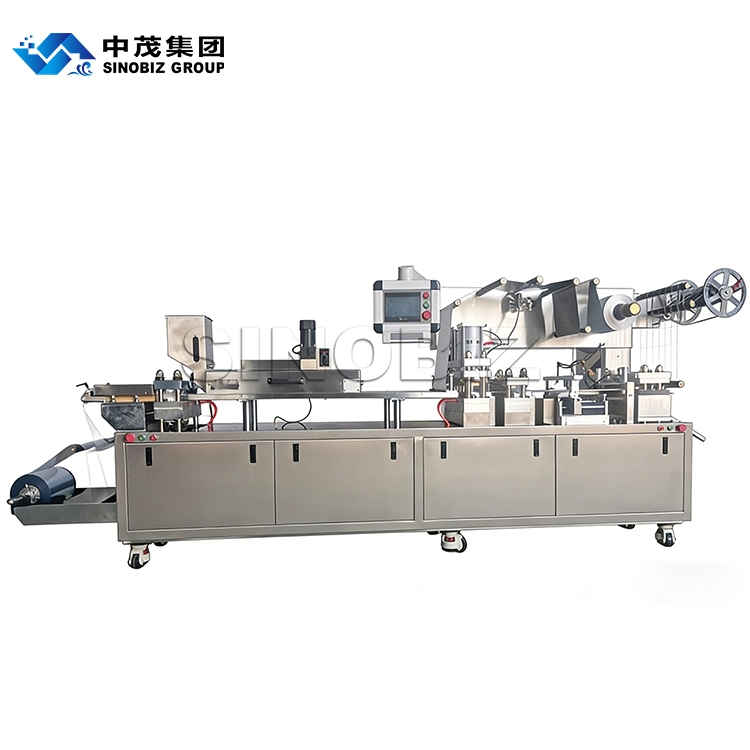

DPP-400B BLISTER PACKING MACHINE
Features
1.With PLC control, touch screen operation, main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2.The travel range can be set in touch screen and the mould with locating slot, it is easy to change the mould and set the travel range, can greatly save the material waste.
3.With servo motor traction and eye marking system, the machine running is more stable and convenient to set the eye marks.
4.Can optional choose different feeders for different products.
5.The sealing cylinder will separate automatically when machine stop, it will not damage the product and extend machine life.
6.Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
Usage
It is suitable for capsule, tablet, big honey pill, candy, liquid (ointment), paste, syringe as well as irregular shape Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Technical parameters
Cutting Frequency (Times/min) | Al-pvc:10-35 Al-al: 10-25 |
Max. Forming Areas And Depth (mm) | 390×150×26 (standard 380×150×14) |
Travel Range (mm) | 40-160 (Can be lengthened to 180mm as user's requirements) |
Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Air Supply | ≥0.3m3/min |
Total Power | 380V/220V 50Hz 9.7kw |
Main Motor Power (kw) | 2.2 |
PVC Sheet (mm) | 0.15-0.5×400 |
PTP Aluminum Foil (mm) | 0.02-0.035×400 |
Dialysis Paper (mm) | 50-100g×400 |
Mould Cooling | Tap Water Or Circulating Water |
Overall Dimensions (mm) | 3300×850×1600(L×W×H) |
Weight (kg) | 2300 |
