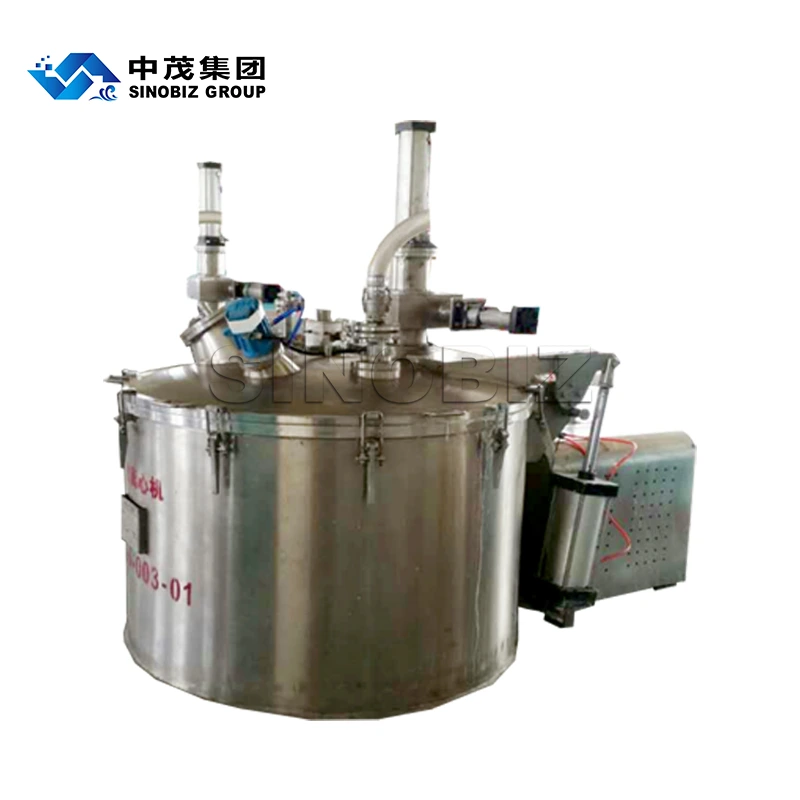

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries 1

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries 2

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries 3

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries 4

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries 5

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries 6

Flat Scraper Centrifuge - GMP-Compliant Closed and Explosion-Proof Solid-Liquid Separation Equipment for Chemical Food Industries

Automatic Bottom Discharging Centrifuge Scraping and Foundation-Free Installation Equipment

GMP-Compliant & Closed Explosion-Proof, Safe for Special Scenarios：Strictly complying with GMP standards and environmental hygiene requirements, it adopts a fully closed structure design to achieve closed explosion-proof function. Specifically developed for separation scenarios of toxic, flammable and explosive materials, it also supports all-round cleaning to ensure safe and clean production processes.

Full-Process Automation, Convenient & Efficient Operation：Controlled by a combination of PLC programmable controller, inverter and hydraulic/pneumatic devices, it supports both manual and automatic operation modes. It can realize full-process automatic unmanned operation of start-up, feeding, dewatering, washing and discharging, greatly reducing labor costs and improving production efficiency.

Foundation-Free Installation & Stable Vibration Reduction, Strong Adaptability：Canceling the traditional suspended legs, it adopts flat plate counterweight + high-viscosity damping vibration isolator design, which can be installed and used without separate foundation. It effectively absorbs vibration, operates stably, and saves site installation costs and space.

Hydraulic Scraping + High-Quality Materials, Clean Separation & Durability：Equipped with a self-designed stainless steel closed hydraulic cylinder scraping system, it can directly contact materials with thorough scraping and no residue. Key components such as the bowl and shell are made of stainless steel, and some components can be optional with corrosion-resistant materials such as titanium and Hastelloy, adapting to high-viscosity and fine-grain materials with long service life.

Multiple Models + Rich Optional Configurations, Meeting Personalized Needs：Covering multiple models such as PGZ800/1000/1250/1600 with an effective volume of 100-820L, it adapts to different production capacity needs.

Quotation valid period:

6 months

Delivery date:

<30 days

Payment terms:

T/T

Guarantee period:

1 Year

Inquiry

Write a Review

Flat type Scraper Bottom Discharging Centrifugee

PGZ Type Flat Scraper Bottom Discharging Centrifuge is a new type of separation equipment developed in strict compliance with GMP standards and environmental hygiene requirements. Originating from China's earliest production base of glass equipment and separation machinery established in 1947, it inherits decades of manufacturing technology and quality accumulation. Innovatively canceling the traditional suspended legs, the equipment adopts a flat plate counterweight and high-viscosity damping vibration isolator design, which can be installed without a separate foundation, effectively absorbing vibration and ensuring stable and reliable operation.

Relying on the combined control system of PLC programmable controller, inverter and hydraulic/pneumatic devices, the equipment supports both manual and automatic operation modes, realizing full-process automatic unmanned operation of start-up, feeding, dewatering, washing and discharging. Equipped with various safety protection functions, it guarantees production safety. Its fully closed structure meets the requirements of closed explosion protection, especially suitable for the separation of high-viscosity, fine-grain, toxic and flammable materials. Key components (bowl, shell, etc.) made of stainless steel and the self-designed hydraulic scraping system ensure thorough scraping without residue, and support all-round cleaning, combining cleanliness and durability.

The product covers multiple models such as PGZ800/1000/1250/1600 with an effective volume of 100-820L, adapting to different production capacity needs. Meanwhile, it offers a variety of optional configurations including CIP, nitrogen protection and touch screen control, which can be flexibly customized according to material characteristics. Widely used in chemical, food, light industry, environmental protection and other industries, it is an ideal choice for industrial solid-liquid separation that combines safety, efficiency, cleanliness and flexibility.

Flat type Scraper Bottom Discharging Centrifugee1

standard configuration

Transmit: Vertical normal (or explosion-proof) motor+normal (or anti-static and flameretardant) "V"belt+PLC+inverter+dynamicbraking

Structure: The shell was welded with flatplatform together as entire one, the shell coverand body were connected by fast-open flangestructure, the shell cover open was achievedby hydraulic cylinder and equipped with fillingpipe, washing pipe, window hole, scraperdevice, lighting hole, etc.

Material of construction: bowl bottom,bearing seat, machine platform are made ofcarton steel or cast steel which covered bystainless steel; the bowl, shell, cover andfastener spares are made of stainless steel.

Electrical control cabinet and on-siteoperation cabinet

Hydraulic scraper.

Others: Damping vibration isolator,protection cover of motor belt and wheel.

Optional Configuration

CIP.

Vibration protection device.

N2 protection system, online oxygencontent determination.

Cover open protection device.

Contact type and non-contact type materialfeeding controller.

Outlet sealing device, N2 exhaust outlet.

Oblique feeding device.

Touch screen control.

Pneumatic, electrical, manual scrapingdevice.

For anti-corrosive purpose, differentmaterials would be equipped such as: stainless steel SUS304, 321, 316, 316L, titanium,Hastelloy, the surface which contact with raw material could be lined with rubber, plastic(PE),teflon(PTFE), Halar, and etc.

Pneumatic, electrical assistant coveropen.

Half-open cover, flat cover.

SchematicDiagramOf Working Process

Flat type Scraper Bottom Discharging Centrifugee5

Flat type Scraper Bottom Discharging Centrifugee6

Features

Closed & Explosion-Proof Structure, Safe for Special Scenarios: Adopts a fully closed structure design to achieve closed explosion-proof function. Specifically developed for the separation of toxic, flammable and explosive materials, it effectively avoids potential production safety risks and meets the usage requirements of high-risk working conditions.

PLC Intelligent Control, Full-Process Automation: Controlled by a combination of PLC programmable controller, inverter, braking resistor and hydraulic/pneumatic devices, it supports both manual and automatic operation modes. It can realize full-process automatic unmanned operation of start-up, feeding, dewatering, washing and discharging, featuring convenient and efficient operation.

Foundation-Free Installation Design, Vibration Reduction & Stability: Canceling the traditional suspended legs, it adopts flat plate counterweight + high-viscosity damping vibration isolator design, which can be quickly installed without a separate foundation. It effectively absorbs operating vibration, ensures stable operation of the equipment, and saves installation space and costs.

Hydraulic Scraping System, Clean Scraping Without Residue: Equipped with a self-designed stainless steel closed hydraulic cylinder scraping system, it can directly contact materials. The scraping force is uniform and thorough with no material residue, ensuring the drum is clean after separation. Meanwhile, the stainless steel material is corrosion-resistant and easy to clean.

Features

GMP-Compliant Design, Clean & Easy to Clean: Strictly complying with GMP standards and environmental hygiene requirements, the equipment structure is conducive to all-round cleaning without dead corners. It can effectively avoid material cross-contamination, ensure the cleanliness of the production process, and adapt to industries with strict hygiene requirements such as food.

Full Coverage of Multiple Models, Wide Adaptability: Covering multiple models such as PGZ800/1000/1250/1600, with an effective volume of 100-820L and a maximum processing capacity of 1000L, it can adapt to production needs of different capacity scales and meet material separation tasks from small batches to large-scale production.

High-Quality & Diverse Materials, Corrosion-Resistant & Durable: Key components such as the drum and shell are made of stainless steel, while the drum bottom and bearing seat are made of carbon steel/cast iron wrapped in stainless steel. According to the anti-corrosion requirements of materials, optional materials such as SUS304/321/316/316L stainless steel, titanium and Hastelloy are available, adapting to various corrosive materials.

Rich Optional Configurations, High Customization: It offers a variety of optional configurations including CIP, nitrogen protection, touch screen control and vibration protection. It also supports customized options such as pneumatic/electric assisted cover opening and oblique feeding device, which can be flexibly adapted to different material characteristics and production scenarios.
