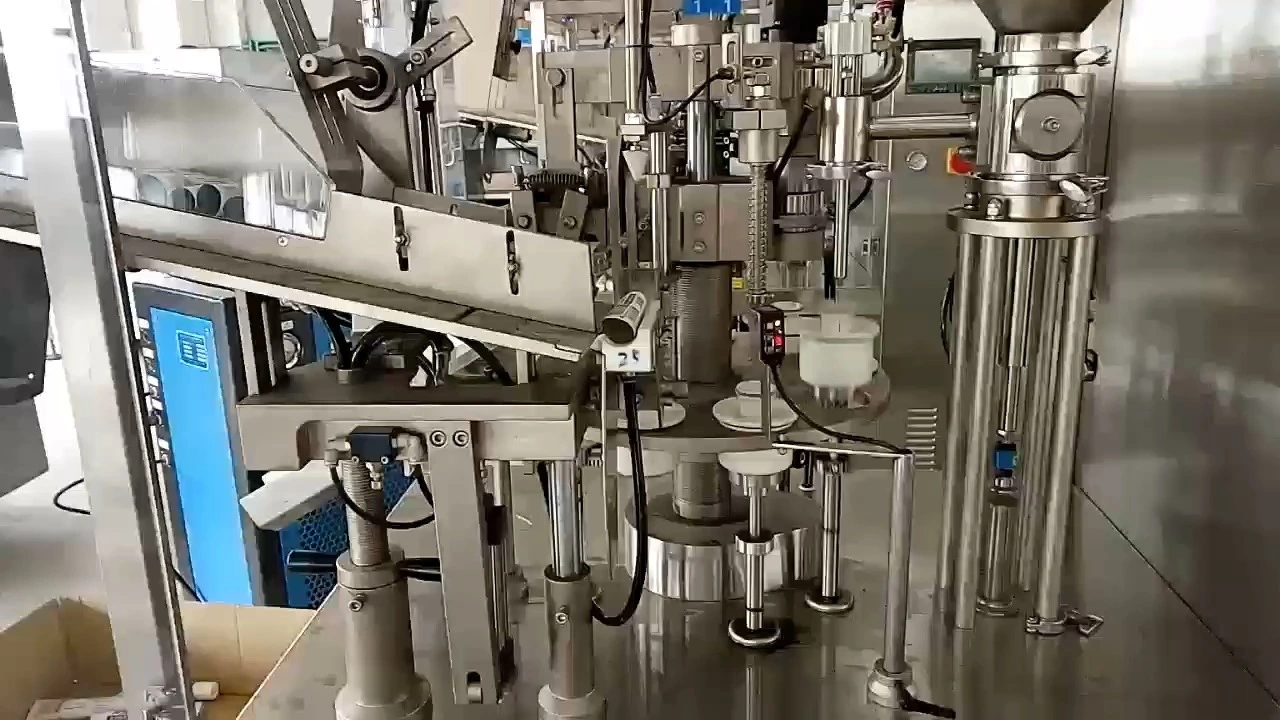

NF-60A Automatic plastic/laminated tube filling & sealing machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, hot air sealing, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Introduction
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of
Product features
■ This Product have 9 stations, can choose different station and equip corresponding manipulator to meet different type of sealing
■ Tube feeding, eye marking,material filling, sealing, batch number printing, finished products discharging can be performed automatically
■ Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system,
Product features
■ The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
■ Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if
Technical parameters
| Power Supply | 50Hz/220V 3P |
| Main Motor | 1.1KW |
| Operation Speed | 30-50/min/ |
| Filling Range | Plastic/laminated tube 3-250ml |
| Suitable Tube Length | Plastic/laminated tube 50-210mm |
| Suitable Tube Diameter | Plastic/laminated tube 13-50mm |
| Working Pressure | 0.5-0.7MPa |
| Overall Dimensions (mm) | 1950×1000×1800mm（L×W×H） |
| Weight (kg) | 850 |
Mechanical Images
