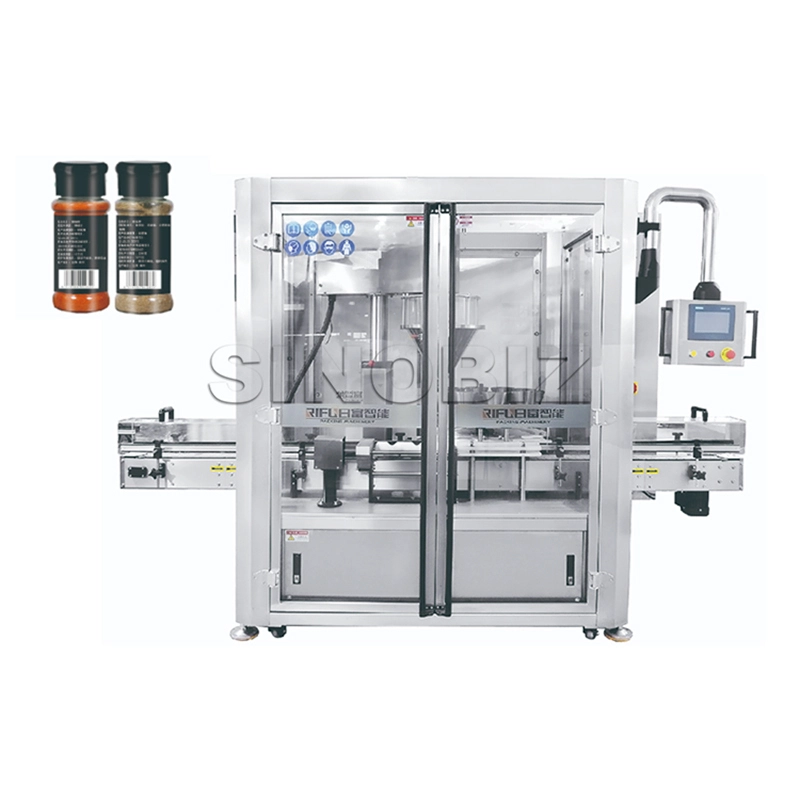

Rotary Powder Filling Machine GMP standard RF-FJ-100
The automatic filling machine is designed according to the national GMP standard. It can form an assembly line with bottle sorting machine, capping machine, labeling machine and other equipment. It is suitable for canned powder materials in food, medicine, daily necessities and other industries.
Such as milk powder, condiment, talcum powder, flour, medicine powder, tooth powder, milk tea powder, pearl powder, nutrition powder, meal substitute powder, pesticide, monosodium glutamate, etc. The main body of the machine is made of 304 stainless steel. Motors, cylinders, electrical accessories, pneumatic components, etc. all choose well-known brands, which can also be designated by customers.
Features
Features
Fully sealed glass and stainless steel side open composite material box, the movement and static of materials are clear at a glance, and the dust does not leak out. The material box is equipped with dust filtering device, and the filling accessories are equipped with dust removal system to protect the workshop environment.
Chain plate conveyor belt conveys packaging containers, screw distribution and positioning, with a high degree of automatic
Specification
Rotary powder filling machine RF-FJ-100 Meets the national GMP standard and can pass the national food hygiene certification
|
Model |
RF-FJ-100 |
|
Adaptation Specification |
10-500g adjustable(shift screw attachment) |
|
Filling speed |
40-80 cans/min(depending on material and filling capacity) |
|
Metering error |
±0.5% |
|
Power supply |
380v 50Hz |
|
Power |
5kw |
|
Contour dimension |
800kg |
Detail photos
