Automatic capping machine for plastic and glass bottle use
Automatic capping machine
Machine Description

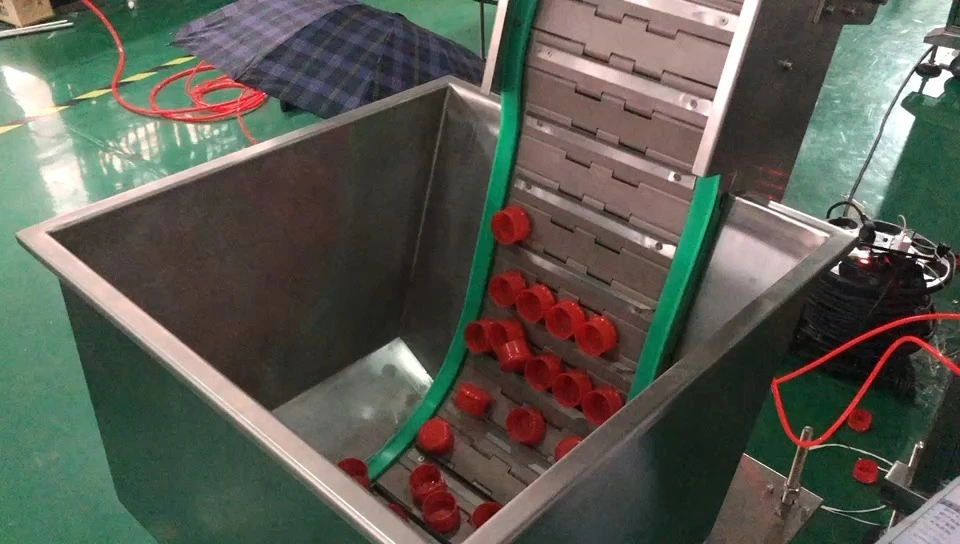

The SNGX fully automatic capping machine is designed for the food and cosmetics industries. The fully automatic capping machine consists of a lifting cap, a arranging cap, a capping, a conveying and a rejection mechanism for unqualified products. The bottle is automatically capped after entering the workstation. The capping machine clamps the bottle by a bottle clamping mechanism and then feeds it into the capping mechanism to tighten the cap. The bottle clamping belt and friction wheel are made of special materials, which not only ensures the durability of the equipment, but also ensures that the bottle and the cap will not be damaged.
Machine Specifications
|
Items
|
Parameters
|
|
Model
|
SNXG Automatic capping machine with cap feeder
|
|
Capacity
|
30-120 BPM
|
|
Cap diameter
|
Φ30-Φ80mm (Customized)
|
|
Bottle diameter
|
Φ30-Φ120mm
|
|
Bottle height
|
50-200mm
|
|
Power supply
|
1P 220V 50/60HZ
|
|
Power
|
1.3KW
|
|
Air pressure
|
0.4-0.6MPA
|
|
Air comsuption
|
0.5m³/M
|
|
Machine Weight
|
550kg
|
|
Machine Dimension
|
2100×850×1600mm
|
Machine Features
Machine Details
