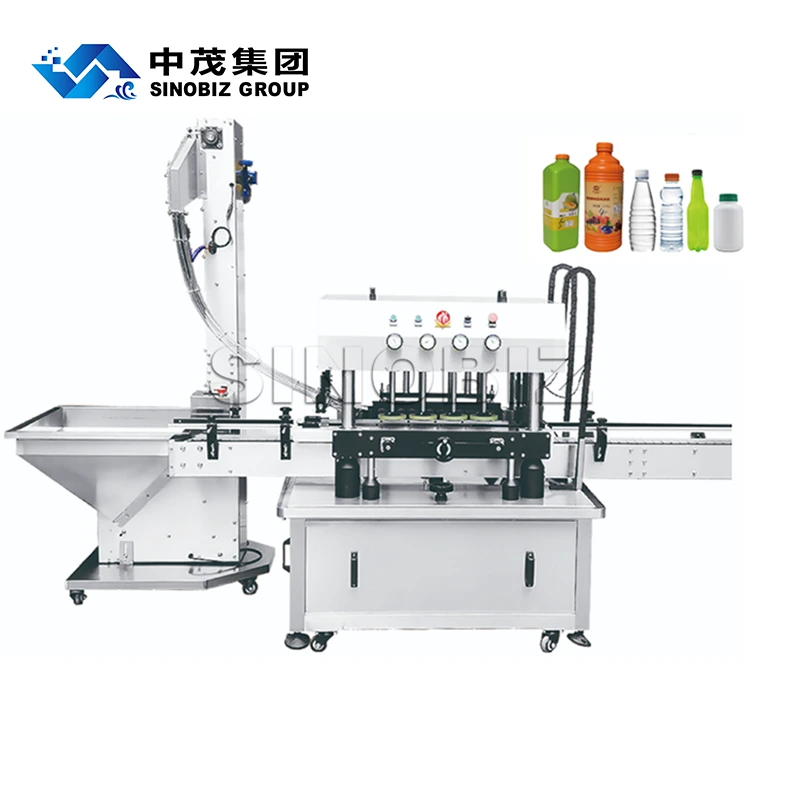

Intelligent Torque Control and Easy Operation Straight Line High Speed Capping Machine
Straight Line High Speed Capping Machine RF-140 intelligent in mechanical torque control and convenient in operating and adjustment
The RF-140 Straight Line High Speed Capping Machine is an automatic capping equipment optimized and designed based on internationally advanced models. With core advantages of intelligent torque control, high efficiency, stability and easy operation, it is widely applicable to the screw cap sealing needs of different bottle types in food, daily chemical, pesticide and other industries.
The equipment features a high degree of automation, equipped with four independent speed-adjusting motors that precisely control the four core processes of cap feeding, bottle clamping, conveying and capping respectively. Combined with the optional vibrating bowl automatic cap feeding device, automatic cap feeding can be completed during bottle conveying, and then the caps are automatically tightened by four sets of cap rubbing wheels. The capping speed is fast with a high pass rate, and the capacity can reach 40-140 bottles per minute, fully adapting to high-speed large-scale production.
The product has strong flexibility and adaptability, suitable for bottle heights of 38-300mm, bottle diameters of 35-140mm and cap diameters of 15-120mm. Changing bottle types or caps does not require replacing parts, and quick adaptation can be achieved with only simple adjustments; the automatic cap feeding system offers multiple options such as lifting type, swash plate type and vibration type, which can be flexibly matched according to actual production needs. Meanwhile, the equipment is made of 304 stainless steel, complying with GMP standards to ensure hygiene and safety; it supports independent operation or linkage with other production lines, featuring an attractive appearance and convenient maintenance, making it an ideal choice for efficient capping in various industries.
features
Intelligent Torque Control with Easy Operation and Adjustment: Equipped with an intelligent mechanical torque control system, the capping force is precisely controllable, ensuring the tightness and consistency of sealing. The equipment has a simple operation process and flexible adjustment, which can be mastered without complex training, significantly reducing operation difficulty and labor costs.
High-Speed and Efficient Capping with High Pass Rate: Optimized and designed based on internationally advanced models, it is equipped with four sets of cap rubbing wheels to automatically tighten caps, featuring fast capping speed and a capacity of 40-140 bottles per minute. The equipment operates stably with a high capping pass rate, fully meeting the needs of high-speed large-scale production.
Multi-Specification Adaptation with Strong Versatility: Suitable for bottle heights of 38-300mm, bottle diameters of 35-140mm and cap diameters of 15-120mm, it is compatible with screw caps of different bottle types in food, daily chemical, pesticide and other industries. Changing bottle types or caps does not require replacing parts, and quick adaptation can be achieved with only simple adjustments, improving production flexibility.
machine and products
Features
High-Automation Configuration for Diverse Scenarios: Equipped with four independent speed-adjusting motors that control cap feeding, bottle clamping, conveying and capping processes respectively, featuring a high degree of automation. It supports automatic cap feeding via a vibrating bowl (optional), and the automatic cap feeding system also offers multiple options such as lifting type, swash plate type and vibration type, which can be matched according to actual needs. The equipment can operate independently or be linked with other production lines, adapting to different production layouts.
Compliant, Durable and Quality-Assured: The main body of the equipment and parts in contact with materials are made of 304 stainless steel, complying with GMP standards and meeting the strict hygiene and safety requirements of food, and other industries. The equipment has an attractive appearance, stable and reliable structure, low failure rate during long-term operation and economical maintenance costs.
Main technical parameters
|
Model |
RF-140 |
|
Supply power(V/H-Z) |
AC 220V/50HZ 110/60 |
| Bottle height(mm) |
38-300 |
|
Applicable cap diameter(mm) |
15-120 |
|
Applicable bottle diameter(mm) |
35-140 |
|
Capacity(bottles/min) |
40-140 |
|
Dimension(L*W*H)(mm) |
2000*870*1500 |
|
Weight(kg) |
350 |
