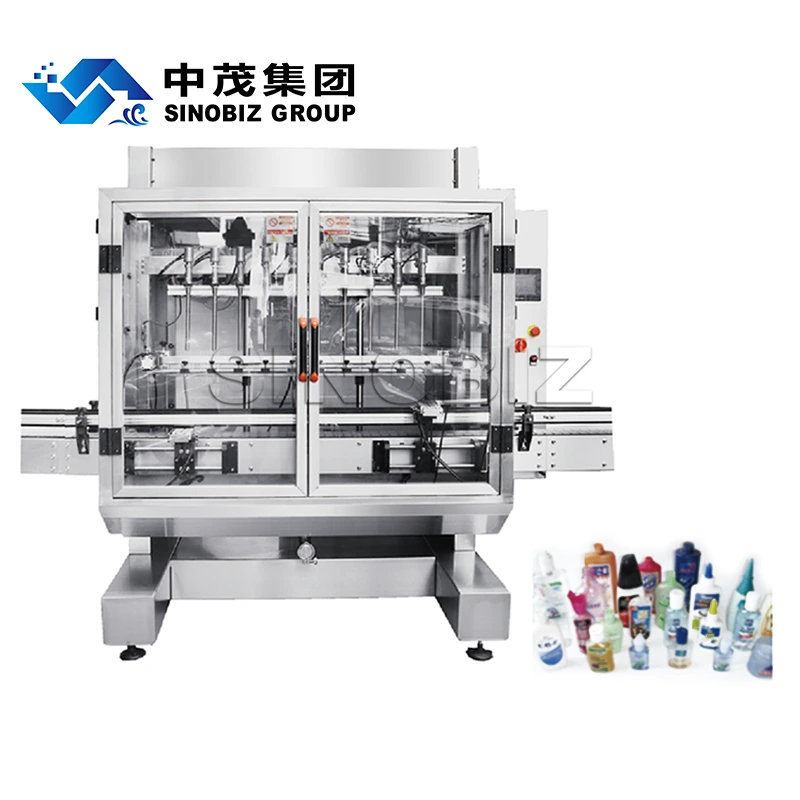

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 1

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 2

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 3

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 4

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 5

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 6

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 7

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 8

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient 9

Automatic Liquid Filling and Packing Machine RF-GZL-6L 8L 10L 12L High-Capacity and Efficient

RF-GZL-6L 8L 10L 12L Fully Automatic Liquid Filling Packing Machine Versatile Capacity Options

Precise Filling, Controllable Measurement: Adopts PLC programming + pneumatic valve control; filling time can be accurately set to 0.01 seconds, with measurement error strictly controlled within ±1%

Leak-Proof & Clean, No Bubbles & Dripping: Equipped with internationally advanced gas filling valves, ensuring no bubbles, no leakage and no dripping during filling, protecting product packaging cleanliness and material purity

Multiple Models Available, Capacity-Adaptable: Four models provided: RF-GZL-6L/8L/10L/12L, with filling speed of 20-60 bottles/minute (based on 100-500ml), adapting to different capacity needs on demand

Flexible Adaptation, Easy Product Changeover: Suitable for 50-1000ml filling range, compatible with bottles, pots and other container types

No additional spare parts required for changing filling specifications; completed with simple adjustments, short changeover cycle, adapting to multi-category production

Intelligent Operation, Easy to Master: Color touch screen HMI, intuitively displaying production status, operating procedures, filling methods and other information

Safety Protection, Avoid Misoperation: Built-in intelligent program of "no bottle no filling, count matching"; filling starts only when the number of bottles recorded by the counter matches the set number, effectively avoiding misoperation

Quotation valid period:

6 months

Delivery date:

<30 Days

Payment terms:

T/T

Guarantee period:

1 Year

Inquiry

Write a Review

Packing Machine Automatic Liquid Filling Machine RF-GZL-6L/8L/10L/12L

The RF-GZL-6L/8L/10L/12L Fully Automatic Liquid Filling & Packing Machine is a high-tech filling equipment integrating microcomputer (PLC) programming, photoelectric sensing and pneumatic execution. Specifically designed for filling edible liquids in the food industry (liquor, soy sauce, vinegar, condiments, vegetable oil, syrup, mineral water, etc.) as well as pesticides and chemical liquids, the equipment combines multiple advantages such as precise filling, no bubbles, no leakage, high efficiency and flexibility, making it an ideal choice for large-scale and automated filling in various industries.

The equipment boasts excellent filling performance. It uses fixed flow channel parameters to control filling time, with the pneumatic valve filling accuracy up to 0.01 seconds and the measurement error strictly controlled within ±1%. Each filling head supports individual measurement adjustment to ensure consistent filling volume across multiple bottles, effectively reducing material waste. Every filling head is equipped with an internationally advanced gas filling valve, ensuring no bubbles, no leakage and no dripping during the filling process, thus protecting the cleanliness of product packaging and materials.

It also excels in adaptability and operability: supporting a filling range of 50-1000ml, it is compatible with bottles, pots and other types of containers. No additional spare parts are required for changing filling specifications; product changeover can be completed within a few minutes with simple adjustments, meeting the needs of multi-category production. Equipped with a color touch screen human-machine interface, it intuitively displays production status, operating procedures, filling methods and other information. Full touch operation allows quick mastery without professional skills, facilitating easy maintenance. Meanwhile, it has a built-in intelligent program of "no bottle no filling, count matching", which starts filling only when the number of bottles recorded by the counter matches the set number, avoiding misoperation. Currently, four models are available with a filling speed of 20-60 bottles per minute (based on 100-500ml), which can be flexibly selected according to production capacity needs. It also supports customized filling range, speed and number of filling heads to fully match personalized production scenarios.

Packing Machine Automatic Liquid Filling Machine

features

Precise Filling, High Measurement Accuracy: Adopts PLC programming + pneumatic execution control, regulating filling time through fixed flow channel parameters. The filling accuracy of the pneumatic valve can reach 0.01 seconds, with measurement error strictly controlled within ±1%. Each filling head supports individual measurement adjustment to ensure consistent filling volume across multiple bottles, effectively reducing material waste and improving enterprise economic benefits.

Leak-Proof & Bubble-Free, Clean Filling: Each filling head is equipped with an internationally advanced gas filling valve, eliminating bubbles, leakage and dripping during filling from the source. It not only ensures clean materials without loss, but also maintains a neat and attractive product packaging, enhancing the texture of end products.

Flexible Adaptation, Efficient Product Changeover: Suitable for a filling range of 50-1000ml (the document mentions compatibility with 50-500ml, 100-1000ml, 500-5000ml multiple ranges, subject to the specification table), compatible with bottles, pots and other types of containers. No additional spare parts are required for changing filling specifications; product changeover can be completed within a few minutes with simple adjustments, significantly shortening downtime and adapting to multi-category production needs.

machine and products

Packing Machine Automatic Liquid Filling Machine

Packing Machine Automatic Liquid Filling Machine Products

Features

Intelligent Operation, Convenient & Worry-Free：Equipped with a color touch screen human-machine interface, it intuitively displays key information such as production status, operating procedures and filling methods. All operations are completed through touch control, with a clear interface logic and simple operation, allowing quick mastery without professional skills. The equipment maintenance process is simple, reducing personnel training and operation and maintenance costs.

Multiple Models Available, Capacity-Adaptable：Four models are available: RF-GZL-6L/8L/10L/12L, with filling speeds of ≤30/40/50/60 bottles/minute (based on 100-500ml). Parameters such as power and gas consumption are gradient-adaptable with models. Enterprises can flexibly choose according to their own production capacity needs, accurately matching production scenarios of different scales.

Intelligent Protection, Safe & Reliable：Built-in intelligent program of "no bottle no filling, count matching", filling starts only when the number of bottles recorded by the counter matches the set number of filled bottles. It effectively avoids problems such as misfilling without bottles and counting deviations, improves the safety and stability of the production process, and reduces unnecessary material loss.

Main technical parameters

Model	RF-GZL-6L	RF-GZL-8L	RF-GZL-10L	RF-GZL-12L
Filling range	50-1000ml	50-1000ml	50-1000ml	50-1000ml
Filling Speed	<30 bottles/min(base on 100-500ml	<40 bottles/min(base on 100-500ml	<50 bottles/min(base on 100-500ml	<60 bottles/min(base on 100-500ml
Measurement	±1%	±1%	±1%	±1%
Power	1kw 220v	1.2kw 220v	1.2kw 220v	1.5kw 220v
Working air pressure	6-7kg/cm²	6-7kg/cm²	6-7kg/cm²	6-7kg/cm²
Gas consumption	0.5-0.7m³/min	0.5-0.8m³/min	0.6-0.9m³/min	0.8-1m³/min
Weight	450kg	500kg	550kg	600kg
