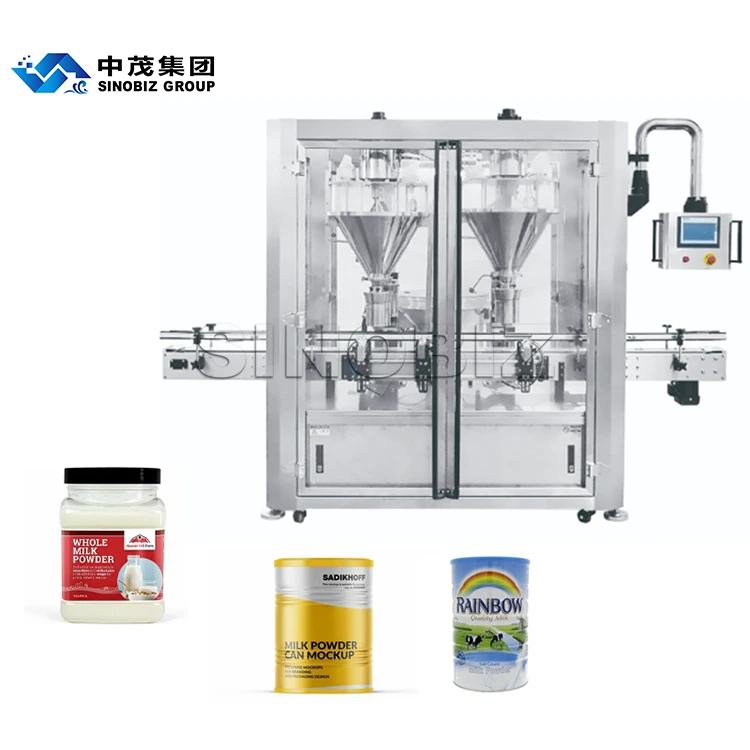

Automatic screw metering filling machine LY-GEF-50D all stainless steel structure and easy to clean
This series machine is a new-designed that we make it on placing the old
Turnplate Feeding on one side.Dual auger filling within double lines main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line.This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.
All stainless steel structure; horizontal open type material hopper, easy to clean.Servo motor and servo drive control screw;servo control turntable work, peLYormance is stable.Adopt reliable PLC control, accurate servo system, professional screw metering, high-end weighing system, international brand electrical appliances, ensure the machine can continuous working 24 hours a day.Equipped with a reasonable handwheel to adjust the height of the machine.Weight selection device, to ensure each product is qualified.A variety of product adjustment parameters can be stored,Store up to 10 formulations.Replace spiral
Product Introduction
This series machine is a new-designed that we make it on placing the old
Turnplate Feeding on one side.Dual auger filling within double lines main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line.This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.
It's easy to operate
All stainless steel structure; horizontal open type material hopper, easy to clean.Servo motor and servo drive control screw;servo control turntable work, peLYormance is stable.Adopt reliable PLC control, accurate servo system, professional screw metering, high-end weighing system, international brand electrical appliances, ensure the machine can continuous working 24 hours a day.Equipped with a reasonable handwheel to adjust the height of the machine.Weight selection device, to ensure each product is qualified.A variety of product adjustment parameters can be stored,Store up to 10 formulations.Replace spiral accessories, can adapt to ultra-fine powder to small particles and other materials.
machine details
specification
Model | LY-GEF-50D |
Container Size | 30-160mm, H50-260mm Meral cans, glass jars, plastic cans, paper canisters, etc. |
Filling Weight | 10-5000g |
Filling Accuracy | ≤500g,≤±1%; >500g, ≤±0.5% Depend on the feature of product |
Filling Speed | 20-40 bottles/min |
Power | 3P AC208-415V 50/60min |
Air Supply | 6kg/cm2 0.05m/3/min |
Total Power | 2.3Kw |
Total Weight | 350kg |
Hopper Volume | 200*1070*2120mm |
Hopper Volume | 50L |
