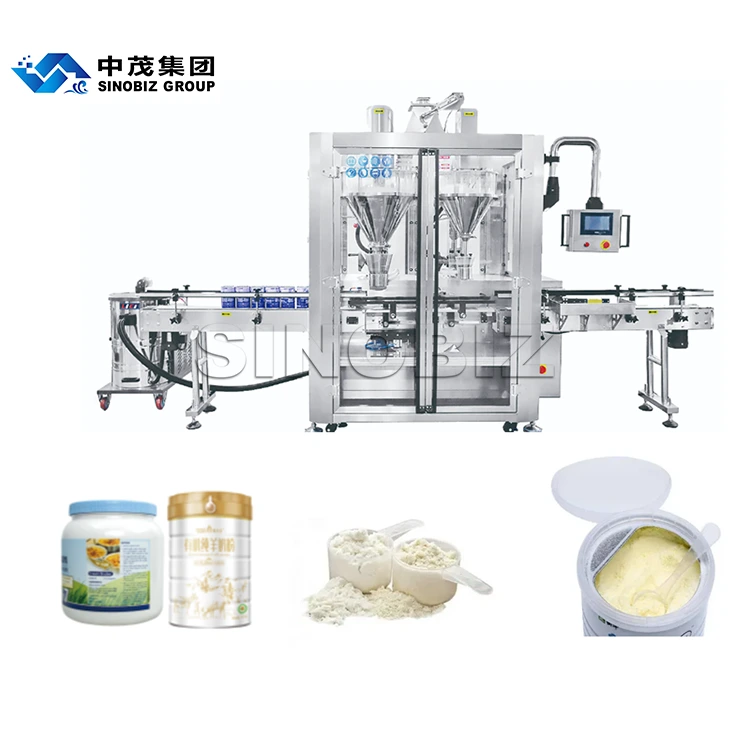

Automatic Screw Metering Filling Machine (weight) LY-GEF-50D
Product Introduction
Automatic cans entry →Accurate positioning →Support tank →Vibrating →Filling→Weighing feedback (optional)→Cans out,Can be matched with other equipment to form a complete set of canned assembly line. Suitable for filling eye shadow powder, sparkle powder, pepper powder, pepper powder, milk powder, rice powder, protein powder, soybean milk powder, chicken powder, coffee powder, medicine powder, additive, flavor, etc.
Can-up and horizontal transmitting is controlled by servo and pneumatic
system,be more accurate, more speed. Servo motor and servo driver control the screw, keep stable and accurate Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily. PLC & touch screen make it be easy of operation. Fast-respond weighing system make the strong point to real The filling head is equipped with a hand wheel to adjust the height, which can easily realize a variety of tank types. Dust-collecting cover meet the pipeline and protect environment to pollution. Horizontal straight design make the machine in little area Settled screw setup make no metal pollution in producing.
Product Introduction
Automatic cans entry →Accurate positioning →Support tank →Vibrating →Filling→Weighing feedback (optional)→Cans out,Can be matched with other equipment to form a complete set of canned assembly line. Suitable for filling eye shadow powder, sparkle powder, pepper powder, pepper powder, milk powder, rice powder, protein powder, soybean milk powder, chicken powder, coffee powder, medicine powder, additive, flavor, etc.
COMPANY STRENGTH
Can-up and horizontal transmitting is controlled by servo and pneumatic
Process: can-in → can-up → vibration → filling → weighing&tracing
sample
specification
Model | LY-GEF-50D |
Container Size | 30-160mm, H50-260mm Meral cans, glass jars, plastic cans, paper canisters, etc. |
Filling Weight | 10-5000g |
Filling Accuracy | 100-500g,≤±1%; >500g, ≤±02g |
Filling Speed | 35 cans/min |
Power | 3P AC208-415V 50/60Hz |
Air Supply | 6kg/cm2 0.2cbm/min |
Total Power | 3.4Kw |
Total Weight | 1000kg |
Hopper Volume | 3000*1200*2100mm |
Hopper Volume | 50L |
