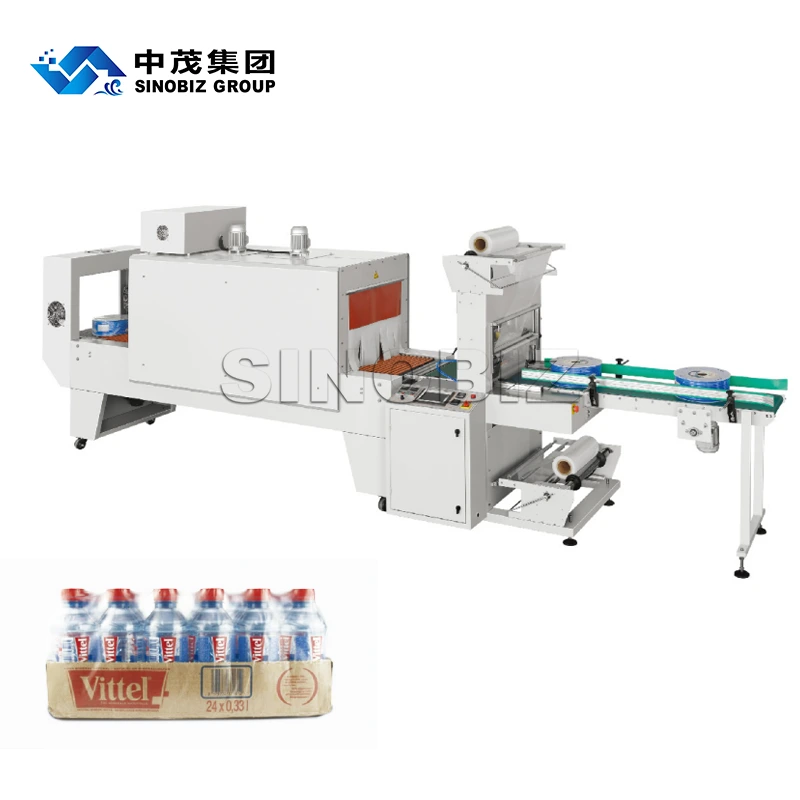

BMD-800B Automatic Sleeve Sealing and Shrink Packing Machine High-Speed PE Film Sleeve Wrapping and Shrinking Equipment
Automatic Sleeve Sealing& Shrink Packing Machine
The BMD-800B Automatic Sleeve Sealing & Shrink Packing Machine is specially designed for high-volume bulk packaging scenarios such as beverages, food gift boxes, and daily chemical products. Adopting a dedicated sleeve-type sealing and cutting system, the equipment integrates the entire process of sleeve wrapping, sealing, and shrinking, efficiently replacing manual sleeve feeding and meeting the bulk packaging needs of products like bottled beverages and gift box sets. The core configuration features U-shaped alloy steel sealing knives with anti-stick Teflon coating, ensuring smooth, burr-free sealing edges without sticking. The easy-to-replace design significantly reduces maintenance costs. Equipped with a Siemens color touch screen + PLC control system and an Omron temperature controller, the machine offers intuitive and convenient operation, enabling precise adjustment of key parameters such as sealing temperature and conveying speed to suit products of different specifications.
features
Cuff-style integrated sealing and cutting, suitable for full-package packaging: Adopts a dedicated sleeve-type sealing and cutting system, which automatically completes integrated sleeve wrapping and cutting for bulk products. It eliminates the need for manual sleeve feeding, efficiently meets the bulk packaging demands of whole cases of beverages, food gift boxes, daily chemical sets, etc.
High-speed variable-frequency operation, stable and adaptable to high-volume mass production: Combined with an intelligent variable frequency control system, it can flexibly match operating parameters according to product specifications, ensuring stable and smooth operation without jamming, film deviation or missing sealing. It perfectly meets the demands of large-batch continuous production in food, beverage and other industries.
Compatible with large-size products; highly flexible production capacity: With flexible adjustable parameters, it supports single machine operation or production line integration, offering strong flexibility for multi-specification and multi-category production scenarios.
Features
High-end configuration control, convenient and efficient for easy operation: The convenient parameter storage and one-click recall functions ensure a high degree of automation, allowing beginners to operate quickly without complex training and reducing the equipment operation threshold.
Durable sealing & cutting configuration, low maintenance and low loss: The surface is coated with Teflon anti-stick coating to effectively prevent PE film adhesion and ensure smooth, burr-free cutting edges. The easy-to-replace design of the sealing knife, combined with a sealed structure, facilitates daily maintenance, greatly reducing the loss cost of vulnerable parts and equipment downtime.
Excellent compatibility with PE film; strong dustproof, moistureproof and protection:Specially adapted to PE heat-shrinkable film, the finished packaging is tightly fitted to products with good sealing and aesthetics. It effectively prevents dust, moisture and scratches, improves the safety of products during storage and transportation, and is widely suitable for bulk packaging needs of multiple industries such as food, beverages, daily chemicals and gifts.
Main technical parameters
|
Model |
BMD-800B |
|
Sealing type |
sleeve sealing |
|
Power supply |
380V/50-60Hz/3phas |
|
Max product size |
420(L)x350(W)x300(H)mm |
|
Packing capacity |
8-18 packs per minute |
|
Film type |
polyethylene(PE)film |
|
Max film size |
600x280mm(width)x(outer diameter) |
|
Power consumption |
max.20.5kw |
|
Tunnel oven size |
entrance 1800(L)x600(w)x400(H)mm |
|
Tunnel conveyor speed |
variable, controlled by freguency converter |
|
Tunnel conveyor |
chains with silicon coated rods |
|
Working height |
850-900mm |
|
Air pressure |
<0.5MPa(5 bar) |
|
Sealing system |
Durable"U"shape alloyed sealing knife and sawteeth cutting knife with anti-stick teflon coats |
|
Operating panel |
Siemens colorful touch screen, PLc,omron temperature controller |
|
Machine material |
carbon steel |
|
Weight |
700kg |
