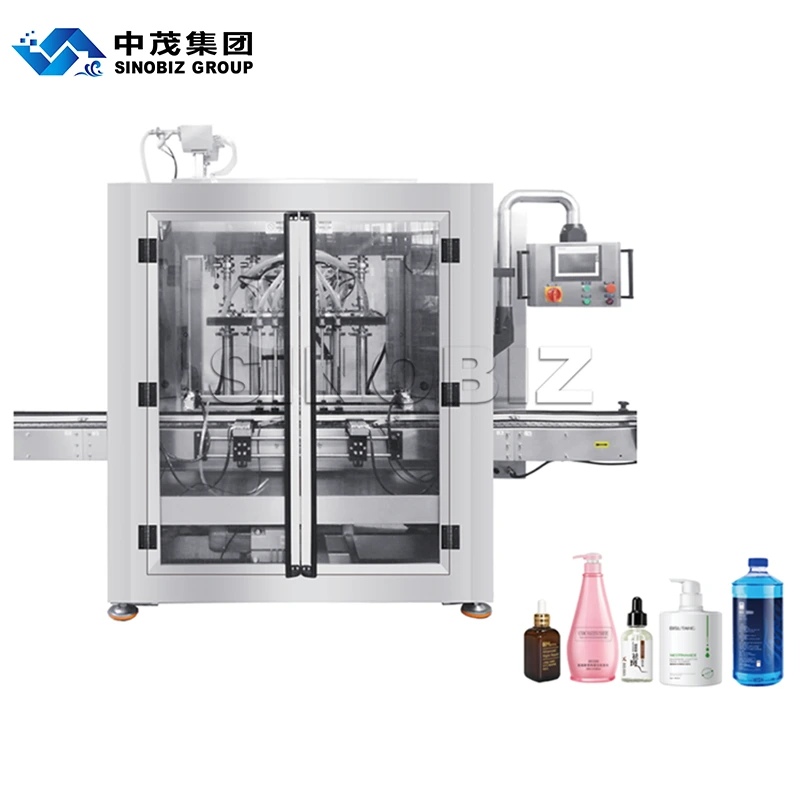

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 1

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 2

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 3

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 4

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 5

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 6

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 7

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 8

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control

Name: Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer prog...
Brand: Sinobiz Machinery

Constant Level Filling Machine High-Tech Equipment with Microcomputer Programmable Control

High Precision & Efficiency, Accurate Measurement: Filling accuracy is controlled within a ±1% error range, and the filling time of the pneumatic valve can be precise to 0.01 seconds. Equipped with internationally advanced leak-proof and drip-proof pneumatic control filling valves, it achieves bubble-free and drip-free filling. Each filling head can independently fine-tune the measurement, ensuring consistent filling of multiple bottles and reducing material loss.

Intelligent & Convenient, Worry-Free Operation：Integrates microcomputer programmable control, photoelectric sensing, and pneumatic actuation technology. The color touchscreen intuitively displays production status, operation processes, and filling methods, enabling full-process touch control. No additional spare parts are required, and switching between filling specifications can be completed within minutes, with simple maintenance.

Flexible Adaptability, Multi-Scenario Compatibility：Supports multi-capacity filling of 50-5000ml (including special-shaped bottles) and is suitable for various liquids such as Baijiu, soy sauce, edible oil, and pesticide chemical liquids. The linear bottle infeed and outfeed design is compatible with containers of various shapes. Multiple models with 6-12 heads are available, with a filling speed of 30-60 bottles/minute (based on 100-500ml), matching production capacity on demand.

Stable & Reliable, Safe & Controllable：Equipped with a powerful PLC software and a user-friendly human-machine interface, along with a bottle neck positioning device to ensure accurate alignment of liquid injection. Features no-bottle no-filling and counting-matched filling functions to avoid waste caused by misoperation. Core components offer stable performance, and the linear structure facilitates functional expansion, adapting to large-scale production needs.

Quotation valid period:

6 months

Delivery date:

<30 Days

Payment terms:

T/T

Guarantee period:

1 Year

Inquiry

Write a Review

Constant Level Filling Machine RF-GZL-6L/8L/10L/12L

The RF-GZL-6L/8L/10L/12L Constant Level Filling Machine is a high-tech filling equipment integrating microcomputer programmable control, photoelectric sensing, and pneumatic actuation technology. Specifically designed for filling scenarios in the food industry (such as Baijiu, soy sauce, edible oil, mineral water, etc.) and pesticide chemical liquid sector, it takes "precision, intelligence, flexibility, and efficiency" as its core advantages.

Boasting a high measurement accuracy of ±1% and filling time control precise to 0.01 seconds, the machine is equipped with leak-proof and drip-proof pneumatic control valves to achieve stable, bubble-free, and waste-free filling. It supports multi-capacity filling ranging from 50ml to 5000ml and is compatible with special-shaped bottles. Filling specifications can be quickly switched without additional spare parts, ensuring convenient operation and maintenance.

Available in multiple models with 6-12 filling heads, the series offers a filling speed range of 30-60 bottles per minute, allowing flexible configuration based on production capacity requirements. Powered by PLC intelligent control and color touchscreen operation, it integrates safety functions such as no-bottle no-filling and counting-matched filling, featuring a high degree of full-process automation that significantly reduces manual intervention.

Whether meeting the hygienic filling needs of the food industry or the precise measurement requirements of the chemical industry, this equipment stands out with its excellent adaptability, stability, and efficiency, making it an ideal choice for large-scale and standardized production.

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 9

Features

Precision Performance：±1% Accurate Measurement, 0.01s Precision Timing Control, Bubble-Free & Drip-Free, Independent Fine-Tuning per Filling Head

Intelligent Control：Microcomputer Programmable Control, PLC Intelligent Control, Color Touchscreen Operation, Full-Touch Process,No-Bottle No-Filling, Intuitive Operation Interface, Simple Maintenance

High-Efficiency Capacity : High-Capacity Adaptation (30-60 Bottles/Minute), Short Filling Cycle, Expandable Functions,Capacity Matching on Demand, Stable Batch Filling

Practical Design: Bottle Neck Positioning Device (Precise Liquid Injection), No Additional Spare Parts Needed, Easy Operation

Flexible Adaptation: Multi-Capacity Compatibility (50-5000ml), Special-Shaped Bottle Adaptation, Multiple Filling Heads Optional (6/8/10/12 Heads),Rapid Specification Switching (No Spare Parts Required), Linear Bottle Infeed & Outfeed, Compatible with Containers of Various Shapes

Machine and Products

Constant Level Filling Machine

Constant Level Filling Machine

Features

The filling accuracy is strictly controlled within a ±1% error range, and the filling time of the pneumatic valve can be precisely set to 0.01 seconds. Combined with internationally advanced leak-proof and drip-proof pneumatic control filling valves, it achieves clean filling without bubbles or drips. Each filling head supports independent fine-tuning of measurement, ensuring high consistency in the filling volume of multiple bottles, effectively reducing material loss and improving production economic benefits. Equipped with a bottle neck positioning device, the liquid injection is accurately aligned to avoid material overflow.

It integrates microcomputer programmable control, photoelectric sensing, and pneumatic actuation technology, equipped with a powerful PLC system and a color touchscreen. Information such as production status, operation processes, and filling methods is intuitively displayed, and the entire process is completed via touch control, featuring a low operation threshold. It is equipped with no-bottle no-filling and counting-matched filling functions—filling only starts when the number of bottles recorded by the counter matches the set number of filling bottles, avoiding waste caused by misoperation. No additional spare parts are required, and switching between filling specifications can be completed within minutes, making maintenance simple and worry-free.

The equipment features a rational structural design and stable performance of core components. The linear grouped bottle infeed and outfeed mode shortens the filling cycle, improves production efficiency, and adapts to the needs of large-scale production.

Constant Level Filling Machine RF-GZL-6L 8L 10L 12L high-tech filling equipment integrating microcomputer programmable control 15

Main technical parameters

Model	RF-GZL-6L	RF-GZL-8L	RF-GZL-10L	RF-GZL-12L
Filling range	50-1000ml	50-1000ml	50-1000ml	50-1000ml
Filling Speed	<30 bottles/min(base on 100-500ml)	<40 bottles/min(base on 100-500ml)	<50 bottles/min(base on 100-500ml)	<60 bottles/min(base on 100-500ml)
Measurement	±1%	±1%	±1%	±1%
Power	1.75kw 220v	2.1kw 220v	2.5kw 220v	2.8kw 220v
Working air pressure	6-7kg/cm²	6-7kg/cm²	6-7kg/cm²	6-7kg/cm²
Gas consumption	0.5-0.7m³/min	0.5-0.8m³/min	0.6-0.9m³/min	0.8-1m³/min
Weight	450kg	500kg	550kg	600kg

Product details

细节图1

细节图4

细节图5

细节图6

细节图7
