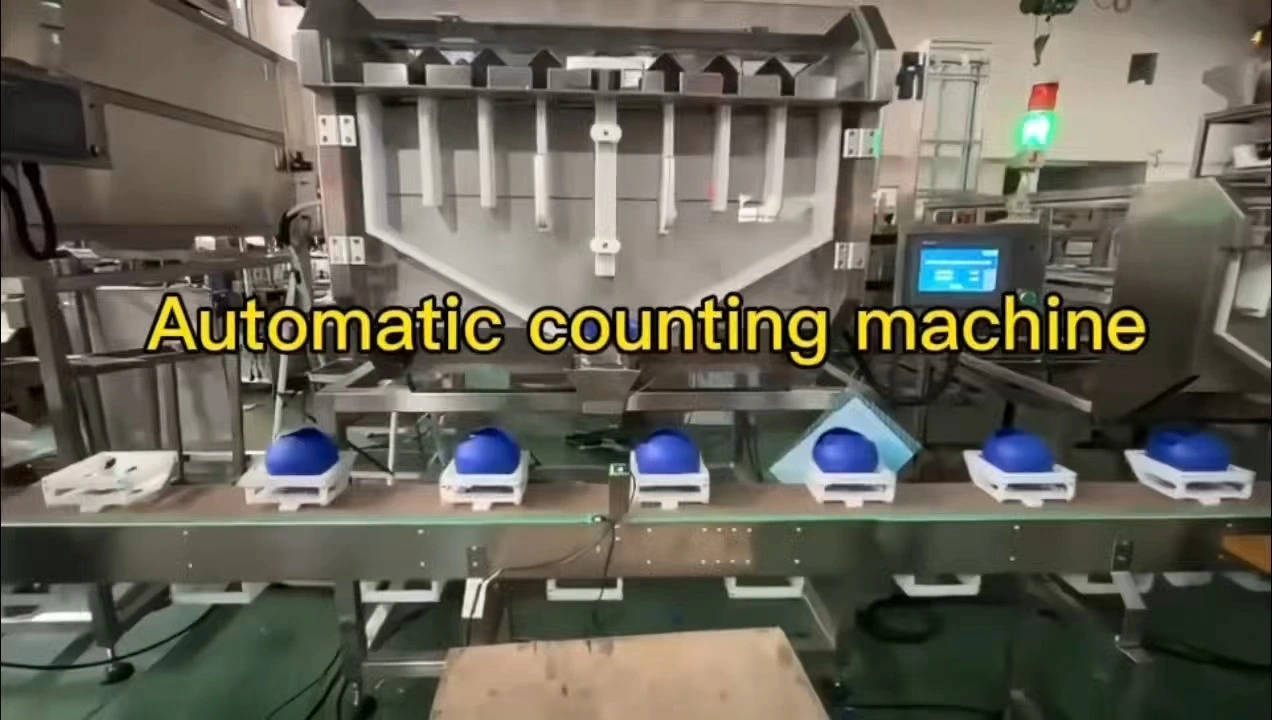

Full Automatic High Speed Flow Cotton Soft Jelly Hard Lollipop Gummy Small Candy Counting Machine

1. It has a wide range of applications. The same device can fill several pieces of products.

2. The counting is precise. It adopts an independent optical detection system, thus ensuring a high level of counting accuracy and speed.

3. It adopts multi-stage vibration feeding, with each stage capable of independent speed regulation. The material flow speed is faster and the posture is more uniform and smooth.

4. It is equipped with photoelectric detectors for missing and blocked bottles, which can effectively control the normal operation of the entire system.

5. The operation is simple and it adopts an intelligent design. Various operating parameters can be directly set on the human-machine interface as needed.

6. Automatic fault diagnosis, comprehensive real-time monitoring, alarm and display.

7. It has a parameter storage function. When changing products, there is no need for further debugging; the originally stored parameters can be directly called.

8. Cylinder positioning for bottle separation is fast and accurate. It can be used for single machine production or connected to a production line.

Quotation valid period:

For at least 3 months

Delivery date:

7 days

Payment terms:

30%PREPAYMENT.70% BALANCE BEFORE SHIPPING.

Guarantee period:

1 year

Inquiry

Write a Review

1 (6)

2 (5)

Counting part.

1. It adopts high-speed infrared dynamic electronic scanning technology, ensuring accurate counting of particles.

2. Infrared scanning photoelectric eyes have the functions of automatic supplementary lighting and real-time dimming, and have a very certain anti-dust function.

3. High-response electromagnets are adopted to ensure the accuracy of bottling.

Granulation feeding mechanism

1. The silo is equipped with a transparent window, facilitating the operator's observation of the feeding process.

2. It adopts a linear vibrating plate electromagnetic oscillation, with adjustable vibration amplitude and high speed, ensuring a
fast dispersion speed of the particles.

3. It adopts a DC vibrator, which vibrates smoothly and enables the particles to move smoothly.

4. The particle sliding track adopts a multi-layer stepped design, moving downstream layer by layer. The particles will be spaced at
an appropriate distance from each other to avoid overlapping.

5.It is equipped with a powder and chip collection device. The powder can be collected here. A vacuum cleaner and suction pipe can also be selected to suck it out.

Material door structure.

1. Each channel adopts an independent material door structure. When counting and bottling are carried out simultaneously, the
material door separates the particles from two different bottles. While bottling is done at the lower part of the material door, the upper part continues to count the particles continuously. Under the control of a high-speed microprocessor, they do not interfere with each other, ensuring accurate and rapid counting.

2. This enables the pre-counting and pre-filling functions, thereby increasing the bottling speed.

Feeding device (optional)

1. The hopper is cast from food-grade polypropylene (PP) material, with an attractive appearance, not prone to deformation, and
capable of withstanding high and low temperatures.

2. Simple to maintain, easy to disassemble and assemble, and convenient to clean.

3. Non-standard sizes can be customized according to customer requirements.

4. It can reduce the labor intensity of workers and improve work efficiency.

Fragment detection and rejection function.

1. Fragments are detected and removed by using projection technology.

2. Automatically remove bottles with many, few, stacked pieces and particles

Main technical parameters

Electronic Tablet Counter	Parameters	Remarks
Number of Vibrating Channel Slots	8 channels	8 channels correspond to one feeding and filling port
Production Capacity	Max 3200 pcs/min	It is related to the specifications of the packaging materials and particles
Land Register Number Range	15 to 9999
Material Specification	Thickness: 10-40 mm Diameter: 10-40 mm Length: 10-50 mm	Meatballs, soup dumplings, sausages and others Solid particles
Container Specifications	Height 90 - 400 mm Diameter 50 - 120 mm	Customizable according to customer requirements
Air Source	0.5 - 0.7 Mpa
Air Consumption	About 130 L/Min	Clean air
Power Supply	1P 220V 50HZ
Power	1.1KW
