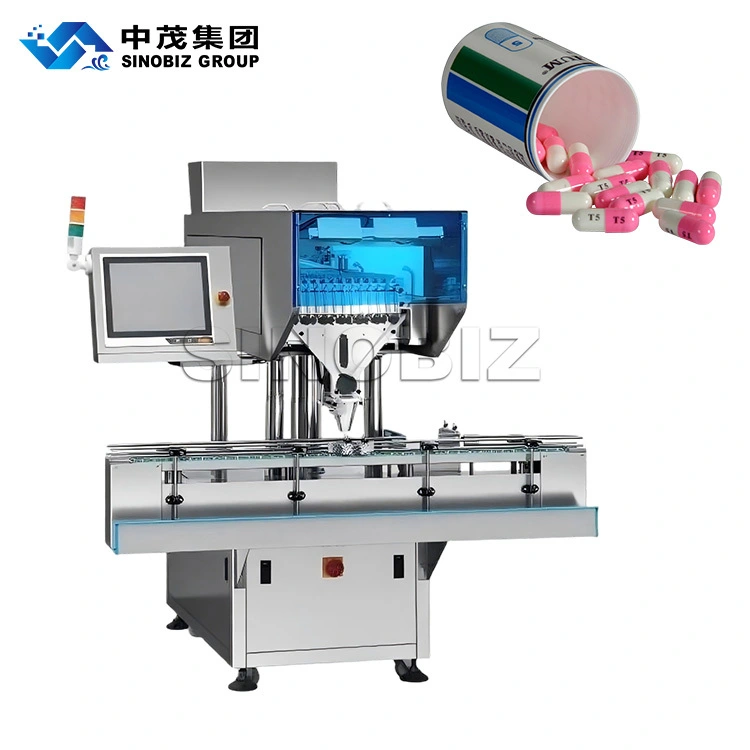

Visual Imaging Capsule Gummy Counting Machine for Pharmaceutical Industry

Features

 The PBDS-8 visual imaging electronic grain meter is an integrated automated system combining mechanical, electrical, and pneumatic components. It utilizes a linear CCD camera and a high-speed ARM processor, with pneumatic elements including Japanese SMC and American MAC high-speed solenoid valves.

  The CCD-based counting machine delivers approximately 250 imaging points per detection channel, achieving an actual detection accuracy of 0.12mm. This performance fully supports a counting speed of 20-60 bottles per minute. The system utilizes embedded configuration software with an intuitive human-machine interface, functioning as a user-friendly "point-and-shoot" solution. This design significantly reduces equipment adaptation time, enabling rapid mastery of operation methods and maximizing production efficiency.

Features

 The PBDS-8 Visual Imaging Electronic Grain Counter features an independently designed imaging system with high sensitivity, rapid response, and dust resistance. It delivers stable detection and output signals with zero counting errors. Specifically engineered for high-dust environments, the device incorporates an internal high-voltage dust removal system. Users can customize dust removal intervals and durations based on particle size, ensuring uninterrupted production and maximum efficiency

  The PBDS-8 visual imaging electronic grain meter is equipped with an automatic constant voltage power supply system and compressed air pressure detection to prevent equipment malfunction caused by unstable power supply voltage in customer facilities. The pressure detection function automatically triggers an alarm and halts operation when the intake air pressure becomes excessively low.

Technical parameters

Samples

Mechanical Images

Full Capsule Counting Line For Reference
