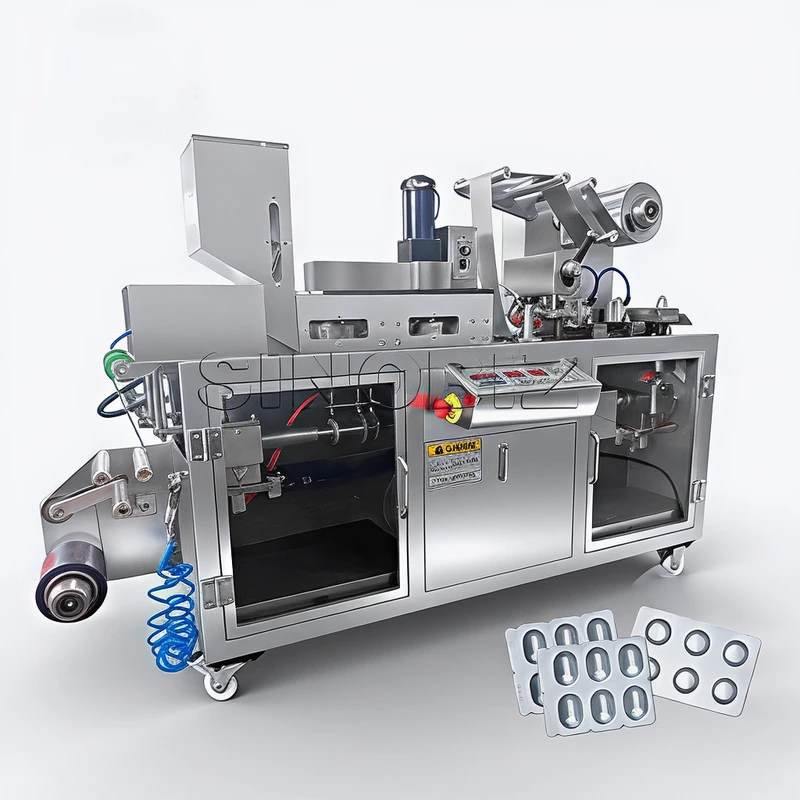

AL-PVC Blister packing machine for capsule, healthcare etc DPP80
The machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-PVC packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
5.0
Quotation valid period:
One month after the date of quotation sheet.
Delivery date:
15-20 working days after receiving down payment
Payment terms:
T/T 30% deposit; 70% will be paid before shipment
Guarantee period:
1 year, Standard wooden case Packing.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Technical parameters
Cutting Frequency (Times/min)
10-33 times/min
Max. Production Capacity (Blister/h)
2400 (decided by the size of blister)
Max. Forming Area and Depth (mm)
Standard 105×70×15
Travel Range (mm)
30-80
Air Pressure (Mpa)
0.4-0.6
Standard Plate (mm)
80×57 (Can be manufactured as user's requirements)
Total Power
2.8kw
Main Motor Power (kw)
0.75
Mould Cooling
Tap Water or Circulating Water
Overall Dimensions (mm)
1840×590×1100（L×W×H）
Weight (kg)
450
Technical parameters
| Cutting Frequency (Times/min) | 10-33 times/min |
| Max. Production Capacity (Blister/h) | 2400 (decided by the size of blister) |
| Max. Forming Area and Depth (mm) | Standard 105×70×15 |
| Travel Range (mm) | 30-80 |
| Air Pressure (Mpa) | 0.4-0.6 |
| Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
| Total Power | 2.8kw |
| Main Motor Power (kw) | 0.75 |
| Mould Cooling | Tap Water or Circulating Water |
| Overall Dimensions (mm) | 1840×590×1100（L×W×H） |
| Weight (kg) | 450 |
Samples
21 (8)
23 (4)
23 (3)
25 (3)
25 (4)
Mechanical Images
31 (3)
32 (2)
33 (2)
34 (2)
35 (2)
