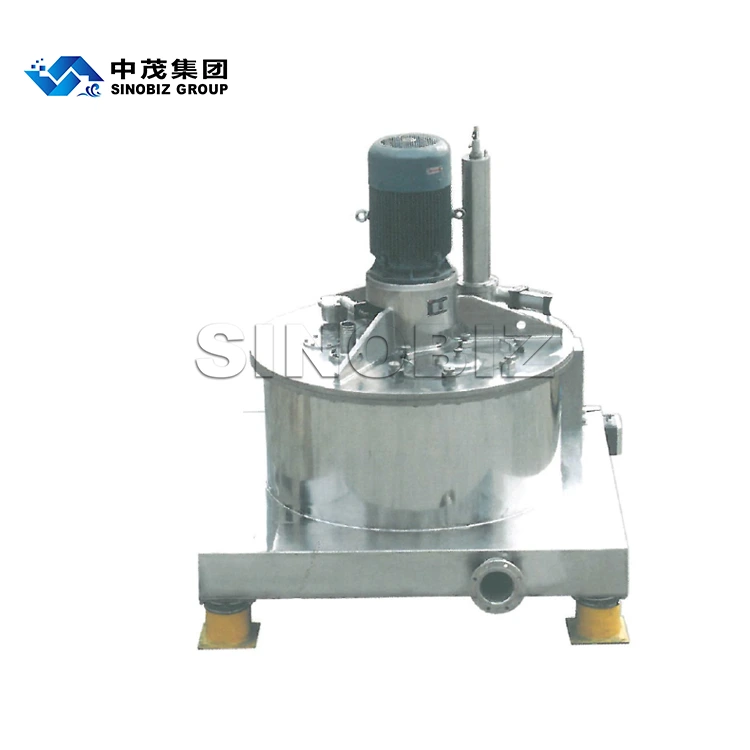

Flat type top-devicing scraper bottom discharging centrifuge
This product stands out for its outstanding quality and leading-edge technology, having successfully obtained EU CE certification and UK UKCA certification, while also strictly complying with ISO international standard systems and GMP Good Manufacturing Practice (GMP) certification. The endorsement of these authoritative certifications not only demonstrates that the product meets world-class standards in terms of safety performance, quality control, and production processes, but also reflects our unwavering commitment to excellence in quality.
Since its launch, the product has been successfully supplied to customers in over 100 countries and regions worldwide, serving a wide range of sectors including industrial manufacturing, healthcare, and daily consumer goods. With its stable and reliable performance, superior technical advantages, and comprehensive after-sales service, the product has earned widespread praise and high recognition from customers both at home and abroad. Extensive real-world user feedback and long-term partnerships are a strong testament to its exceptional quality and proven reliability, making it a trusted and dependable choice you can rely on.
Product Introduction
PXGZ model flat type top-device scraper bottom discharging centrifuge is designed based on theflat type scraper bottom discharging centrifuge with GMP standard and environmental protectionsanitary requirement, it is a new model bottom discharge centrifuge.
Inverter controls the motor,itconnects directly with the bowl through the motor spindle, which makes the bowl rotating at highspeed around itself axis to form centrifugal force field, the material be feed from top inlet, then thecentrifugal force pushes the material equispaced on the drum to separate the solid and the liquid.
The liquid penetrates the solid and the filter screen gap, then it was tossed to the main case space, anddischarged from the bottom liquid outlet, the solid material will hold back in the bowl. After processed,the bowl speed reduced,and the scraper would scrape the solid material, discharge it through theoutlet on the bottom of bowl.
main application
Applied for fine and medium grain solid particle suspension separation, the solid particle could begranule, crystal or fiber type. Especially for the separation which the material has high viscosity,finegrain, poisonous and inflammable. Widely used in the area of chemical, pharmaceutical, food, lightindustry, environment protection, etc.
main features
1. Motor on top, connected with bowl di-rectly, avoid the dust which made by belttransmission and friction.
2.Closed structure, achieve the purpose ofsealing explosion-proof, suitable for theapplication in poisonous, inflammable,explosive places.
3. Controlled by PLC,use inverting speedregulator and braking resistor, combined withhydraulic and pneumatic devices, to achievemanual or automatic operation.
4. With various protection functions, toachieve automatic start, feed, dewater, clean,discharge, unmanned operation. It can cleanfrom full angles, safe and stable, meet GMPstandard.
5.Hydraulic scraper system, it was closedstainless steel hydraulic oil cylinder whichdesigned by ourselves, can contact the rawmaterial directly.
technical parameters
standard configuration
1.Motor on top,connected with bowldirectly, avoid the dust which made by belttransmission and friction.
2.Closed structure, achieve the purpose offsealing explosion-proof,suitable for theapplication in poisonous,inflammable,explosive places.
3.Controlled by PLC, use inverting speedregulator and braking resistor, combined withhydraulic and pneumatic devices,to achievemanual or automatic operation.
4.With various protection functions,toachieve automatic start,feed,dewater,clean,discharge,unmanned operation. It can cleanfrom full angles,safe and stable, meet GMP standard.
5.Hydraulic scraper system, it was closedstainless steel hydraulic oil cylinder whichdesigned by ourselves, can contact the rawmaterial directly.
