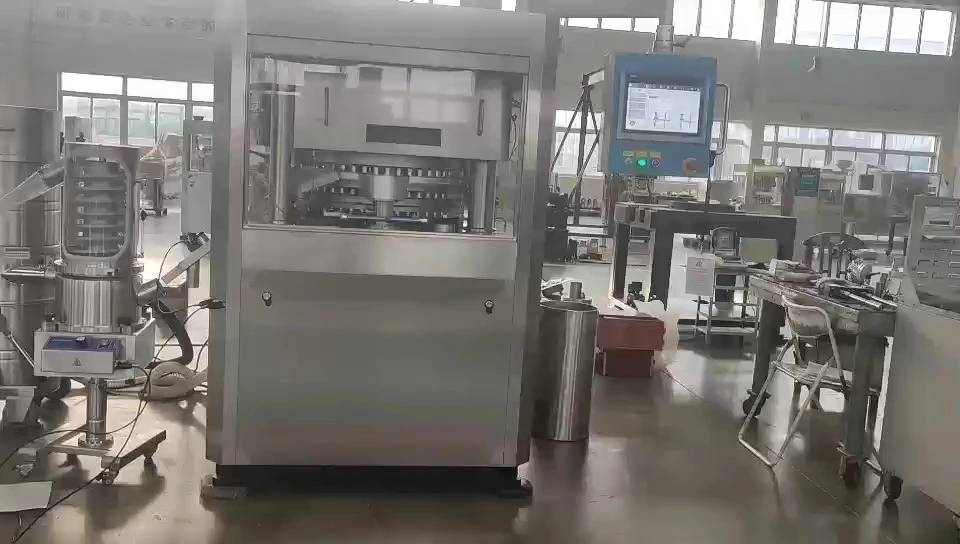

GZPTS45 Double Slides High Speed Tablet Press Machine
The GZPTS45 Double Slides High Speed Tablet Press Machine is designed for pharmaceutical manufacturers seeking efficient and reliable tablet production. Ideal for high-volume operations, it supports rapid compression with dual slides to maximize output without compromising tablet quality. This machine is perfect for producing a wide range of tablet sizes and shapes in continuous, large-scale manufacturing environments.
Introduction:
With Weight Automatic Control Functions ,Rejection in Batch and Rejection in single .Normally , The weight tolerance can control within ±2%
The performances are realized by the following structures and functions
①、Adopt Precision screw incline jacking mechanism ,High Precious of the control filling guide ,some other factory’s adopt worm and gear structure which big gap and with backhaul ,weight variation.
②、 Long length Quantitative guide which can control 7-11 punches ,Quantitative more accuracy and less weight variation.
③、Three Layers three impeller force feeding system
④、Punches runs stable and less weight variation by Magneto damping Pin in lower punch position .
The performances are realized by the following structures
①、Combined type Upper and lower guide ,especially lower guide is located on the table easy for cleaning and maintenance
②、 Pushing out design as the Weight regulating mechanism ,so more than 7 punches can be disassembled by enlarge the space ,it is easy to take the parts as well greatly reducing the cleaning time
③、Handwheel is convince operation for changing the punches and saving time
Technical parameters
Model | GZPTS-45 | GZPTS-55 | GZPTS-75 |
Punch& Die Type (EU) | D | B | BB |
Number of Station | 45 | 55 | 75 |
Max Tablet Diameter (m) | 25 | 16 | 13 |
Max Oval Size (mm) | 25 | 18 | 16 |
Max output (Tablet/Hour) | 432000 | 528000 | 720000 |
Max Filling Depth (mm) | 20 | 18 | 18 |
Main Main Pressure (KN) | 100 | 100 | 100 |
Max Pre-Pressure (KN) | 20 | 20 | 20 |
Idle Load noise dB(A) | <85 | ||
Power | 380v50HZ 15KW | ||
Size L*W*H (mm) | 1265×1485×1950 | ||
Weight (Kg) | 3750 | ||
