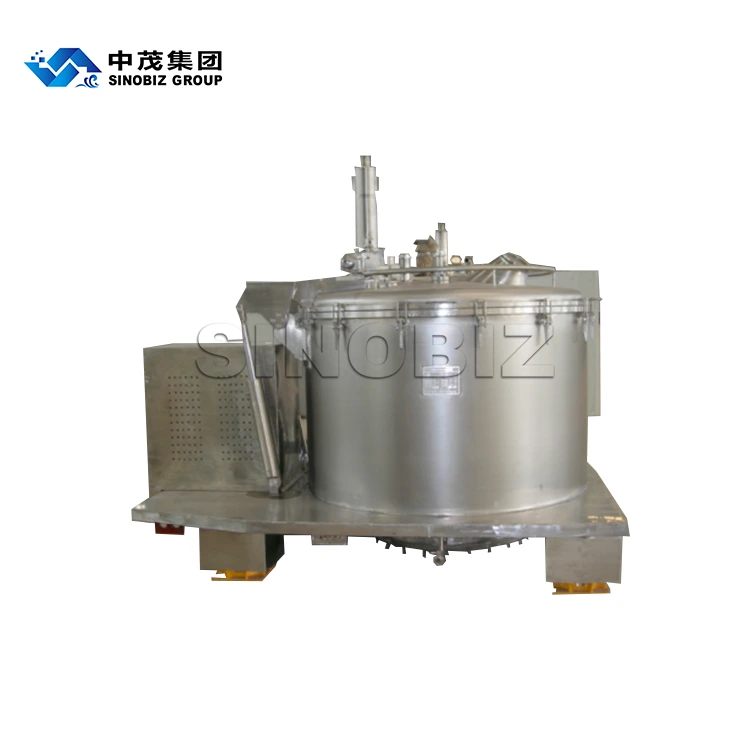

High-Efficiency Plate Centrifuge Customizable for Food Industries CE-Certified
Plate type pulling bag bottom discharging centrifuge
Plate-Type Pull-Bag Scraper Bottom Discharge Centrifuge is an industrial separation equipment suitable for high-cleanliness and high-risk working conditions. The whole machine adopts a sealed explosion-proof structure, and the material-contacting parts are made of 316L/304 stainless steel, complying with GMP standards, which can safely handle flammable, explosive, toxic and highly corrosive materials. Equipped with a PLC frequency conversion control system, the device supports full-automatic/manual operation and realizes the full-process automation of "feeding-washing-dewatering-discharging"; combined with the pull-bag scraper discharge and filter cloth vibration device, it features high separation efficiency, no material residue, and greatly reduces maintenance costs. It is widely used in food, chemical and other industries, suitable for solid-liquid separation of fine-grained and high-viscosity materials.
Standard Configuration
Main Features
Closed explosion-proof structure, suitable for toxic/flammable/explosive material processing: The whole machine adopts a closed structure, combined with explosion-proof motor and safety interlock device. It can operate stably in high-risk working conditions (e.g. chemical industry, hazardous material processing), fully complies with explosion-proof safety standards, and eliminates leakage risks.
PLC + variable frequency speed control, supporting full-automatic/manual dual-mode operation: Equipped with PLC control system and variable frequency speed regulation technology, it can complete the whole process of "feeding-washing-dewatering-discharging" with one click, no manual intervention required; combined with touch screen operation, parameter adjustment is convenient, greatly improving production efficiency.
Multi-dimensional safety protection, meeting compliance requirements of high-cleanliness industries: Equipped with safety protection functions such as overload, over-temperature, over-vibration, etc. Meanwhile, the whole machine has no hygiene dead corners, and the material-contacting parts are made of 316L/304 stainless steel, complying with GMP cleanliness standards, suitable for food and other industries.
Plate-type pull-bag scraper discharge, high separation precision + no material residue: Adopts plate-type pull-bag scraper structure; centrifugal force cooperates with scraper to realize rapid separation of fine-grained and high-viscosity materials, complete discharge without residue; combined with filter cloth vibration device, it automatically cleans filter cloth and reduces maintenance costs.
Process flow diagram and machine
product structure
Main technical parameters
|
Model |
PLGZ800 |
PLGZ1000 |
PLGZ1250 |
PLGZ1600 |
|
Inner diameter/mm |
800 |
1000 |
1250 |
1600 |
|
Effective height/mm |
400 |
420 |
500 |
800 |
|
Effective volume/L |
80 |
100 |
300 |
800 |
|
Max. loading /Kg |
100 |
140 |
380 |
1000 |
|
Rotating speed r/min |
1500 |
1080 |
1000 |
850 |
|
Max. Separating factor |
1007 |
652 |
699 |
646 |
|
Motor power/Kw |
7.5 |
15 |
18.5 |
37 |
|
Dimension(LxWxH)/mm |
1700X1400X2350 |
1950X1500X2800 |
2400X1800X2800 |
3100X2200X3300 |
|
Weight /Kg |
2200 |
3800 |
52000 |
12500 |
Product details
