Multi-Head Automatic Piston Filler For Liquid Paste Granular

Precision & Stability, Premium Build Quality：Adopting the piston-type quantitative principle, the filling accuracy is strictly controlled within ±1%, ensuring highly consistent filling volumes across multiple containers. Core electrical and pneumatic components are sourced from internationally renowned brands, featuring low failure rates, reliable performance and a long service life, which is ideal for long-term large-scale production needs.

Sanitary & Compliant, Easy Maintenance：All parts in contact with materials are made of stainless steel, enabling easy disassembly, assembly and efficient cleaning. Fully compliant with GMP standards, it meets the hygiene requirements of food and other industries. Daily maintenance requires no complex operations, significantly reducing operational costs and hygiene control difficulties.

Intelligent Operation, Effortless & Efficient：Equipped with a PLC control system and a touch screen operation interface, adjusting filling volume and speed is intuitive and simple, allowing quick mastery without professional skills. It comes with functions like no-bottle no-fill and automatic liquid level control for feeding, effectively avoiding material waste and misoperation, and improving production safety and efficiency.

Flexibility & Versatility, Wide Compatibility：With a broad filling range of 50–1000ml, it can quickly adapt to different bottle sizes without replacing components. By changing the filling valves, it is compatible with various materials including liquids, pastes and particle-containing semi-fluids. Multiple models are available: 4-head (15–25 bottles/minute) and 6-head (20–35 bottles/minute), perfectly matching the production needs of multi-category and multi-capacity scenarios.

Leak-Proof & Sanitary, Attractive Packaging Finish：The filling heads are fitted with special leak-proof devices, ensuring no stringing or dripping during the filling process. This not only eliminates material waste and workshop environmental pollution, but also guarantees neat and attractive product packaging, enhancing the texture of end products.

Innovative Design, Practical & Aesthetically Pleasing：Boasting a novel and elegant appearance design with a rational structural layout, it balances practicality and visual appeal. The user-friendly human-machine interaction design combined with a neat shape not only fits well into workshop production layouts, but also adds comfort to the operation environment, achieving both functionality and aesthetics.

Quotation valid period:

6 months

Delivery date:

<30 Days

Payment terms:

T/T

Guarantee period:

1 Years

Inquiry

Write a Review

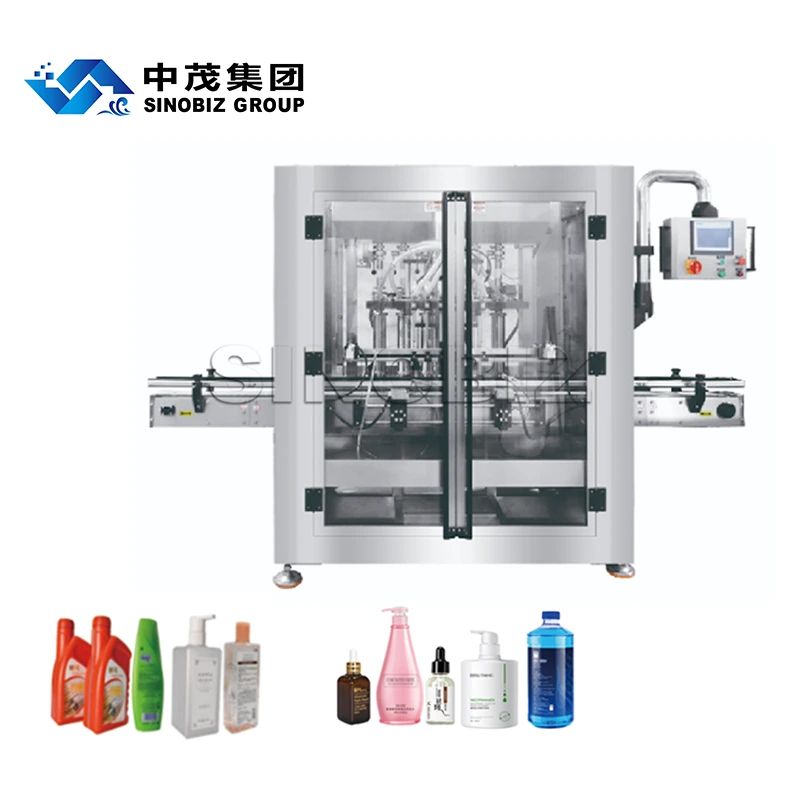

Automatic Piston Filling Machine RF-GSF-4/6

The RF-GSF-4/6 Automatic Piston Filling Machine is a new-generation automated filling device independently developed by our company, drawing on years of production experience and incorporating internationally advanced technologies. With its core advantages of precision & efficiency, flexible adaptability, and sanitary compliance, it has become the ideal choice for material filling across multiple industries. Adopting the piston-type quantitative principle and equipped with electrical and pneumatic components from world-renowned brands, the machine is jointly controlled by a PLC control system and a human-machine interface (HMI). It features an innovative and aesthetically pleasing overall design, a user-friendly operation interface, as well as multiple outstanding characteristics including strong compatibility, easy operation, precise filling and convenient maintenance.

The machine excels remarkably in terms of functionality and adaptability. It supports a wide filling range of 50–1000ml, with two models available to meet diverse production needs: the 4-head model (15–25 bottles/minute) and the 6-head model (20–35 bottles/minute), both based on a filling volume of 100–500ml. The filling accuracy is stably controlled within ±1%, ensuring consistency in mass production. It can quickly adapt to bottles of different specifications and shapes without replacing any components; by simply changing the filling valves, it is compatible with various materials such as liquids, pastes, particle-containing semi-fluids and sauces, making it suitable for a broad spectrum of application scenarios.

The machine stands out particularly for its sanitation and practicality. All parts in contact with materials are made of stainless steel, allowing for easy disassembly, assembly and convenient cleaning. Fully compliant with GMP standards, it meets the strict hygiene requirements of the food, daily chemical industries. Each filling head is equipped with a dedicated leak-proof device, which ensures no stringing or dripping during the filling process—this not only keeps product packaging neat and tidy, but also avoids material waste. Meanwhile, it is integrated with functions like no-bottle no-fill and automatic liquid level control for feeding, further enhancing production safety and material utilization efficiency.

In terms of operation, the machine adopts a touch screen for control and display. Adjusting filling volume and speed is intuitive and straightforward, enabling operators to master the operation quickly without professional skills. For performance parameters, the machine is compatible with 220V power supply, with a power rating of 2.2kW for the RF-GSF-4 model and 2.5kW for the RF-GSF-6 model. It requires a working air pressure of 6–7kg/cm², with an air consumption of 0.5–0.7m³/min for the 4-head model and 0.7–0.9m³/min for the 6-head model. The net weight of the 4-head and 6-head models is 600kg and 700kg respectively. With its rational structural layout, the machine can be seamlessly integrated into various large-scale production lines, providing enterprises with an efficient, stable and flexible filling solution.

High Speed Automatic Piston Filling Machine Electrical High Filling Accuracy 8

features

Precision & Stability · Premium Build Quality: Piston-type quantitative principle + electrical & pneumatic components from internationally renowned brands; filling accuracy up to ±1%; low failure rate and long service life.

Sanitary & Compliant · Easy Cleaning: All material-contacting parts are made of stainless steel; easy disassembly, assembly and cleaning; fully compliant with GMP standards.

Intelligent & User-friendly · Effortless Operation: PLC + touch screen control system; easy adjustment of filling volume and speed; built-in functions of no-bottle no-fill and automatic liquid level control for feeding.

Flexible & Versatile · Wide Compatibility: Quick adaptation to bottles of different specifications without replacing components; compatibility with various materials including liquids, pastes and particle-containing semi-fluids by changing filling valves.

Leak-proof & Sanitary · Attractive Packaging Finish: Filling heads equipped with dedicated leak-proof devices; no stringing or dripping during the filling process.

Innovative Design · Practical & Aesthetically Pleasing: Novel and attractive appearance design; rational structural layout; balancing practicality and visual appeal.

machine and products

Automatic Piston Filling Machine

Automatic Piston Filling Machine

Features

Leveraging mature quantitative technology and high-quality core components, it ensures highly consistent filling volumes across multiple containers with stable and reliable operation. It significantly reduces downtime caused by faults and maintenance costs, meets the demands of long-term large-scale production, and guarantees premium quality.

The visualized touch interface is user-friendly and intuitive, allowing operators to master the operation quickly without professional skills. The intelligent functions accurately avoid material waste and misoperation risks, simplify the feeding control process, and improve overall production efficiency and operational safety.

It covers a wide filling range of 50–1000ml, with multiple models available: 4-head (15–25 bottles/minute) and 6-head (20–35 bottles/minute), easily matching diverse production needs. No additional spare parts are required for product changeover, which greatly shortens downtime, reduces changeover costs, and adapts to multi-category production scenarios.

High Speed Automatic Piston Filling Machine Electrical High Filling Accuracy 14

Main technical parameters

Model	RF-GSF-4	RF-GSF-6
Filling range	50-1000ml	50-1000ml
Filling Speed	<15-25 bottles/min(base on 100-500ml)	<20-35 bottles/min(base on 100-500ml)
Measurement	±1%	±1%
Power	2.2kw 220v	2.5kw 220v
Working air pressure	6-7kg/cm²	6-7kg/cm²
Gas consumption	0.5-0.7m³/min	0.7-0.9m³/min
Weight	600kg	700kg
