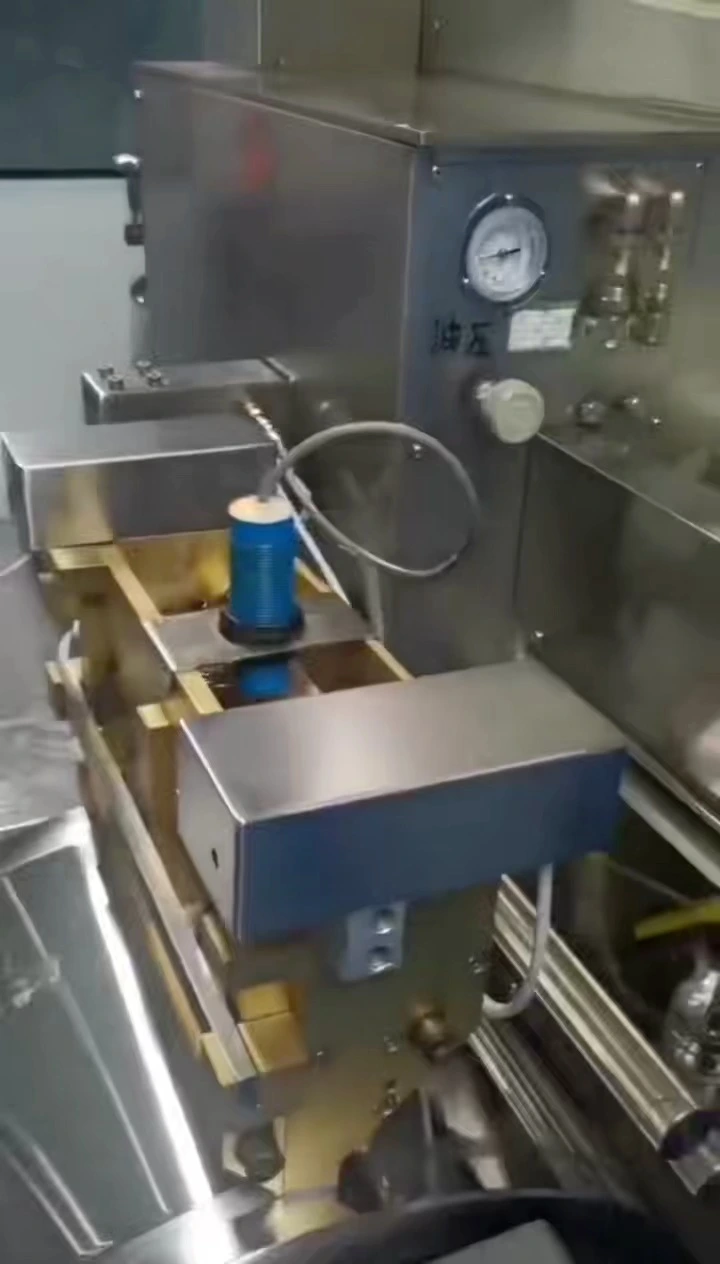

HSR-250 Fully Automatic Softgel Encapsulation Production Line
Model HSR-250 Fully Automatic Softgel/Soft Capsule Encapsulation Production Line is specially design for the large scale production. The encapsulation machine is the most advanced simple construction design in the market.
Main Application
It is applicable mainly to small batch production and trial manufacture of softgel for labs and scientific research organizations.
Shape and loading of the common soft gelatin capsule
Tech Data：
Main machine: SNR-250
Roller Die Dimension：Φ150x250mm
Roller Die Pressure：0.1-0.5MPa
Roller Die Speed：0-6rpm Stepless Speed Adjust
Material Feeding Quantity：20 X (0-1)mL
Filling Quantity Precision：<500mg, ±1% ; >500mg, ±0.5%
Power：AC380V 50Hz 7kW
External Size：1880×1000×2000mm
Weight：1500kg
Size of rotating cage: Φ610×960mm
Rotation rate of rotating cage: 18rpm
Power: AC380V 50Hz 2.2kw
Wound rate of fan: 3000m3/h
Weight: 200kg
External size: 1040×760×1180mm
