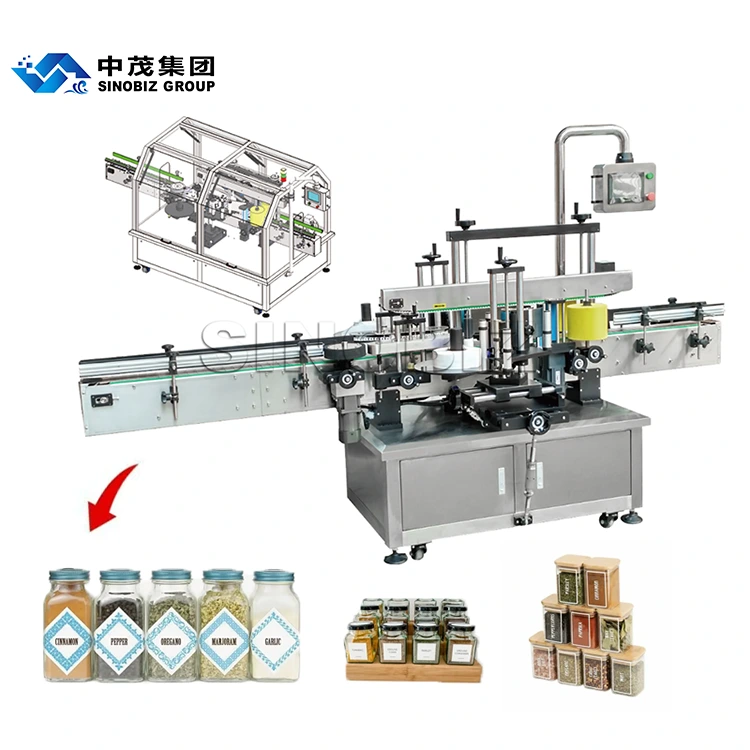

LY-1540 Double sides labeling machine suitable for square bottle single side and double sides labeling
Product Introduction
Suitable for square bottle single side and double sides labeling.It equipped with round bottle labeling mechanism,can be used for positioning round bottle, square bottle and other shaped bottle, greatly improve the scope of the equipment application.
1、Multi-dimensional adjustment: Label head can achieve 8-D spatial accurate positioning adjustment
2、Labeling head lateral translation:Micro-adjustment of labeling position can be realized by lateral translation of the label head
3、 All the regulating mechanisms can realize fast regulation
4、The design of pressure roller is used to improve the tension of the label, especially for ultra thin label.
5、All structural parts are machined by numerical control,High precision matching of components to ensure accuracy grade of equipment.
6、Label clutch makes machine running more smoothly.Three-point label head up and down adjustment device make the adjustment more easily.
7、The special scraper support is easy to adjust.
This product stands out for its outstanding quality and leading-edge technology, having successfully obtained EU CE certification and UK UKCA certification, while also strictly complying with ISO international standard systems and GMP Good Manufacturing Practice (GMP) certification. The endorsement of these authoritative certifications not only demonstrates that the product meets world-class standards in terms of safety performance, quality control, and production processes, but also reflects our unwavering commitment to excellence in quality.
Since its launch, the product has been successfully supplied to customers in over 100 countries and regions worldwide, serving a wide range of sectors including industrial manufacturing, healthcare, and daily consumer goods. With its stable and reliable performance, superior technical advantages, and comprehensive after-sales service, the product has earned widespread praise and high recognition from customers both at home and abroad. Extensive real-world user feedback and long-term partnerships are a strong testament to its exceptional quality and proven reliability, making it a trusted and dependable choice you can rely on.
Product Introduction
Suitable for square bottle single side and double sides labeling.It equipped with round bottle labeling mechanism,can be used for positioning round bottle, square bottle and other shaped bottle, greatly improve the scope of the equipment application.
1、Multi-dimensional adjustment: Label head can achieve 8-D spatial accurate positioning adjustment.
2、Labeling head lateral translation:Micro-adjustment of labeling position can be realized by lateral translation of the label head.
machine details
Belt compression mechanism application
1、 Main motor gear drive, increase transmission torque and reduce transmission clearance can affect labeling accuracy.
2、 Separate pressure belt pad conducive to heat dissipation.And it can choose different pressure device according to the requirements of different working stations.
3、 Large span support with compression belt, double screw adjustment, synchronous belt drive between screws to realize synchronous adjustment
4、 Increase belt buffer slider can improve its mechanical performance.
5、 Wide range height adjustment to facilitate product category replacement,adjustable area 0 ~ 400 mm
Plastic mechanism application
1. Adopt Mechanical transmission, main transmission line, belt compression and plastic belt are used to drive by gear, driven by a powerful motor can realize speed regulation without segment.
2. The use of increased spiral bevel gear drive to improve the safety performance of the operation
3. Two-dimensional space adjustment to increase the scope of machine application
4. Using the chain of polymer material is beneficial to the accuracy of plastic shaping.
sample
specification
Model | LY-1540 |
Labeling speed | 10-40 meters/min |
Labeling accuracy | ±1mm |
Max label width | 200mm |
Applicable product size | high≤400mm thickness≤100mm |
Applicable outer diameter of paper | 76.2mm |
Applicable inner diameter of paper | Max.350mm |
Air source | 6kg |
Dimension | 3050*1450*1800mm |
Voltage | 220v 50Hz 3000w |
Weight | 500kg |
