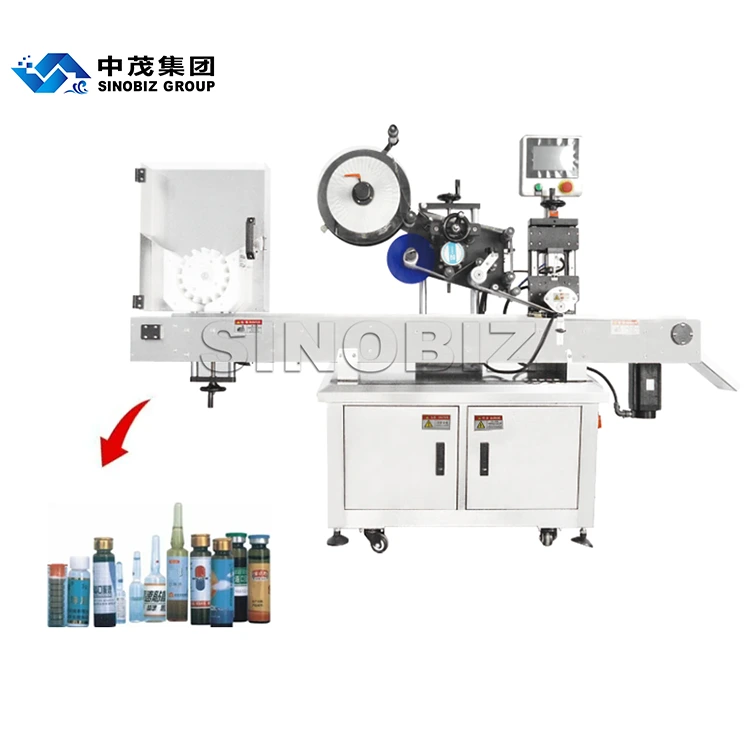

LY-230 Horizontal positioning labeling automatic positioning and labeling
Production Introduction
- Suitable for labeling small bottles,such as oral liquid bottle, penicillin bottle,etc
- Tilting design, automatic positioning and labeling
- Can be installed with automatic feeder,the maximum labeling speed of up to 300 bottles per minute.
- Optional unloading dial and large material hopper, feeding is fast and convenient
- Servo motor drive, maximum labeling speed can up to 60m / min
- Can cooperate with the automatic feeding system, easy to packing
This product stands out for its outstanding quality and leading-edge technology, having successfully obtained EU CE certification and UK UKCA certification, while also strictly complying with ISO international standard systems and GMP Good Manufacturing Practice (GMP) certification. The endorsement of these authoritative certifications not only demonstrates that the product meets world-class standards in terms of safety performance, quality control, and production processes, but also reflects our unwavering commitment to excellence in quality.
Since its launch, the product has been successfully supplied to customers in over 100 countries and regions worldwide, serving a wide range of sectors including industrial manufacturing, healthcare, and daily consumer goods. With its stable and reliable performance, superior technical advantages, and comprehensive after-sales service, the product has earned widespread praise and high recognition from customers both at home and abroad. Extensive real-world user feedback and long-term partnerships are a strong testament to its exceptional quality and proven reliability, making it a trusted and dependable choice you can rely on.
Product Introduction
1. Suitable for labeling small bottles,such as oral liquid bottle, penicillin bottle,etc
2. Tilting design, automatic positioning and labeling
3. Can be installed with automatic feeder,the maximum labeling speed of up to 300 bottles per minute.
4. Optional unloading dial and large material hopper, feeding is fast and convenient
5. Servo motor drive, maximum labeling speed can up to 60m / min
6. Can cooperate with the automatic feeding system, easy to packing
machine details
specification
Model | LY-230 |
Labeling speed | Max.300pieces/min |
Labeling accuracy | ±0.5mm |
Max label width | 100mm(can be customized) |
Applicable product size | 10-30mm |
Applicable outer diameter of paper | 76mm |
Applicable inner diameter of paper | Max.350mm |
Air source | // |
Dimension | 2000*800*1650mm |
Voltage | 220v 50Hz 1000w |
Weight | 350kg |
sample
