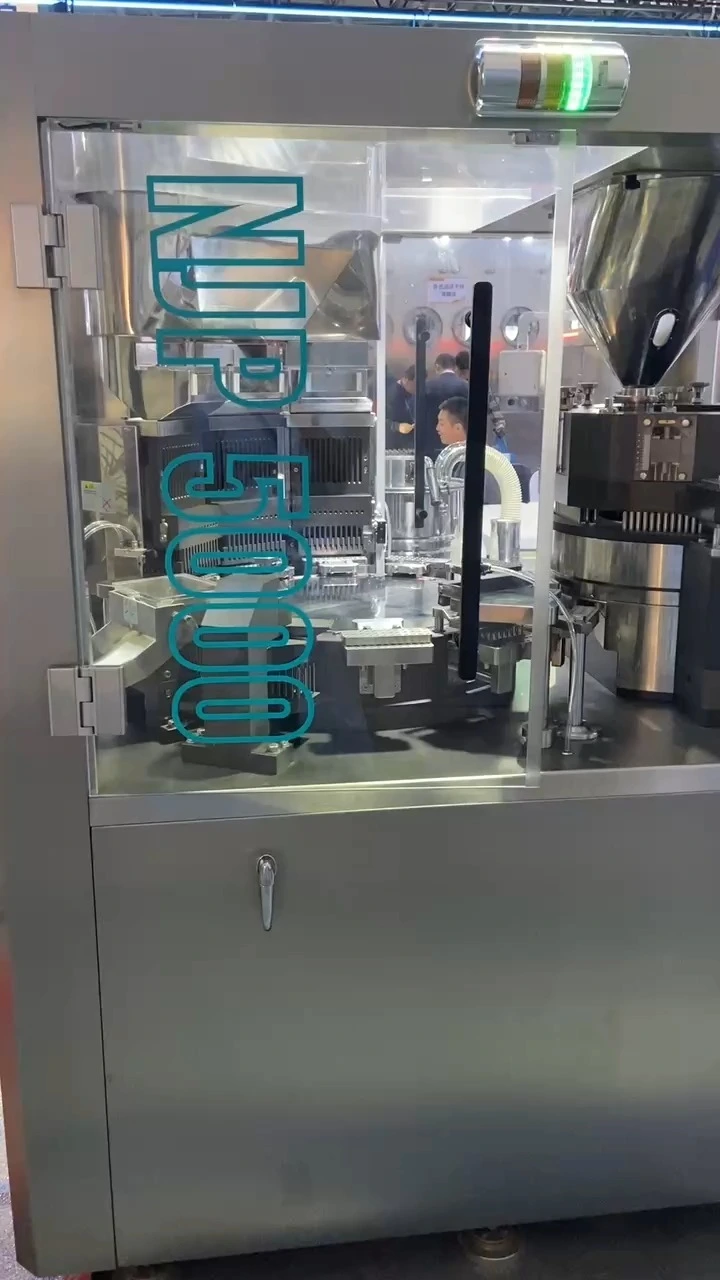

NJP-5000 Large Scale Use Full Automatic Capsule Filling Machine
NJP-5000 full-automatic capsule filling machine, this model is suitable for large production of special equipment, the company absorbs foreign advanced technology, take its essence, but also adapt to the national conditions of reasonable improvement and innovative design.
description:
Adopting 3 row 36 die holes and 12 station design, it has become a new high technology equipment with high efficiency.
Product features
Adopt the second generation totally enclosed turntable design. The upper die adopts two shafts to move up and down circumferentially, and imported silica gel seals to reduce the powder feeding into and out of the rotary table; the lower die adopts two shafts to move in and out circumferentially, matched with imported rubber seals to reduce the situation of powder feeding due to the back and forth expansion of the moving shaft, and it is stable and has high precision; the double shafts are made of a press cover, easy to disassemble and assemble, easy to clean, and the sealing ring is not changed. It is necessary to turn on the turntable to avoid cumbersome defects due to the dismantling of the turntable.
Main technical parameters
Output | Max 300000 pcs/hour |
Machine weight | 3500KG |
Machine Dimensions | 1605mm*1285mm*2127mm+(60-125)mm (not include external electric control cabinet） |
Power Supply | 380/220V 50Hz |
Motor power | Motor 4.4KW vacuum 4KW dust 4KW |
No.of segment bores | 36（3 line） |
Vacuum | Pumping rate120m3/h,-0.03~-0.05Mpa |
Dust | 29Kpa 318m3/h |
Noise | <85DB（A） |
Making rate | Empty capsule 99% full capsule more than 98% |
Suitable for Capsule | 000、00.0，1，2，3，4．5# |
Filling error | ±2.5%-±3.5% |
