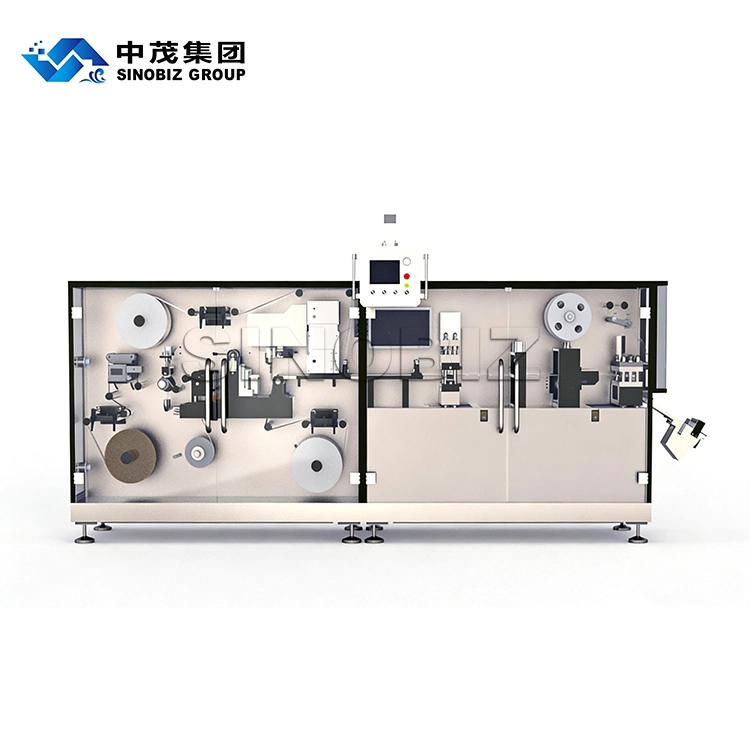

Oral Dissolving Film Packaging Machine

ODF packing machine

Oral Dissolving Film (ODF) Packaging Machine: Your Ultimate High-Efficiency Packaging Solution

Elevate your film-based product packaging with our Oral Dissolving Film (ODF) Packaging Machine—a specialized, GMP & UL-compliant workhorse engineered for the pharmaceutical, health supplement, and food industries. Designed to handle slitting, integrating, and composite sealing of all ODF materials with precision, this machine turns technical superiority into tangible business value, driving faster production, lower costs, and uncompromising product quality.

Equipped with mechatronic integration (mechanical, electrical, optical, and pneumatic systems) and variable frequency speed regulation, it delivers unrivaled operational flexibility: adjust speeds seamlessly to match small-batch trials or large-scale mass production. Every core function—from micron-level slitting and airtight heat sealing, to clear batch number printing and uniform cutting—is controlled via an intuitive one-touch panel, ensuring ±0.1mm precision, zero material waste, and consistent finished products every time. Its sleek, easy-to-clean exterior not only saves workshop space but also simplifies sanitization—critical for meeting strict industry hygiene standards.

What makes this machine a game-changer for your business? It boosts production efficiency by 35% compared to conventional equipment, cutting labor costs while handling high throughput. The low energy consumption and minimal material loss (≤0.8%) reduce operational expenses significantly, while full compliance with pharmaceutical GMP standards and UL safety certifications eliminates regulatory risks, avoiding costly delays in market launch. Beyond efficiency, its professional packaging output enhances product shelf appeal, strengthens consumer trust, and gives your ODF products a competitive edge in the crowded market.

Don’t settle for average—invest in a packaging solution that aligns with your growth goals. Contact us today for a customized quote, free technical consultation, or live demo, and take the first step toward streamlined, high-quality ODF packaging that accelerates your business success.

Inquiry

Write a Review

Performance Characteristics

Suitable for slitting and packaging of various food-grade films and pharmaceutical films. The material unwinding adopts magnetic powder brake tension control, combined with photoelectric roll diameter monitoring to achieve constant-speed unwinding.

The whole machine adopts a design of mainframe structure plus detachable modules. Each module can be independently disassembled or assembled, and can be customized with special functions or stations according to requirements.

All production operations and various parameter adjustments of the equipment are controlled by the PLC touch panel, and all operational processes and parameters are displayed on the touch panel.

The main motor adopts variable frequency speed regulation, and the corresponding blanking stroke and frequency can be set according to product dimensions. Both the material film and packaging film are driven by servo motors, ensuring stable operation and precise synchronization.

The equipment is equipped with a safety production alarm function. It will immediately trigger an alarm and shut down automatically when all film materials are used up or broken.

All parts of the equipment in contact with materials are made of stainless steel or non-toxic materials, complying with GMP requirements and standards. All electrical components, wiring layouts and operation schemes meet UL safety standards.

Oral Dissolving Film Packaging Machine 2

Oral Dissolving Film Packaging Machine 3

ODF Packing machine

Our Oral Dissolving Film (ODF) products—packaged by our specialized ODF Packaging Machine—serve pharmaceuticals, health supplements, etc. These thin films dissolve rapidly in the mouth (no water needed), enabling easy ingestion. Sealed airtight via the machine’s precise packaging, they stay sterile, complying with GMP/UL standards. Portable, shelf-stable, and neatly portioned, they boost user convenience while securing product safety and quality.

Technical parameters

Model	LY-KFM260S
Blanking Speed	5-50time/min
Packaging Film Width	200-260mm
Unwinding Diameter	≤φ200mm
Rewinding Diameter	≤φ200mm
Total Installed Power	20KW
Overall Dimensions	44189052250mm
Weight	2800Kg
Voltage	380V 3P 50Hz
