Sinobiz Machinery Provides One-Stop Turnkey Systems for Supplement & Pharma Manufacturing

Oral Dissolving Film Production Machine

ODF making machine

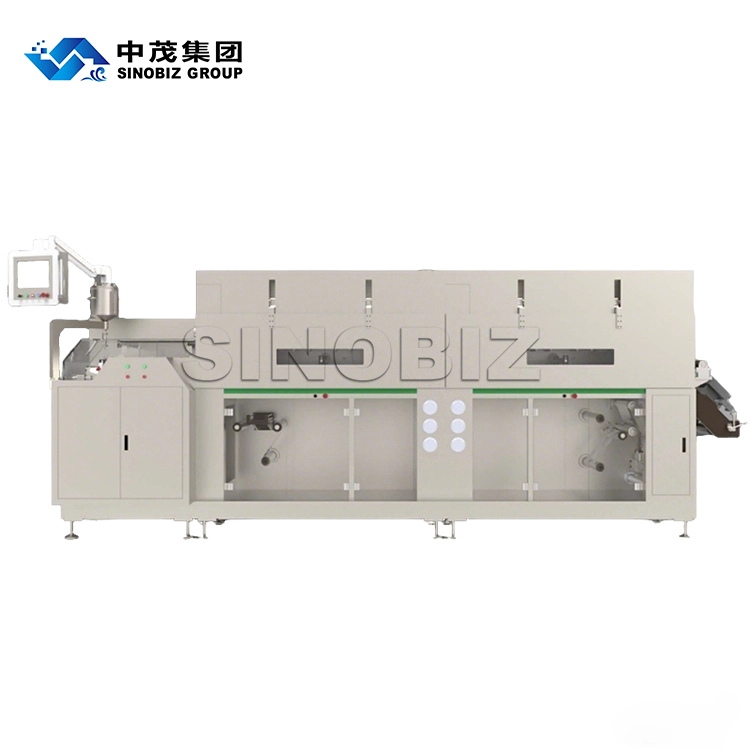

Oral Dissolving Film (ODF) Production Machine: Your High-Precision Solution for Thin Film Manufacturing

Our Oral Dissolving Film (ODF) Production Machine is a specialized device engineered to evenly spread liquid materials onto base films, forming uniform thin films—ideal for pharmaceuticals, cosmetics, health supplements, and food industries.

Built strictly to pharmaceutical GMP standards and UL safety regulations, it guarantees operational safety, hygiene, and regulatory compliance (eliminating non-conformity risks). Its sleek, easy-to-clean design simplifies sanitization (critical for high-hygiene sectors), while variable frequency speed regulation + integrated mechatronic (mechanical-electrical-optical-pneumatic) control systems enable precise, automated operation. Equipped with our improved comma blade coating technology, the machine ensures film thickness tolerance within ±2μm; adjust speeds for small-batch trials or mass production, with minimal material waste.

This machine delivers tangible value: boost production efficiency by 40% vs. manual processes, cut labor costs via one-touch automation, and produce consistent, high-quality films that enhance your product’s shelf appeal. Its compliant, durable build ensures long-term reliability—turning technical precision into a high-return investment.

Inquiry

Write a Review

Process Flow

Place the material film roll on the unwinding shaft, then guide the material film through tension control and the traction device to enter the film-forming station. Precise and stable film formation is achieved via the comma blade—currently, the horizontal tolerance of the film roll is controlled within ±2μm.

The film coated with materials enters the oven drying zone. After circulating drying, the finished film roll is obtained. It then passes through the tension control roller and correction device, and is cut by the film roll slitter into rolls compatible with LY-KFM260 series packaging machines. Finally, it is introduced into the material rewinding station via the traction device.

Oral Dissolving Film Production Machine 2

Oral Dissolving Film Production Machine 3

ODF & Its Production Equipment Trends

Oral Dissolving Films (ODFs) are thin polymeric sheets that dissolve rapidly in the oral cavity without water, enabling precise delivery of pharmaceuticals, supplements or functional ingredients—ideal for patients with dysphagia, the elderly and children.

The equipment for ODF production is trending toward intelligence, modularization and eco-friendliness. Smart systems with real-time process monitoring ensure GMP/UL compliance and product consistency; modular designs allow flexible customization for multi-spec films, cutting retooling time and waste. High-precision technologies like comma blade coating (±2μm tolerance) and servo-driven control guarantee uniform film quality. Additionally, solvent-free manufacturing processes and compatibility with biodegradable materials are gaining traction, aligning with global sustainability goals while lowering long-term operational costs.

Technical parameters

Model	LY-OZM340-4M
Effective Production Width	340mm
Roller Surface Width	400mm
Mechanical Speed	0.1–1.5 m/min, depending on actual material properties and processing conditions
Unwinding Diameter	≤φ340mm
Rewinding Diameter	≤φ340mm
Heating and Drying Method	Electric Heating Tube Heating and Hot Air Drying
Temperature Control	Ambient temperature ~ 100°C ± 3°C
Overall Dimensions	547016652170
Voltage	380V 3P 50Hz
