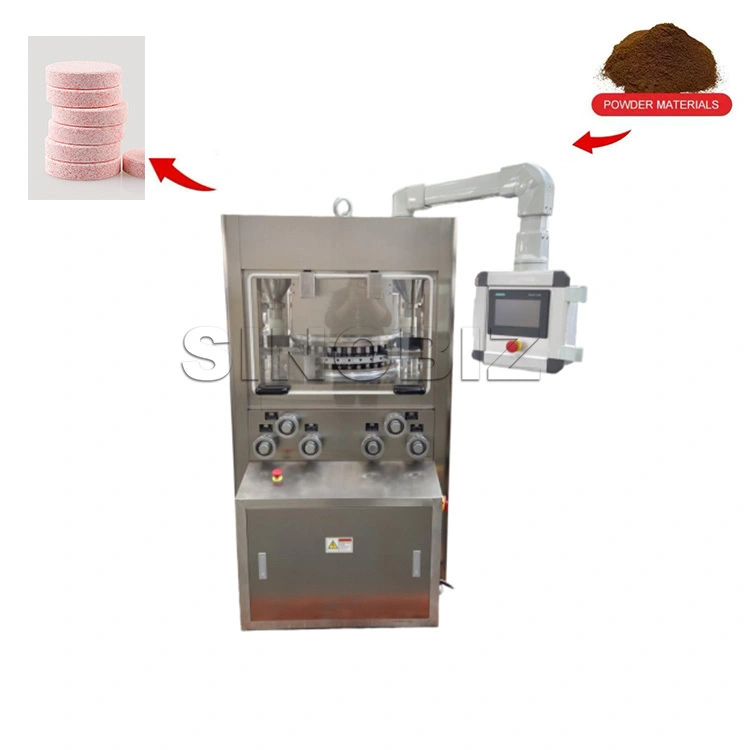

Pharmaceutical Vitamin C Effervescent Pill HSZP-35 High Speed Rotary Tablet Pressing Machine
Characteristics of High Rotary Tablet Press
- The rotary tablet press complies with GMP requirements.
- The high production efficiency satisfies large batch production demands.
- It’s equipped with forced feeding device, various types of impellors are suitable for different materials to ensure the feeding precision.
- The pre-pressure is consecutively adjustable which extends the pressing duration. The high speed rotary tablet press runs smoothly pressing complex materials.
- The tablet pressing chamber is 360° dead angle, special installation is adopted for the tablet discharging mechanism, the under guide track and under roller are convenient to operate, dismantle and clean.
- With special oil-resistance and dustproof system, the tablet press can effectively avoid mould blocking and provide its mould with increased damping coefficient.
- An independent view window with high definition is designed for the high speed rotary tablet press.
8. Controlled by PLC and man-machine interface, it’s simple to operate.
Product description of Tablet Press Machine
The HSZP-35 High Speed Rotary Tablet Pressing Machine is a professional pharmaceutical equipment specially designed for the production of Vitamin C effervescent pills.
It integrates high-speed operation, stable performance and strict compliance with pharmaceutical industry standards, making it an ideal choice for global pharmaceutical manufacturers.
ROTARY STRUCTURE
With its advanced high-speed rotary structure, this machine can realize continuous and efficient tablet pressing, greatly improving the production capacity of Vitamin C effervescent pills while ensuring the uniformity of tablet weight, hardness and dissolution rate.
COMPANY STRENGTH
In addition, the machine adopts a user-friendly design, which simplifies operation and daily maintenance, reduces labor costs, and is also suitable for the production of other pharmaceutical tablets, providing diversified solutions for pharmaceutical production lines.
OTHER ADVANTAGE
Certified by GMP and CE, it fully meets international pharmaceutical quality and safety requirements, laying a solid foundation for enterprises to enter the global market.
Technical parameters
|
Model |
HSZP35 |
|
Die model |
IPT`D |
| Max. capacity (per hour) |
189000 |
|
Max speed (rpm) |
45 |
|
Max. tablet press diameter(mm) |
25 |
|
Max. filling depth(mm) |
18 |
|
Max. pressure(kN) |
100 |
|
Max. pre-pressure(kN) |
60 |
|
Main motor power(kW) |
11 |
|
Dimensions(Length mm× Width mm) |
1290×1170 |
|
Including hopper |
1900 |
|
Weight(Kg) |
3500 |
