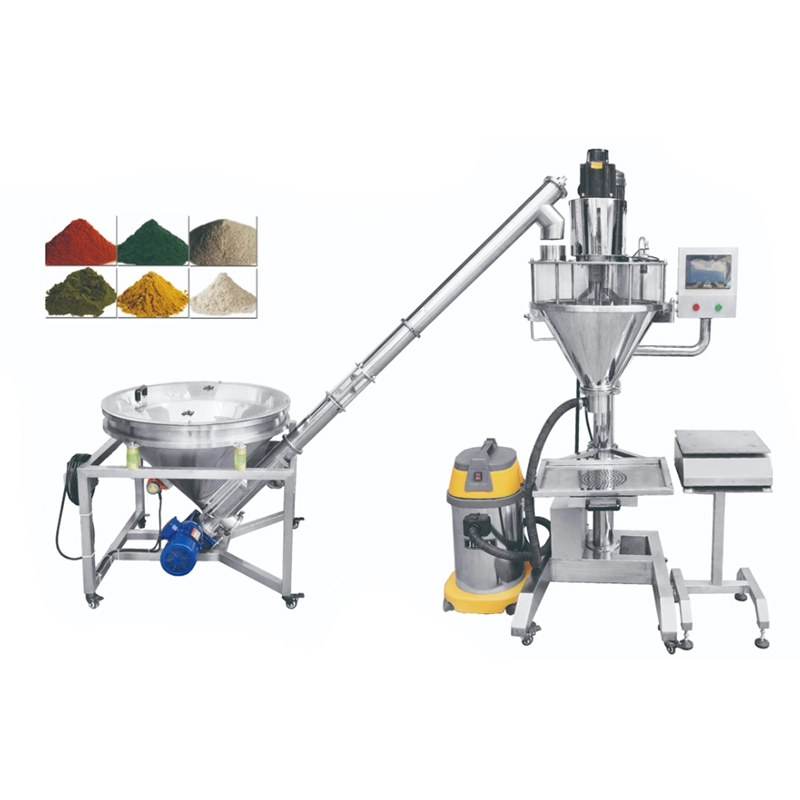

Semi-Automatic Screw Filling Machine RF-GEF50C
The series of packing machine can finish the work of measuring, filling, etc. Because of itsunique design,it is more suitable for packing powder granular materials such as flour cocoa powder, solid beberage, sugar, cotton sugar, monosodium glutamate, solid beberage, veterinary medicine, glucose, solid medicine, etc. Powder additive, carbonpowder, powder, pesticide, dye, flavor and so on.
Features
All stainless steel structure, combination or open type material hopper, easy assembly dismantling and convenient cleaning no need tools.Servo motor and servo drive to control screw. PLC control, touch-screen human-machine interface, easy to operate.
It is designed as a weighting feedback weight tracking mode, which overcomes the shortcoming of packaging weight change caused by material ratio change. A variety of product adjustment parameters can be stored, Store up to 10 formulations Replace spiral accessories, can adapt to ultra-fine powder to small particles and other materials.
Specification
SENI-AUTOMATIC SCREW FILLING MACHINE can finish the work of measuring, filling, etc
|
Model |
RF-GEF50C |
|
Material hopper |
Combined transparent material hopper 50L |
|
Matering mode |
Screw metering/Down weighing feedback metering/Clip bag weighing metering(optional) |
|
Packing weight |
1g-5kg |
|
Packaging accuracy |
≤100g, ≤±2%;100-500g, ≤±1%(Depend on the characteristics of the material) |
|
Filling speed |
10-40 bag/min (Depend on the feeding speed by workers, generally can do 20-35 bags/min) |
|
Voltage |
3p AC208-415V 50/60Hz |
|
Hopper Volume |
800*790*1900mm |
|
Total Power |
1500w |
|
Weight |
150kg |
Product details
