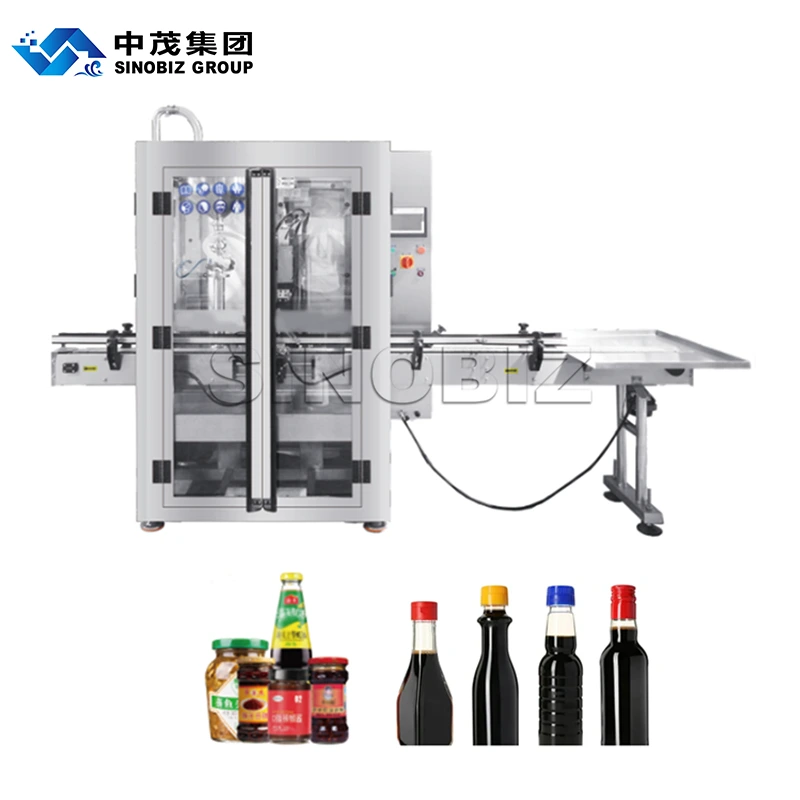

The RF-GHS-1/AF-GSF-2 Single-Head High-Speed Filling Machine is an automatic piston-type filling device that complies with GMP standards. Boasting core advantages of precision, high efficiency, intelligence and user-friendliness, it is widely suitable for product filling needs across multiple industries including food, daily chemicals, pesticides and fine chemicals. Equipped with Mitsubishi (Japan) PLC programmable control and a touch screen interface, the machine automatically completes the entire process of bottle feeding, positioning, filling and discharging, featuring intuitive operation and greatly reducing manual intervention.

In terms of filling performance, both models support a capacity range of 50–1000ml with a high filling accuracy of ±1%. Combined with lapping-grade filling cylinders and a proprietary leak-proof filling valve design, liquid leakage is fundamentally eliminated. The lifting-type filling method effectively reduces foam generation, ensuring the cleanliness and uniformity of material filling. For different production scenarios, the machine can be customized with bottle positioning devices according to actual bottle types. It also has the functions of no-filling when no bottles are present and auto-stop in case of bottle shortage, which avoids material waste and improves production continuity.

In terms of quality and safety, all material-contacting parts are made of 304 stainless steel, complying with hygiene and safety standards. The tool-free disassembly design enables convenient online cleaning or high-temperature sterilization for efficient maintenance. Core components include Schneider (France) frequency converters and high-quality Taiwan-sourced pneumatic parts, delivering superior stability and long service life. An optional glass protective cover is available to further ensure production safety. In terms of capacity adaptability, the RF-GHS-1 model achieves a filling speed of 20–40 bottles/minute (based on 100–500ml), while the AF-GSF-2 model reaches 10–20 bottles/minute. The speed can be flexibly adjusted according to production capacity requirements, balancing high-efficiency production and precise control. It is an ideal choice for standardized filling in multiple industries.
