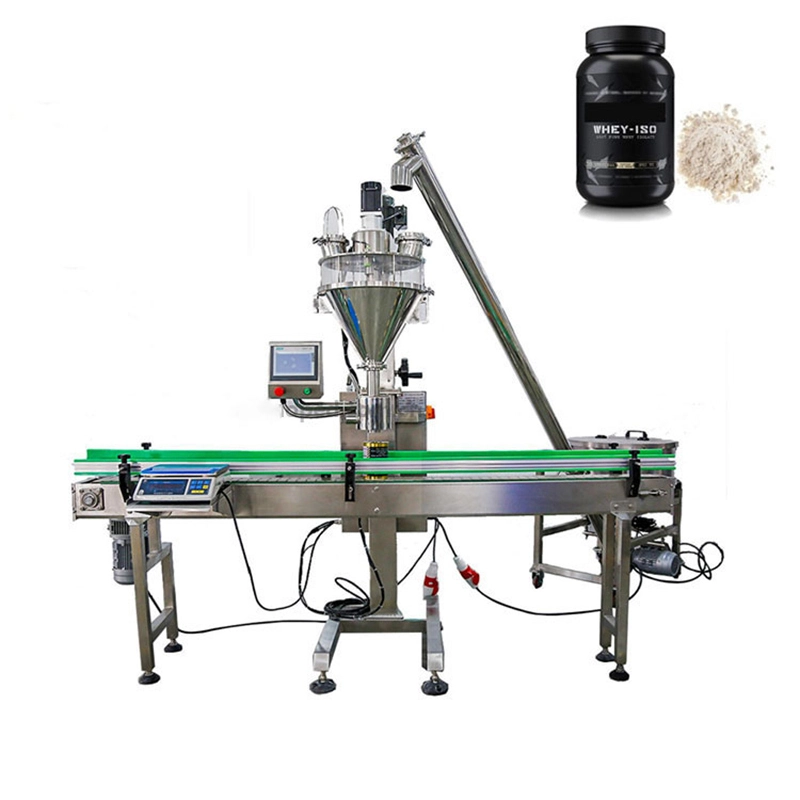

Automatic Powder Filling Machine Suitable for food etc SN-2A
Application:
The SN-2A automatic powder filling machine is our basic model auto powder filling machine, a complete, economical solution to your filling production line requirements.
It can complete bottle positioning, powder filling and counting functions, it consists of a screw blanking machine, conveyor belt and pneumatic positioning system. Suitable for food, feed, pesticide, etc.
Features
Technical Parameters
|
Items |
Parameters |
|
Model |
SN-2A Automatic powder filling machine |
|
Power supply |
380/220V 50/60Hz 1.5Kw |
|
Filling range |
10-500g |
|
Filling accuracy |
<1% (according to the powder material) |
|
Filling speed |
12-25bottles/min |
|
Machine dimension |
2440*700*1770mm |
|
Machine weight |
240kg |
Auger conveyor
|
Technological parameters |
|
|
Capacity |
3-5m3/h |
|
Machine weigh |
150kg |
|
Hopper size |
230L |
|
Machine Power |
1.8KW |
|
Conveyor Height |
1.8M |
|
Power Supply |
380V 50HZ |
|
Diameter of tube |
114MM |
|
Material |
SUS304 |
Machine display
Product Details
