BTB-290 Transparent Film 3D Packaging Machine is Suitable for the Pharmaceutical Cosmetic and Food Industries.
Overview
This machine is suitable for automatic film packaging (with gold thread) of single boxed items in various industries. The machine frame is made of stainless steel, with a floor-standing multi-door safety structure and a flat-push box-pushing structure, making mold changing simple. Multiple distance adjustments are made manually, greatly saving mold changing time. The film is fixed with an air-expanding roller, making film changing even simpler and faster.
Main Technical Parameters
1. This machine is a fully automatic high-speed transparent film packaging equipment. It adopts a flat-push packaging method, and all wrapping and heat-sealing actions are completed by cam drive, featuring high speed and stable operation.
2. Different sizes of items can be packaged simply by changing the mold. A newly designed quick-adjustment structure makes mold changing simple and quick.
3. This machine uses an all-aluminum alloy film cutter holder and a single-rotation film cutter, ensuring precise and flat cutting. No need to change the film cutting mechanism for products of different sizes.
4. Packaging speed is adjusted by a frequency converter, reaching 30-70 packs/minute depending on the packaged items.
5. Equipped with a double-sided wrinkle-reducing device, making the film packaging more form-fitting and aesthetically pleasing.
6. The new quick-release pull-string spool features a composite self-adhesive laser anti-counterfeiting sealing line, truly providing anti-counterfeiting and moisture-proof functions.
7. It has two feeding mechanisms: automatic feeding and manual feeding. The automatic feeding mechanism can be integrated with a fully automated unmanned production line.
8. The automatic feeding mechanism has a box-out stop function, and is equipped with a jamming torque overload protection device and a double-layer blowing auxiliary film lowering device.
9. It adopts an imported stainless steel one-piece panel, with an integrated electrical box mounted on the top and a car tailgate-style all-aluminum electrical box door.
10. The entire machine is equipped with an acrylic safety guard.
Main technical parameters
| Packaging Materials | BOPP cigarette film and gold pull cord |
| Packaging Speed | 30-70 packs/minute |
| Maximum Packaging Size | (L)60-260×(W)30-160×(H)15-70mm (Length + Height (mm) ≤280, Width + Height (mm) ≤180) |
| Power Supply and Total Power | 220V 50Hz 5kw |
| Machine Weight | 380kg |
| Machine Dimensions | (L)2450×(W)850×(H)1700mm |
Samples

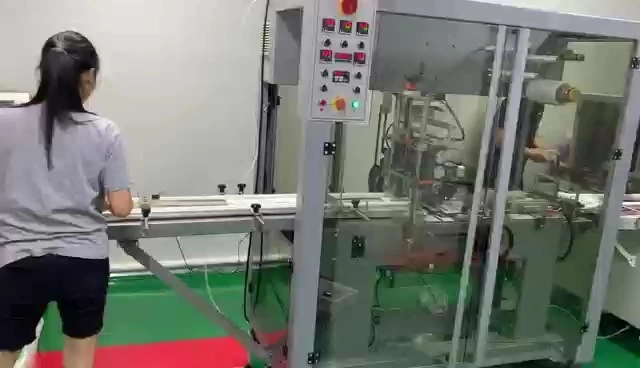

Mechanical Images
