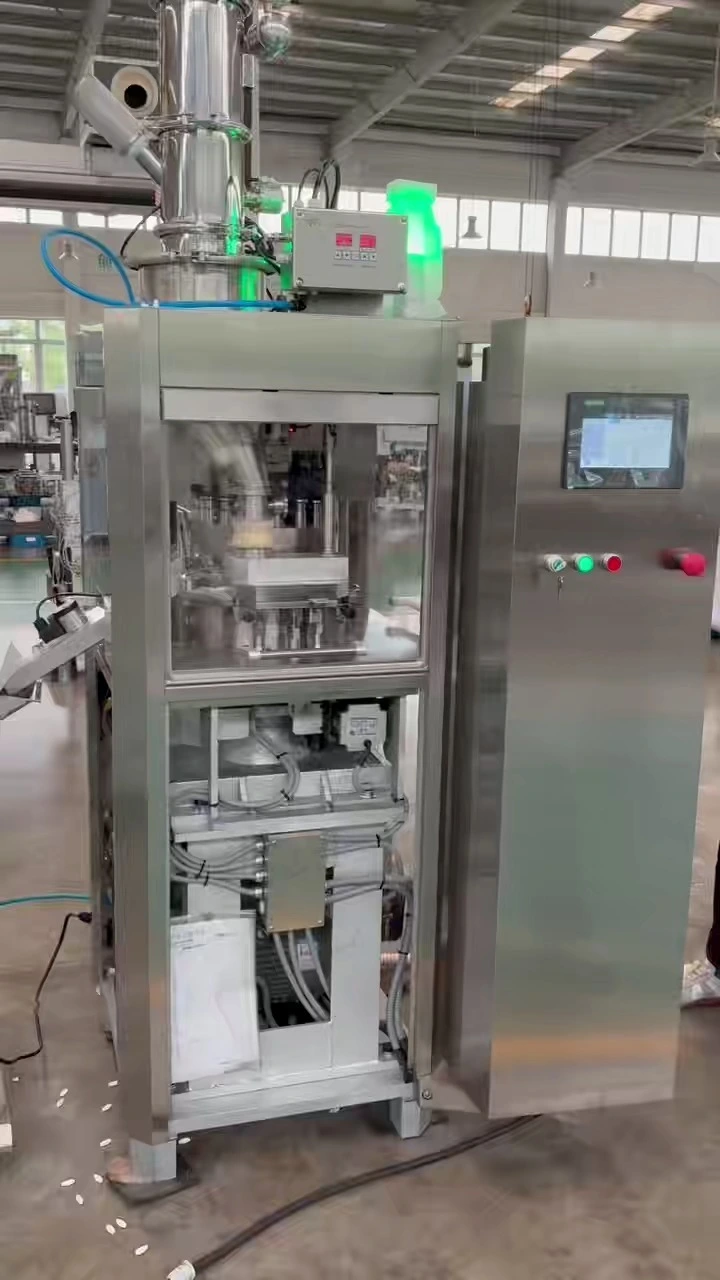

ZPT-15 High Speed Rotary Tablet Press Machine
Introduction:
ZPT15 Tablet Press Machine which totally meet GMP, ISO, and USA FDA requirement. This machine is very nice, decent, and easy to operate, especially the electrical control cabinet is independent from machine, which meet the requirement of FDA and CE, regarding to the safety of the operator.
Features
1. Small Size, Light Weight
2. Less Punches, Fast Speed, The Rotating Speed is 77 circle/Min . Easy to change mould and cleaning .
3. Adopt High speed punches, It can bear Big Pressure & wear-resisting in High speed .The Life is 10 times than Low Speed punches.
4. PLC Control Systerm, All the Control can be operated Through HMI.
Automatic Feeding Oil .
5. Stainless steel main machine housing.
6. The contact Parts with powder is 316L. All the Cover is 304. The Rotary Cover is handled specially to make it varnish. According to GMP.
7. There are special oil-leak proofs and dust proof devices installed in die holes.
8. No-handwheel operating system
Applications
Detail photos
Technical parameters
Model | ZPT15 |
Punch & die type(EU) | D |
Number of dies | 15 |
Max diameter of tablet (mm) | 25 |
Max diameter of abnormal tablet(mm) | 25 |
Maximum pre-pressure (KN) | 12 |
Maximum main pressure (KN) | 100 |
Maximum filling depth (mm) | 20 |
Max output (t/h) | 70000 |
Idle load noise dB(A) | <75 |
Power of main motor (KW) | 380V 50HZ 5.5KW |
Size of machine (mm) | 660×690×1620 |
Net weight of machine (kg) | 675 |
