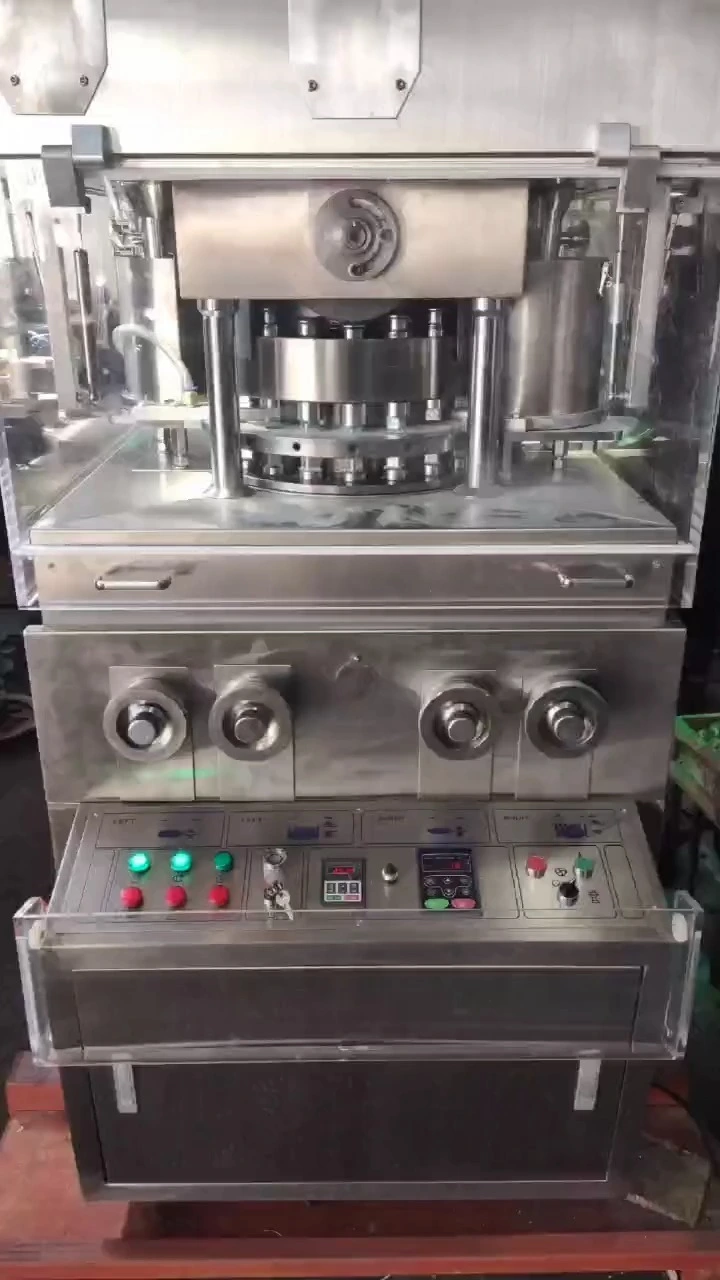

ZPW19 Dual-Color Dishwashing Tablets Press Machine
This machine is a rotary series tablet press, with high pressure, in line with GMP requirements and excellent performance. It is suitable for pressing powder and granular materials of all kinds of food, medicine and chemical industry, such as washing block, dishwashing block, cleaning effervescent tablet, chicken essence block and so on. The equipment can also be customized and designed as touch screen control according to customer requirements.
Features
Technical parameters
| Dies (sets) | 19 |
| Max. Pressure (KN) | 130 |
| Max. dia. of tablet (mm) | 40 |
| Max. Thickness of largest tablet (mm) | 15 |
| Max. Depth of fill (mm) | 30 |
| Max. production capacity(pcs/h) | 20500 |
| Rotational diameter(mm) | 545 |
| Rotational speed of revolving table(r/min) | 18 |
| Diameter of middle mould (mm) | 55 |
| Highness of middle mould(mm) | 30+3 |
| Diameter of up and low punch pole (mm) | 42 |
| Length of the upper punch pole (mm) | 175 |
| Length of the lower punch pole(mm) | 180 |
| Overall dimensions(mm) | 1230*950*1900 |
Samples
Mechanical Images
