16 Channels Automatic Capsule/Tablet/Pill/Softgel Counting Machine
Equipped with 16 independent channels, this counting machine accurately sorts and counts capsules, tablets, pills, and softgels simultaneously, improving processing efficiency. It supports high-speed operation while minimizing counting errors, making it suitable for pharmaceutical and nutraceutical production lines.
Description:
The GS series automatic capsule counting machine is manufactured with high-response PLC and advanced European and American photoelectric induction technology. Exquisite appearance, beautiful appearance, convenient maintenance; widely used in manufacturing.
Counting and filling of solid preparations in medicine and health products, food, pesticides, chemicals and other industries. Such as: tablets, soft and hard capsules, candies, etc.
This machine can be used as a stand-alone machine, and can also form a complete bottling production line with other bottling equipment produced by our company.
The basic models of GS series electronic counting machine are GS-8, GS-16, GS-24, etc. In order to adapt to the requirements of different counting capacity.
Features:
1. The number of tablets has a wide range of applications. The same equipment can pack several tablets of products of different specifications and sizes. It is easy to switch between different specifications and easy to adjust;
2. Adopt independent optical detection system to ensure high-level counting accuracy and speed;
3. Three-stage vibration feeding is adopted, each stage can be independently adjusted, the capsule flow speed is faster, more uniform and smooth;
4. The surface is made of stainless steel, which is easy to clean and has no dead ends;
5. Equipped with a lack of bottle, blocked bottle detection system, no bottle, blocked bottle automatically shut down;
6. Using intelligent design, various operating parameters can be set directly on the man-machine interface as needed;
7. Automatic fault diagnosis, comprehensive real-time monitoring, alarm and display;
Technical parameters
Model | 16 Channels Automatic Capsule Counting Machine |
Application | Φ00~5# capsule; soft capsule; Φ5.5-12 compressed tablet; special-shaped tablet, sugarcoated tablet, Φ3～12 pill, etc. |
Capacity | Max.8000pcs/min (480kpcs/h) |
Filling volume | 1~9999 granules each bottle |
Power source and consumption | AC220V 50/60Hz 1.6kw |
Filling precision | >99.5% Over industry standard |
Air pressure | 0.5-0.7Mpa |
Machine/Package dimension | 2300*2000*2100mm |
Net/Gross weight | 550/650kg |

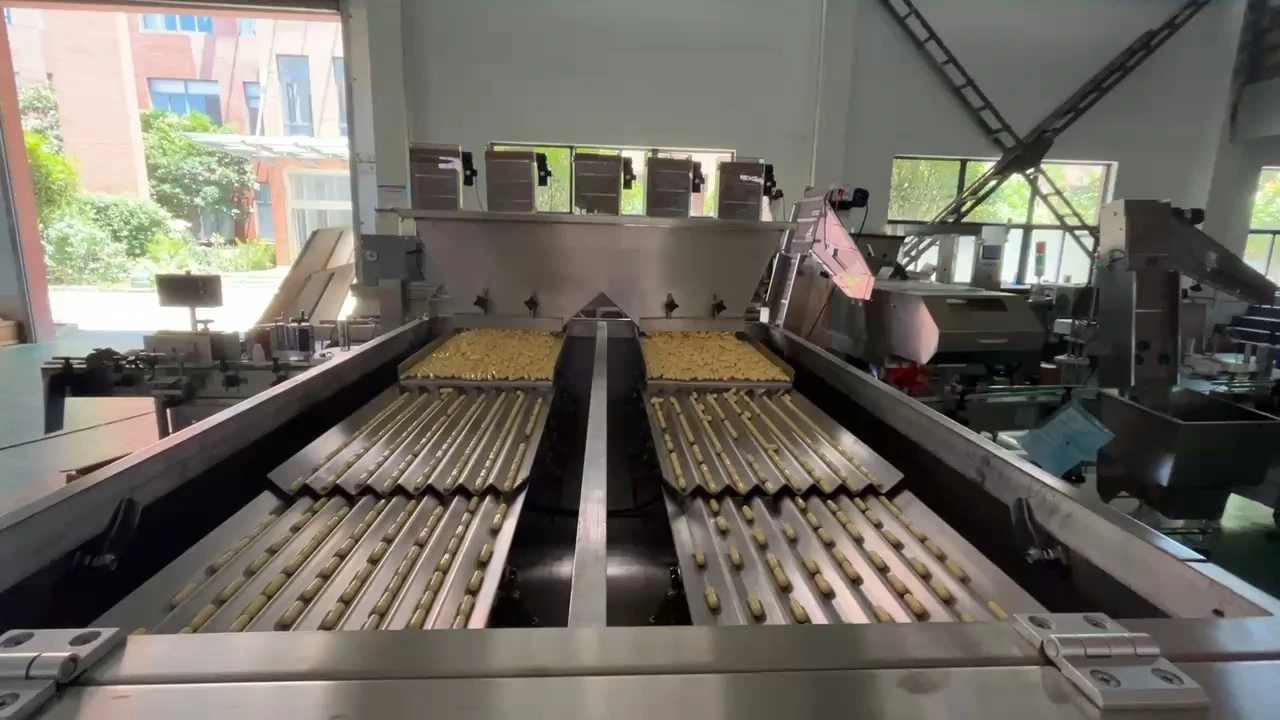

Mechanical Images
