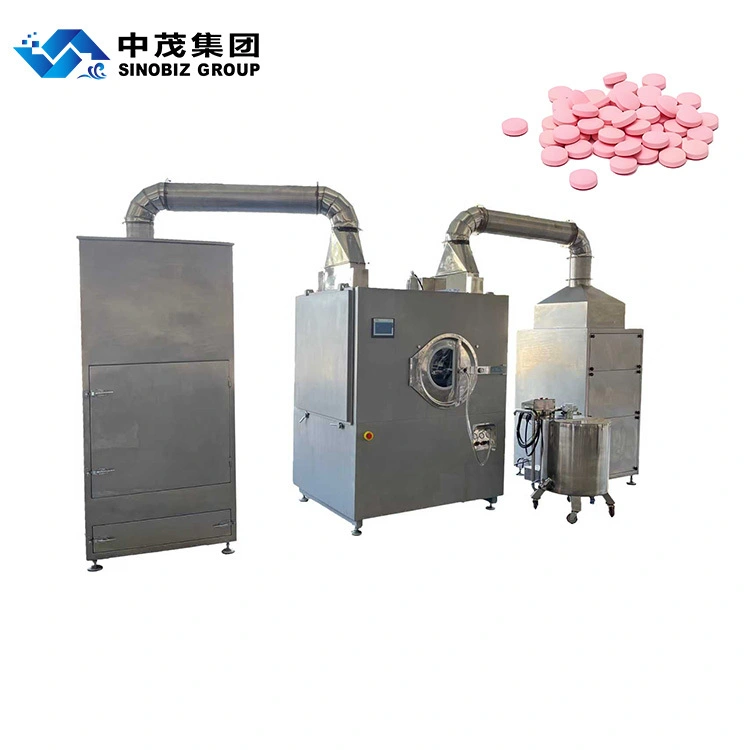

BG-150 Highly Efficient Coating Machine for Tablet
In the film coating machine, the pills and tablets go through a complex and continuous path within a clean and enclosed drum, smoothly rotating and frequently changing positions. The coating materials from the stirring tank are sprayed onto the tablets using a spray gun, powered by the peristaltic pump. Meanwhile, under the action of air exhaust and negative pressure, the clean hot air from the hot air cabinet is expelled through the fan at the sieve pore, passing through the tablets. This process helps dry the coating materials on the tablet surfaces,resulting in a strong, fine, and smooth film.
Features
Technical parameters
Model | BG-150 | |||
Max. loading volume | 150L / batch | |||
Capacity(as per specific gravity:0.8) | 120kg/batch | |||
Coating drum speed | 1-16 r.p.m | |||
Supply voltage | 3P 380V 50Hz | |||
Main machine motor power | 2.2 kw | |||
Exhaust cabinet motor power | 5.5 kw | |||
Exhaust blower air flow | 7419 m3/h | |||
Hot air cabinet motor power | 1.5 kw | |||
Air heater air flow | 2356 m3/h | |||
Air heater temp.-adj. range | ~ 80 ℃ | |||
Hot air cleanness | 100,000 level | |||
Pump motor power | 0.55kw | |||
External dimensions of host machine(mm) | 1570×1260×2030 | |||
Host machine weight | 1020kg | |||
External dimensions of hot air cabinet(mm) | 1000×900×2300 | |||
Hot air cabinet weight | 420kg | |||
External dimensions of exhaust cabinet(mm) | 950×950×2200 | |||
Exhaust cabinet weight | 530kg | |||
External condition | Clean air | Pressure | ³0.4Mpa | |
Air consumption | 1m 3/min. | |||
Steam heating | steam | Pressure | ³0.4Mpa | |
Air consump. | 100kg/h | |||
Power source | 3 phase and 5 lines 10 kw | |||
Electric heating | Power source | 3 phase and 5 lines 38 kw | ||
Samples
Mechanical Images
Configuration list
Item | Brand |
Touching screen | Siemens |
Microcomputer programmable controller | Siemens |
Inverter | |
Temperature model | Siemens |
Spray gun | Japanese Iwata |
Mini type relay | Schneider |
AC contactor | Schneider |
Heat relay | Schneider |
Air switch | Schneider |
Main Breaker | Schneider |
Switch power | Mingwei |
Pressure difference sensor | Beijing |
Explosion-proof reducer | Zhejiang |
Explosion-proof motor | Zhejiang |
Heat sensor | China |
Explosion-protecting hole-observing light | China |
Pneumatic element | Taiwan AirTAC |
Centrifugal fan | China |
Electricity motor | China |
Primary filtration | China |
Medium filtration | China |
High filtration | China |
Explosion-protecting Centrifugal fan | China |
Explosion-protecting electricity motor | China |
Filtration cloth | China |
