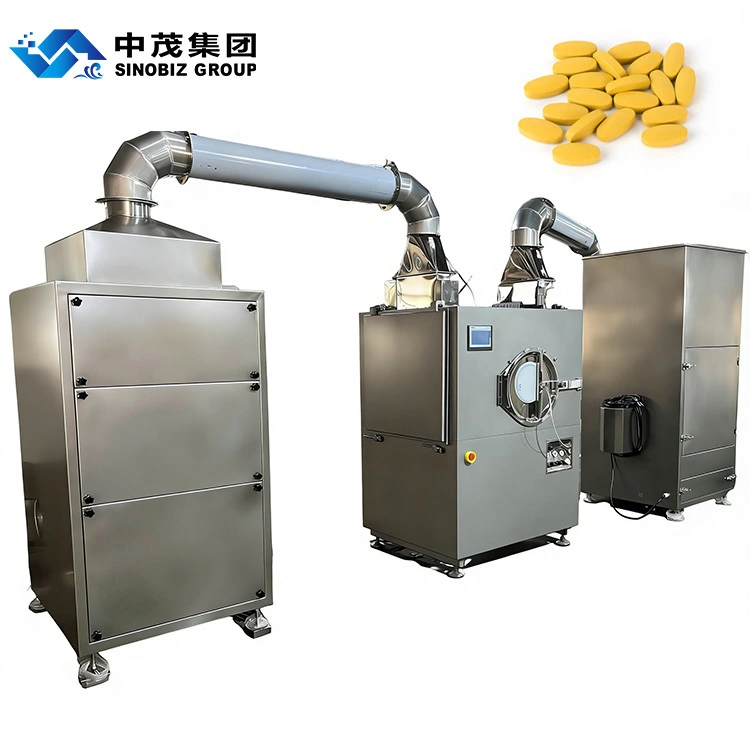

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry 1

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry 2

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry 3

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry 4

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry 5

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry 6

BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry

Name: BG-80 Highly Efficient Coating Machine for Pharmaceutical Industry
Brand: Sinobiz Machinery

tablet film coating machine BG-80 model

In the film coating machine, the pills and tablets go through a complex and continuous path within a clean and enclosed drum, smoothly rotating and frequently changing positions. The coating materials from the stirring tank are sprayed onto the tablets using a spray gun, powered by the peristaltic pump. Meanwhile, under the action of air exhaust and negative pressure, the clean hot air from the hot air cabinet is expelled through the fan at the sieve pore, passing through the tablets. This process helps dry the coating materials on the tablet surfaces,resulting in a strong, fine, and smooth film.

Delivery date:

60 days

Payment terms:

EXW FOB CIF

Guarantee period:

1 year

Inquiry

Write a Review

Features

The machine adopt a new microcomputer PLC module, all parameter settings such as hot air temperature, air volume control, and drum speed adjustment etc which are operated through the touch screen. The touch screen is fully sealed, ensuring that the main machine remains unaffected during cleaning. It is reliable and stable in performance, with programmable capabilities. The coating drum is driven in a clockwise direction by an explosion-proof motor via a cycloidal pinwheel.

The exhaust outlet is equipped with an adjustable device, allowing even a small amount of tablets to undergo the coating in the coating pan. It also has an anti-backflow function, preventing the return of waste gas from the exhaust cabinet.

Features

The air is drawn in by a centrifugal fan and can be heated and dried using either a steam heat exchanger or an electric heat exchanger. Additionally, it is filtered by a three-effect filter, achieving a purification level of 100,000, and then blown into the main machine's drum. The machine is equipped with anti-vibration and silencer device. The temperature and air flow can be adjusted via the touchscreen.

The exhaust cabinet is used to extract air from the machine drum and keep a negative pressure within the working area. It is equipped with an automatic mechanical vibrating fabric dust collector that achieves a 99% dust removal efficiency and effectively separates residual dust to prevent it from spreading. The system is easy to clean, and the exhaust emissions comply with environmental regulations.

Features

Spray gun adjustment: It’s can adjust the distance and spraying angle between the spray gun and the tablet, as well as the air pressure and flow rate, to meet variousrequirements as needed. Additionally, you can set the spray rate and mode to achieve more precise and flexible coating operations.

Syrup pump (frequency speed adjustment) with impeller drive structure, enhanced the pump's power, It effectively handles the thick liquid coating process in sugarcoating, resolving the issue of peristaltic pumps inefficiently transporting viscous liquids. It is suitable for coating the syrup.

Technical parameters

Model				BG-80
Max. loading volume				80L / batch
Capacity(as per specific gravity:0.8)				65kg/batch
Coating drum speed				0-19 r.p.m
Supply voltage				3P 380V 50Hz
Main machine motor power				1.5 kw
Exhaust cabinet motor power				3 kw
Exhaust blower air flow				5268 m3/h
Hot air cabinet motor power				1.1 kw
Air heater air flow				1685 m3/h
Air heater temp.-adj. range				~ 80 ℃
Hot air cleanness				100,000 level
Pump motor power				0.55kw
External dimensions of host machine(mm)				1370x1030x1950
Host machine weight				680kg
External dimensions of hot air cabinet(mm)				900x800x2000
Hot air cabinet weight				400kg
External dimensions of exhaust cabinet(mm)				900x820x2100
Exhaust cabinet weight				500kg
External condition	Clean Air	Pressure		³0.4Mpa
		Air consumption		0.7m3 /min.
	Steam heating type	Steam	Pressure	³0.4Mpa
			Air consump.	80kg/h
		Power source		3 phase and 5 lines 6 kw
	Electric heating type	Power source		3 phase and 5 lines 32 kw

Finish Product

Mechanical Images

31 (3)

32 (2)

33 (2)

34 (2)

35 (2)

Configuration list

Item	Brand
Touching screen	Siemens
Microcomputer programmable controller	Siemens
Inverter	Panasonic/Danfoss
Temperature model	Siemens
Spray gun	Japanese Iwata
Mini type relay	Schneider
AC contactor	Schneider
Heat relay	Schneider
Air switch	Schneider
Switch power	Mingwei
Pressure difference sensor	Beijing
Explosion-proof reducer	Zhejiang
Explosion-proof motor	Zhejiang
Heat sensor	China
Explosion-protecting hole-observing light	China
Pneumatic element	Taiwan AirTAC
Centrifugal fan	China
Electricity motor	China
Primary filtration	China
Medium filtration	China
High filtration	China
Explosion-protecting Centrifugal fan	China
Explosion-protecting electricity motor	China
Filtration cloth	China
