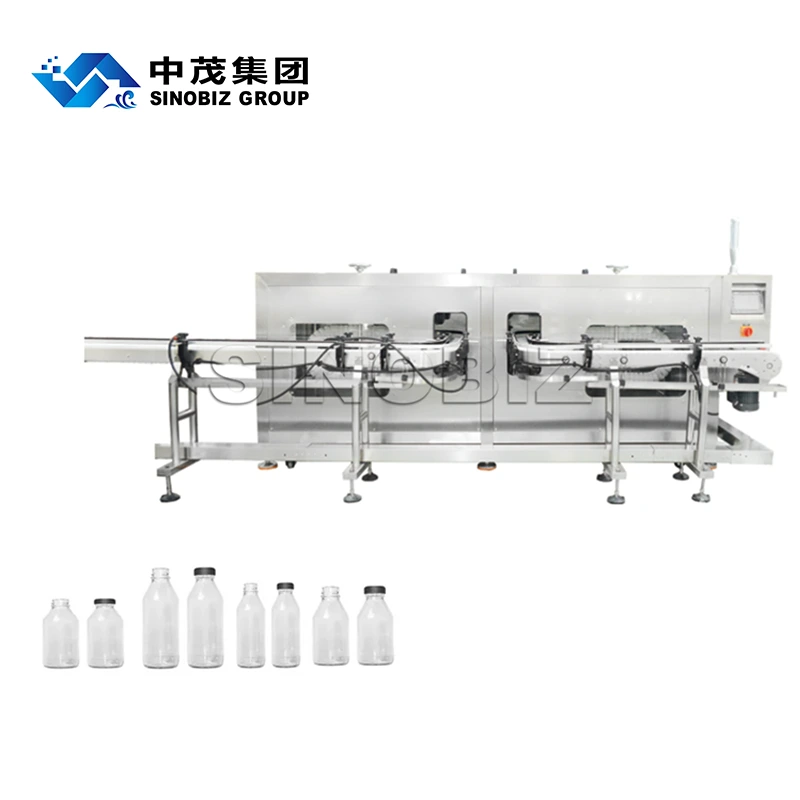

Bottle Washer Bottle Holding Belt plus Conveyor Belt with Dual Water-Gas Cleaning System
SD-40P Bottle Washer mainly composed of bottle holding belt, conveyor belt and two water and two gas cleaning structure
The SD-40P Bottle Washer is an efficient cleaning equipment specially designed for food, daily chemical, canned beverage, condiment and other industries. It is mainly composed of a bottle holding belt, a conveyor belt and a dual water and dual air cleaning structure. It can not only complete bottle washing operations independently but also be used with filling lines, adapting to diverse production needs.
The equipment adopts an automatic cleaning process: bottles are transported to the conveyor belt via the bottle holding belt, then flipped into the cleaning system by the bottle holding device. The water washing process is completed by injecting water under pressure through a sanitary pump, and then the spray pipe is inserted into the bottle to blow and rinse, synchronously realizing the whole process of water washing, gas washing, disinfection, hot and cold cleaning, and drying. The bottle washing cleanliness is high, with a single bottle flushing time of only 1.5 seconds, and the cleaning efficiency is outstanding.
The product has strong versatility and convenience. It is suitable for containers of different materials and shapes such as glass bottles and PET plastic cans. Changing bottle types does not require replacing parts, and it can be quickly adapted with only simple adjustments. The operation process is simple and maintenance is convenient, which can stably meet the needs of large-scale production, making it an ideal cleaning equipment for modern canned production enterprises. The equipment’s bottle washing capacity can reach 80-150 bottles per minute, with a spray pressure range of 0.2-0.8mpa, featuring stable and reliable performance, fully guaranteeing production efficiency and cleaning quality.
Features
Dual Water & Dual Air Cleaning Structure with High Cleanliness: Adopts a combined dual water and dual air cleaning structure, matched with a sanitary pump pressure design. The spray pipe is inserted deep into the bottle for precise flushing, synchronously completing the whole process of water washing, gas washing, disinfection, hot and cold cleaning, and drying. The single bottle flushing time is only 1.5 seconds, with excellent bottle washing cleanliness, fully meeting the hygiene requirements of various industries.
Flexible Adaptation with Strong Versatility: It can be used for independent bottle washing or supporting filling lines, suitable for containers of different materials and shapes such as glass bottles and PET plastic cans; changing bottle types does not require replacing parts, and it can be quickly adapted with only simple adjustments, greatly improving production flexibility and equipment utilization.
High-Efficiency Capacity for Large-Scale Production: The bottle washing speed can reach 80-150 bottles per minute, with a spray pressure range of 0.2-0.8mpa. The capacity is stable and controllable, which can efficiently match the large-scale production needs of food, daily chemical, canned beverage, condiment and other industries, improving the efficiency of the overall production line.
machine and products
Features
Easy Operation and Simple Maintenance: The equipment operation process is simple and easy to understand, with convenient daily maintenance; the core structure is reasonably designed without complex and vulnerable parts. Changing bottle types does not require professional technicians, and ordinary operators can complete the adjustment, reducing production operation and maintenance costs.
Multi-Industry Adaptation with Wide Application Scenarios: Complying with the cleaning standards of multiple industries such as food, pharmaceutical, daily chemical, canned beverage, condiment, etc., it can meet the disinfection, cleaning and drying needs of different types of containers. It is an ideal cleaning equipment for modern canned production enterprises, with diverse and practical application scenarios.
Main technical parameters
| Model |
SD-40P |
|
Bottle Washing Capacity |
80-150 bottle/min |
| Spray Pressure |
0.2-0.8mpa |
|
Bottle Flushing Time |
1.5s |
|
Dimension |
4200*1400*2500 |
|
Weight |
1500kg |
