High Efficiency Robot Collaborative Palletizing Workstation for Logistics and Manufacturing

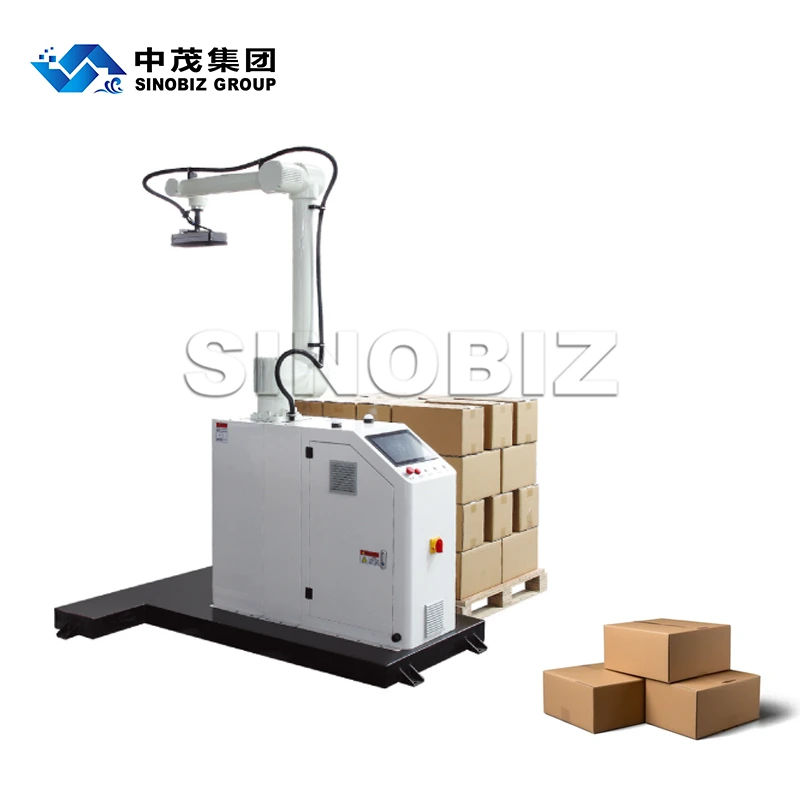

Robot Collaborative Palletizing Workstation
The Robot Collaborative Palletizing Workstation is an intelligent automation solution designed to revolutionize material handling and palletizing operations. Built with a high-rigidity structure and high-speed intelligent palletizing process, it delivers a 20% efficiency boost and supports a maximum stacking height of 2.5 meters, enabling rapid, cost-effective production.Equipped with multiple industry-specific process packages, user-friendly programming software, and advanced collision detection, this workstation empowers operators to easily tackle diverse process challenges while ensuring a high level of operational safety. With a load capacity of 30/40kg, a repeatability of ±0.6mm, and a stacking speed of 300–500 cycles/hour, it delivers precision and reliability for heavy-duty tasks.
features
High-Rigidity Structure & High-Speed Intelligent Palletizing Process: The workstation features a high-rigidity structure and high-speed intelligent palletizing process, which increases efficiency by 20% and allows a maximum palletizing height of 2.5 meters, helping customers complete work quickly, efficiently, and cost-effectively.
Multi-Industry Process Integration & Easy-to-Learn Programming: Integrated with multiple industry-specific process packages, combined with easy-to-learn programming software, industrial control systems, and various bus interfaces, it helps customers easily face various process challenges.
High-Performance Collision Detection & Enhanced Safety Factor: The high-performance collision detection function effectively avoids equipment damage and safety accidents, helping to improve the safety factor of the entire workstation.With an IP54 protection grade, it ensures stable operation in harsh industrial environments and enhances operational safety.
Features
Wide Scenario & Industry Applicability: It can be widely used in scenarios such as handling, palletizing, loading, and unloading, and is suitable for industries including automotive parts, photovoltaics, food and beverage, building materials, logistics, and warehousing.
High Precision & Compact Footprint: The repeatability is ±0.6mm, ensuring the accuracy and stability of palletizing operations.The compact design (2200×2000mm) saves valuable workshop space, making it suitable for production lines with limited area.
Stable Load & Electrical System: It supports 30/40kg load options, with a rated voltage of 380V–220V and a maximum power consumption of 10KVA, ensuring stable and reliable operation under heavy loads.The whole machine weight is 360kg, providing a solid foundation for stable operation.
Main technical parameters
|
Model |
ZY-MD30/40 |
|
Load |
30/40kg |
|
Working radius |
2000mm |
|
Specification of pallet |
(500-1300)x(500-1300) |
|
Stacking height |
1500-2400mm |
|
Stacking speed |
300–500 times/h |
|
Repeatability |
±0.6mm |
|
Communication method |
EtherCAT |
|
IP GRADE |
IP54 |
|
Temperature range |
0-55°C |
|
Max. power consumption |
10KVA |
|
Rated voltage |
380V-220V |
|
Whole machine weight |
360kg |
|
Cover an area |
2200x2000mm |
