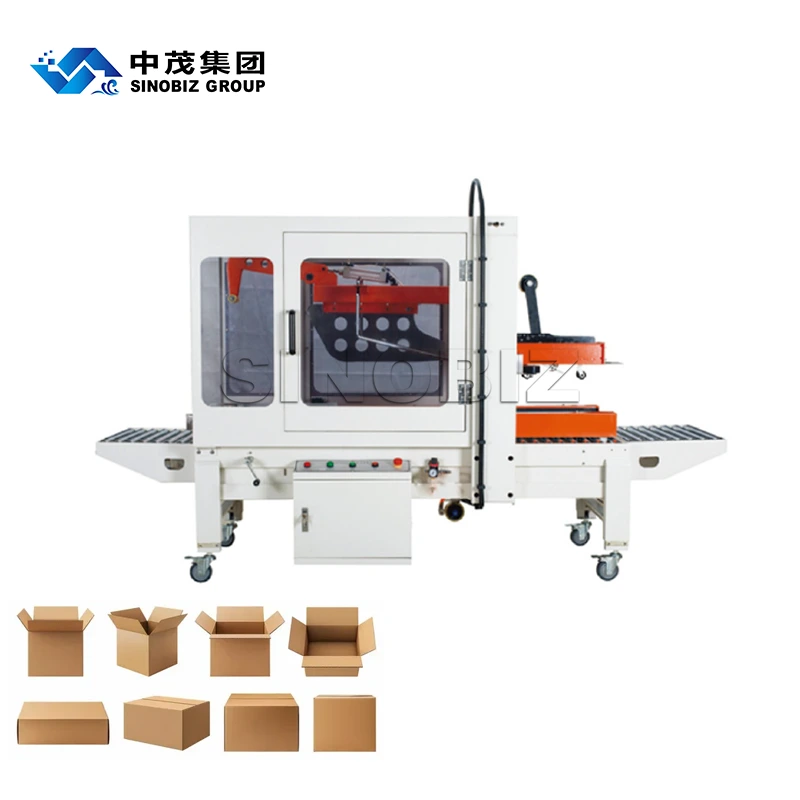

Efficient and Stable FX-600 Automatic Case Sealing Machine High-Speed Carton Sealer Automatic Bottom Sealing Equipment
automatic case sealing machine
features
Ultra-Wide Carton Compatibility, Seamless Fit for All-Size Cartons：No additional modification or part replacement is required; different carton specifications can be switched with one click. It flexibly meets the production demands of multi-SKU, small-batch and multi-batch production, completely solving the industry pain points of narrow compatibility and difficult changeover of traditional case sealers, and greatly improving the flexible adaptation capability of the production line.
720 Cases/Hr High-Speed Operation, Matches High-Speed Line Beat：With a rated case sealing capacity of up to 720 cases per hour, the machine enables 24/7 uninterrupted full-load operation with precise control of operation cycle, no jamming, missing sealing or tape deviation. It can be seamlessly connected to high-speed packaging production lines in food, daily chemicals and other industries.
Full-Automation Sealing Process, Unattended High-Efficiency Operation：It realizes a full-process automated closed-loop operation of automatic conveying, carton positioning, tape sealing and shaping & pressing, with no manual intervention throughout the process, completely replacing manual repetitive case sealing operations. The machine can be directly connected to front-end/back-end automated equipment such as case erecting machines, robotic boxing machines and palletizing robots, building a fully unmanned packaging system of "case erecting → boxing → case sealing → palletizing".
Features
Heavy-Duty Stable Structure + Low-Cost Configuration, High Cost-Performance：Adopting a single-phase 220V/50Hz standard power supply configuration, the air consumption is only 50L/min. The low-energy design significantly reduces long-term operation energy costs, achieving an excellent comprehensive return on investment, and is suitable for large-scale long-term production.
International Standard Compliance, Seamless Overseas Production Line Integration：The whole machine complies with international general electrical standards, and the single-phase 220V power supply configuration meets the industrial power demand of most countries around the world, with no need for additional power adaptation transformation. The machine body is equipped with multiple safety protections such as emergency stop buttons, overload protection and anti-pinch devices, meeting the requirements of international safety standards.
work diagram
Main technical parameters
|
Model |
FX-600 |
|
Applicable Carton Size |
L(200-600)×W(150-500)×H(130-500)mm |
|
Case Sealing Capacity |
Max. 720 cases/h for standard-spec cartons |
|
Power Supply |
Single-phase 220V, 50Hz |
|
Air Source |
50KG/CM2; 50L/min |
|
Machine Dimensions |
L1830×W835×H1640mm |
|
Machine Weight |
Approx. 250KG; Equipped with 4 casters |
packing items
Product details
