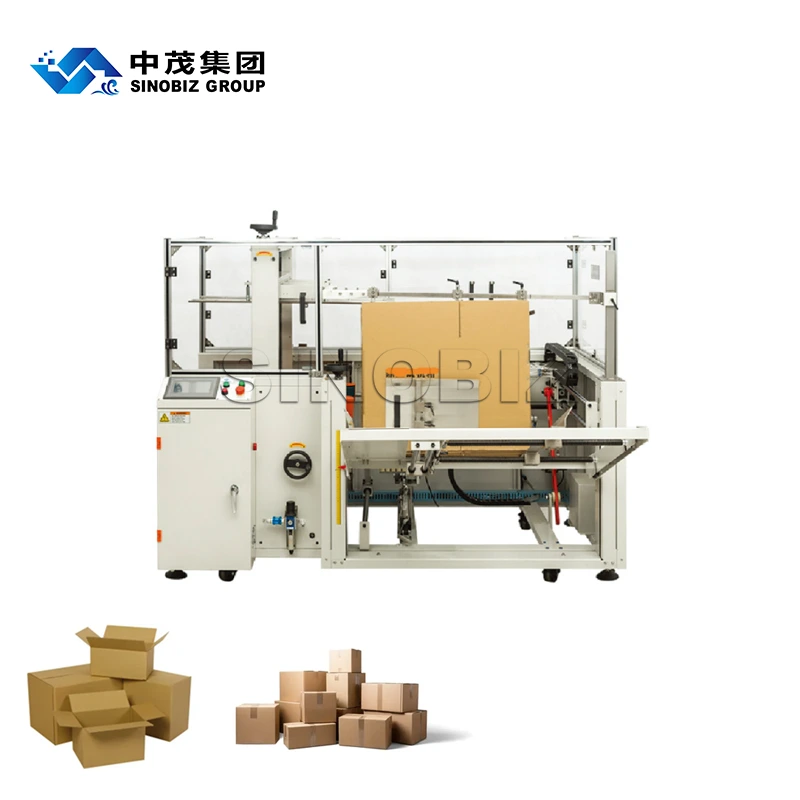

KX-550 Automatic Case Erector Machine High-Speed Carton Former for Food and Daily Chemical Industry
automatic case erecting machine
features
Full-process Automated Carton Forming & Bottom Sealing：The equipment integrates four core processes: automatic material picking, carton forming, bottom folding, and tape sealing. With no manual intervention required throughout the process, it realizes a fully closed-loop automated operation from carton storage to forming and bottom sealing.
High-Speed & High-Capacity Continuous Stable Operation：With a rated output of up to 720 cases/hour (max) and a storage capacity of 100 corrugated cartons per hour, the equipment enables 24/7 uninterrupted continuous operation, perfectly matching the beat of high-speed packaging production lines in food, daily chemicals and other industries.
1-Minute Quick Flexible Changeover：Adopting a one-click parameter recall + modular structure design, it only takes 1 minute to complete changeover debugging for different carton specifications without professional disassembly and debugging.
Features
Low Power Consumption & High Durability, Cost-Saving：Core components are made of wear-resistant alloys and international standard accessories, featuring impact resistance and wear resistance. With a stable operation rate of over 98% and a service life of more than 8 years, it greatly reduces maintenance and replacement costs, achieving an excellent comprehensive return on investment.
International Standard Compliance, Seamless Line Integration：The whole machine equipped with multiple safety protections such as safety fences, emergency stop buttons, overload protection and anti-pinch devices, comprehensively ensuring the safety of operators and equipment. Adopting a standardized electrical interface and conveying system design, it is compatible with global industrial standards and can be seamlessly connected to back-end automated equipment such as robotic boxing, sealing and palletizing.
work diagram
Main technical parameters
| Model | KX-550 |
| Applicable Carton Size | L(180-500)×W(200-450)×H(120-400)mm |
| Case Forming Capacity | 720 pcs/h (Max) |
| Carton Stacking Capacity | 100 pcs/h (Corrugated Carton) |
| Carton Material | General-spec Corrugated Paper |
| Tape Type | OPP; Kraft Tape, 38mm or 50mm Wide |
| Carton Size Changeover | Handwheel Adjustment, ≤ 1 min |
| Power Supply |
Single-phase 220V |
|
Air Source |
0.5MPa (5 Kg/cm²) |
|
Air Consumption |
300L/min |
|
Machine Dimensions |
L2000×W1900×H1450mm |
| Machine Weight |
Approx. 600Kg |
