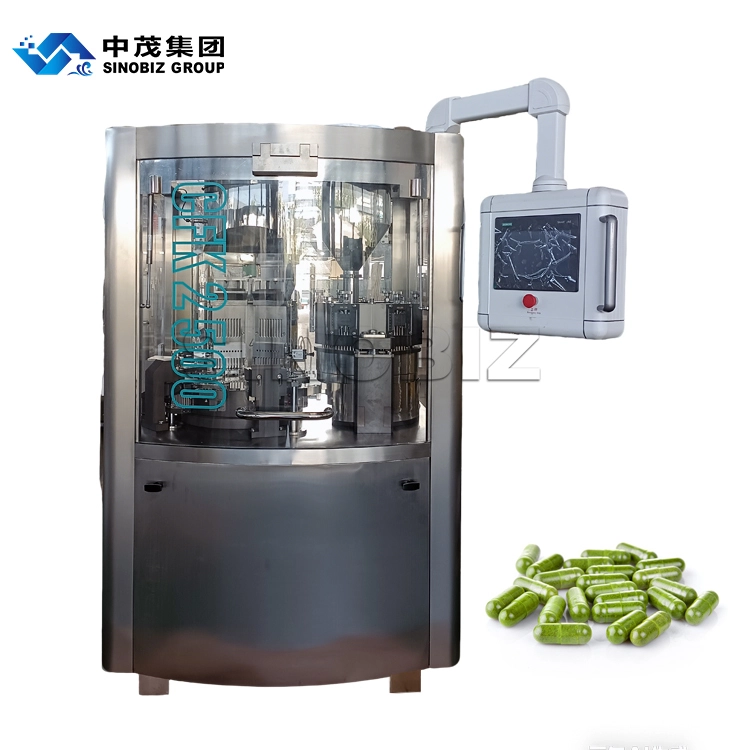

CFK-2500 model fully automatic hard capsule filling machine
This product stands out for its outstanding quality and leading-edge technology, having successfully obtained EU CE certification and UK UKCA certification, while also strictly complying with ISO international standard systems and GMP Good Manufacturing Practice (GMP) certification. The endorsement of these authoritative certifications not only demonstrates that the product meets world-class standards in terms of safety performance, quality control, and production processes, but also reflects our unwavering commitment to excellence in quality.
Since its launch, the product has been successfully supplied to customers in over 100 countries and regions worldwide, serving a wide range of sectors including industrial manufacturing, healthcare, and daily consumer goods. With its stable and reliable performance, superior technical advantages, and comprehensive after-sales service, the product has earned widespread praise and high recognition from customers both at home and abroad. Extensive real-world user feedback and long-term partnerships are a strong testament to its exceptional quality and proven reliability, making it a trusted and dependable choice you can rely on.
Machine descriptions
CFK-2500C fully automatic capsule filling machine is the latest fully automatic capsule filling machine developed by our company. The whole machine is beautiful, stable, low noise, easy to operate and has superior performance. It is the best among similar products.
Machine Features
1. Single-row 11 die holes, 10 stations; high-efficiency single-row punch set filling equipment in China.
2. Original double RU110DF indexing box; enhanced stability & service life.
3. All-station cams improved; special steel inner grooved wheel; eliminates spring fatigue/fracture; wear-resistant & stable.
4. 2nd-gen fully enclosed turntable; dual-shaft motion; imported silicone seal; easy disassembly/cleaning.
5. 3D adjustment (metering disk reference); offsets deformation; less powder leakage; accurate loading (domestic first).
6. Double-row silica gel pads; air-source free; dust-free capsule device.
7. Vacuum positioning; filling rate ≥98%.
8. Added capsule control switch (external operation: safer & convenient).
9. Added inching control; user-friendly for production/cleaning.
10. Modular closed powder filling mechanism; easy disassembly/cleaning.
11. 10-inch color LCD; auto-alarm for multiple abnormalities.
12. Automatic timed refueling system.
13. Optional secondary dehumidification; solves poor dehumidification & operator endurance issues.
14. Optional mold cleaning air-blowing; improves filling rate.
15. Inner cam transmission; increased filling force; quiet & smooth.
16. Multi-curve powder retaining + oblique feeding; uniform distribution; high precision.
17. Capsule locking cleaning device; removes dust during locking.
18. New powder feeding device; compact; easy disassembly/cleaning.
Sample photos
Detail photos
Technical parameters
Items | Parameters |
Model | CFK-2500C Automatic capsule filling machine |
Rated capacity | 150k capsules/hour (2,500 capsules/min) |
Number of die holes | 18 |
Power Supply | 3Phase, 380/220V, 50/60Hz, 8kW |
Vacuum | Pumping rate 120m3/h. -0.03~ -0.05mpa |
Dust | 20Kpa, 210m3/h |
Noise | <75dB(A) |
Making rate | 99.8% |
Suitable for Capsule | 00, 0，1，2，3，4 (5#, 00EL, 0EL customized) |
Machine Dimensions | 1175*1250*1960 mm |
Machine weight | 1500 Kg |
