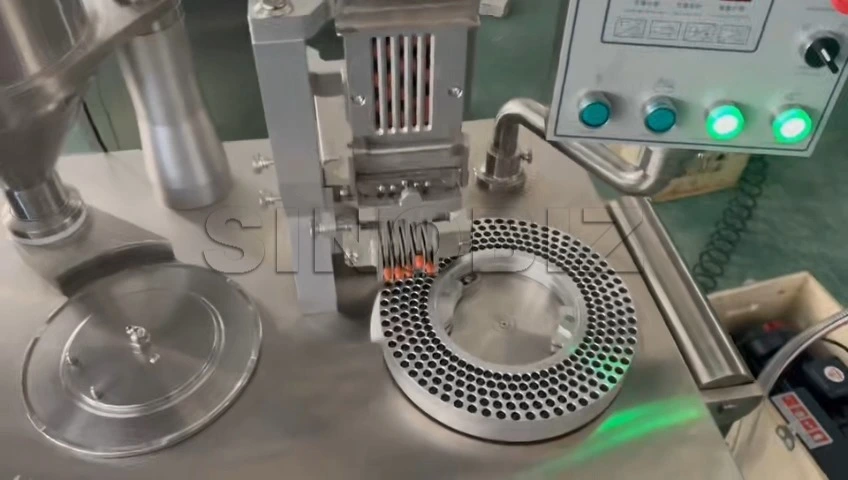

CGN-208D Button type semi automatic capsule filling machine
This product stands out for its outstanding quality and leading-edge technology, having successfully obtained EU CE certification and UK UKCA certification, while also strictly complying with ISO international standard systems and GMP Good Manufacturing Practice (GMP) certification. The endorsement of these authoritative certifications not only demonstrates that the product meets world-class standards in terms of safety performance, quality control, and production processes, but also reflects our unwavering commitment to excellence in quality.
Since its launch, the product has been successfully supplied to customers in over 100 countries and regions worldwide, serving a wide range of sectors including industrial manufacturing, healthcare, and daily consumer goods. With its stable and reliable performance, superior technical advantages, and comprehensive after-sales service, the product has earned widespread praise and high recognition from customers both at home and abroad. Extensive real-world user feedback and long-term partnerships are a strong testament to its exceptional quality and proven reliability, making it a trusted and dependable choice you can rely on.
Product description
This Button type semi automatic capsule filling machine is a new-generation pharmaceutical filling equipment characterized by a sophisticated structure and sleek appearance. Integrating electrical and pneumatic control systems, and equipped with an automatic electronic counter and a computerized speed-regulating device, the machine is capable of completing capsule positioning, separation, locking and other key processes. It replaces manual capsule filling, effectively reducing labor intensity while significantly improving production efficiency. With precise filling dosage and compliance with pharmaceutical hygiene standards, it meets the strict requirements of the pharmaceutical industry.
The machine is composed of the following core components and auxiliary systems: capsule feeding, reversing and separating mechanism, drug-filling mechanism, capsule locking device, electronic variable speed regulating mechanism, electrical and pneumatic control system, safety protection device, as well as supporting accessories including vacuum pump and air compressor.
Features:
(1) High quality hard gelatin semi auto capsule filling machine is controlled by step-less frequency conversion and pneumatic device, and adopts electronic counter.
(2) High quality hard gelatin semi auto capsule filling machine can finish position, separation, filling, locking of capsule, and reduce the labor intensity and improve working efficiency.
Technical parameters
|
Model |
CGN208D |
|
Capacity |
10000-15000 pcs/h |
|
Applicable capsules |
000#, 00#, 0#, 1#, 2#, 3#, 4# |
|
Power |
4kw |
|
Air pressure |
0.03m3/min, 0.7MPa |
|
Vacuum pump |
Evacuating rate: 40m3/h |
|
Dimension |
1140*700*1630mm |
|
Weight |
400kg |
Details
