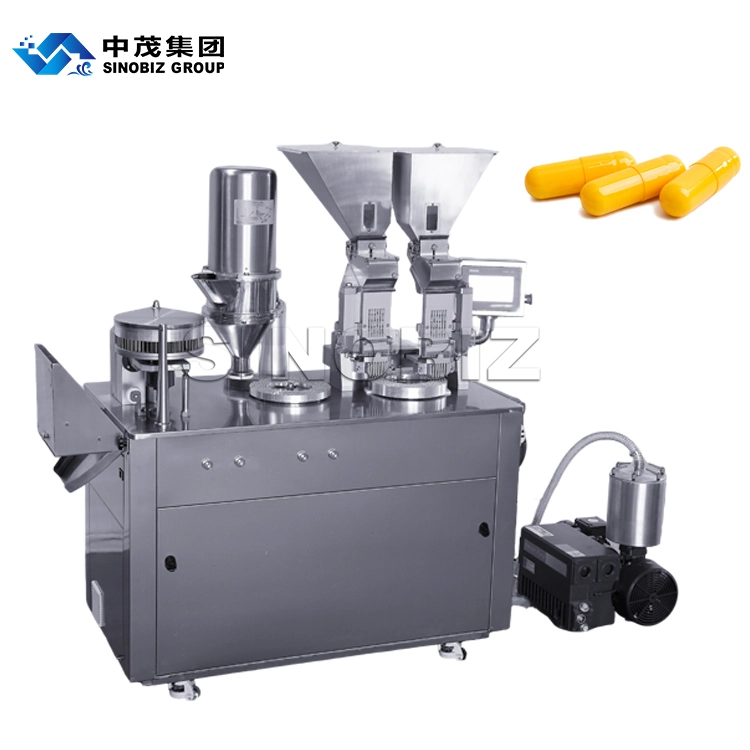

Double Loader Semi Automatic Powder Empty Hard Gelatin Capsule Filling Machine Encapsulation Machine
The dual-head design is the core advantage, enabling simultaneous capsule filling that doubles the efficiency compared to single-head models—delivering 20,000 to 30,000 capsules per hour, perfectly suited for small to medium batch production demands. The intuitive touch screen interface allows one-click parameter setting (filling speed, weight, capsule size), with a built-in memory function for quick recall of frequently used recipes, minimizing operation complexity and human error.
Crafted from 304 food-grade stainless steel, the machine fully complies with GMP, FDA, and CE standards, guaranteeing product safety and easy sanitization. It supports universal capsule sizes (00#, 0#, 1#, 2#, 3#, 4#) .
Additional highlights: Compact structure saves workshop space; detachable filling heads and hoppers for hassle-free cleaning and maintenance; stable mechanical transmission with low noise (<65dB); overload protection function to extend service life. This machine balances automation convenience and flexible operation, making it an ideal choice for pharmaceutical factories, health product manufacturers, R&D laboratories, and small-scale production facilities.
We offer reliable after-sales service and technical support to ensure smooth operation. Choose our Touch Screen Dual-Head Semi-Automatic Capsule Filling Machine for a cost-effective, high-performance solution to elevate your production efficiency and product competitiveness.
SEO Keywords: Touch screen dual-head capsule filling machine, semi-automatic dual-head capsule filler, high-efficiency capsule filling equipment, GMP capsule filler, pharmaceutical capsule production machine, powder/granule capsule filler.
This product stands out for its outstanding quality and leading-edge technology, having successfully obtained EU CE certification and UK UKCA certification, while also strictly complying with ISO international standard systems and GMP Good Manufacturing Practice (GMP) certification. The endorsement of these authoritative certifications not only demonstrates that the product meets world-class standards in terms of safety performance, quality control, and production processes, but also reflects our unwavering commitment to excellence in quality.
Since its launch, the product has been successfully supplied to customers in over 100 countries and regions worldwide, serving a wide range of sectors including industrial manufacturing, healthcare, and daily consumer goods. With its stable and reliable performance, superior technical advantages, and comprehensive after-sales service, the product has earned widespread praise and high recognition from customers both at home and abroad. Extensive real-world user feedback and long-term partnerships are a strong testament to its exceptional quality and proven reliability, making it a trusted and dependable choice you can rely on.
Double Loader Semi Automatic Capsule Filling Machine Encapsulation Machine
Introducing our Touch Screen Dual-Head Semi-Automatic Capsule Filling Machine, a high-efficiency and user-centric solution tailored for pharmaceutical, nutraceutical, herbal, and food supplement industries. Engineered with dual filling heads and an intelligent touch screen control system, this machine redefines semi-automatic capsule production by boosting output while ensuring exceptional filling precision.
1. The structure of the bag planting is changed to a streamlined and stable single-arm large column support, and a unique linkage power mechanism, which greatly improves the visual impact and synchronization of the bag planting. (patent)
2. The built-in bag control switch device can accurately and quickly adjust the opening and closing angle of the bag sowing frame.
3. The small capsule hopper is equipped with a gate to quickly clean the capsules.
4. Both large and small capsule hoppers adopt fast positioning devices, which can be quickly loaded and unloaded without tools.
5. The capsule disk rotating mechanism is changed from intermittent to uniform circular motion, which eliminates the feeling of frustration and greatly improves stability. (patent)
6. Newly added rotation design after sowing the capsule, which can achieve 100% separation of the capsule shell (patented)
7: The capsule tray display rack adopts a simple storage design, which can be easily expanded and stored, making it more user-friendly. (patent)
8: The lower support filling station realizes a short lever to support the entire filling station, lowering the center of gravity and making filling more stable and accurate.
9: The feeding screw power adopts a multi-stage positioning design, making the filling more stable and quiet. (patent)
10. The new horizontal type locking bag ejection device simplifies the tabletop, and all the power is placed under the table. It is also equipped with a bag ejection safety device, one-button operation, safe and convenient, and precise bag locking and ejection.
11. Continuous capsule filling structure, the old model is an intermittent inching structure, compared with the old model, the capsule filling rate is higher and more stable.
12. The air inflow of the vacuum pump is increased to 60L per minute, the old model is 40L, and the vacuum effect is more continuous.
13. Equipped with a folding capsule tray, which is convenient for operation and transportation and saves floor space.
14. The newly upgraded capsule locking device has no exposed cylinder and air pipe, making it safer for operators to use.
15. A new integrated cylinder is adopted to make the adjustment of compressed air more convenient and efficient.
16. Clearer compressed air pipeline, the black air pipe is the air intake, and the blue air pipe is the air outlet.
17. Equipped with a capsule filling safety cover to prevent the operator from accidentally touching it.
18. Equipped with a dust collecting box, make the capsule cleaner and easier to clean the machine.
Main technical parameters
| Productivity | 20,000—25,000 capsules/h |
| Applicable capsules | 00#, 0#, 1#, 2#, 3#, 4#, (000# / 5#, customized). |
| Filled medicine type | Non-viscosity or wet powders and small granules |
| Total power | 4Kw |
| Air pressure | 0.03m3/min, 0.7MPa |
| Evacuating rate of vacuum pump | 63m3/h |
| Package dimensions | 1600 *700*1685 mm (L*W*H) |
| Net/Gross weight | 500/570Kg |
Product details
