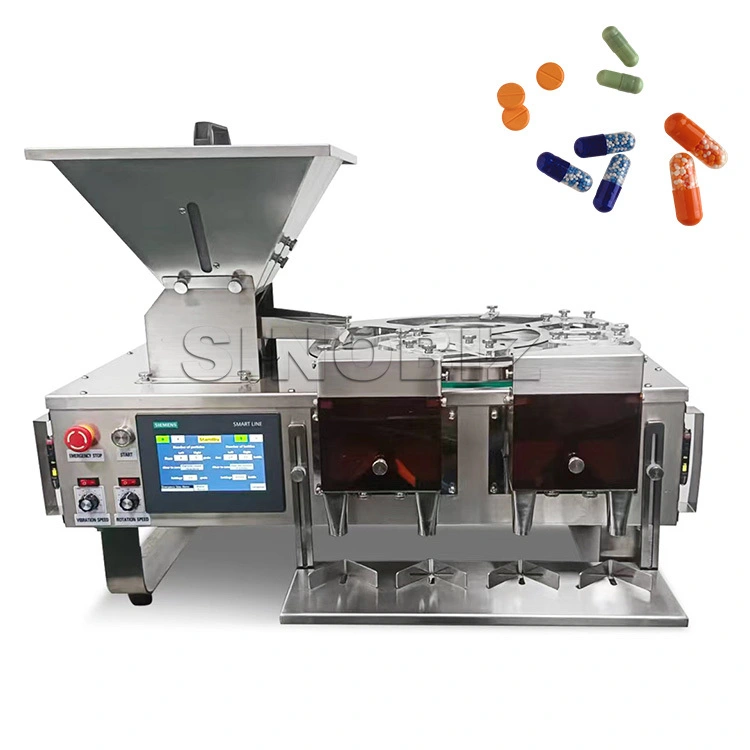

Electronic counting machine easy to operate by intelligent control
The control panel of this machine has an emergency stop button, the start button, the motor speed control knob, the vibration speed knob, and the smart touch screen. It’s easy to operate by intelligent control.
The infrared counter of this machine is compose of Japan's KEYENCE fiber optic sensor and sensing head .Compared with other machines, this machine has higher accuracy and faster speed.
The machine turntable is composed of high quality toughened glass and all stainless steel.It has rotate counting design, and the speed can be adjusted, which is convenient to operate.
Made of stainless steel 304 (0Cr18Ni9)
Easy to operate by intelligent control
High-speed intermittent sealing
Convenient to operate
Samples
Product features
Our company adopts the internationally advanced vibrating channel,Oscillator variable frequency speed, PLC intelligent control of touch screen, optical fiber-sensitive head count, system self-inspection, fault indication alarm, automatic shutdown and other advanced technology. According to GMP standards, the body uses all stainless steel quality, which is a high-tech medical counting device integrated in the collective motor.
This machine belongs to the quasi desktop type counting device with reasonable design and compact structure. The machine is easy to operate and high-efficiency, which can be widely used in a variety of different shapes and size tablets, capsules, pills, transparent soft capsules and other drugs counting. The counting accuracy reach advanced levels in the world.
Basic parameters
|
Product model |
ZS-4B |
|
speed |
1200-3000pcs/min |
|
Application |
Hard capsules, soft capsules, tablets, pills, etc. |
|
Control device |
Touch screen |
|
Counting method |
Infrared detection |
|
Suitable size |
Capsule model 000 # -5 # |
|
Counting error |
±0.3% |
|
Voltage |
220V/50-60Hz /500W |
|
Weight（kg） |
65kg |
|
Overall dimension |
922mm×580mm×724mm |
|
Machine material |
Material stainless steel 304 (0Cr18Ni9） |
Counting machine configuration list
|
Name |
Specification |
Brand |
Quantity |
|
touch screen |
SIEMENS |
6AV6648-ODC11-3AXO |
1 |
|
PLC |
SIEMENS |
6ES7288-1ST20-0AA1 |
1 |
|
Optical Fiber Sensor |
Japan KEYENCE |
FS-N41N |
2 |
|
Fiber Sensor |
Japan KEYENCE |
FU-E40 |
2 |
|
Motor |
Taizhou Shengbiao |
4RK25RGN-C |
1 |
|
Oscillator |
self-restraint |
220V/50HZ |
1 |
|
Intermediate relay |
RJ1S-CL-D24 |
Japan Idec |
2 |
|
solid state relay |
Taiwan Yangming |
SSR-10 DD |
4 |
|
Electromagnet |
Wenzhou Jifa |
JF-1253B |
4 |
