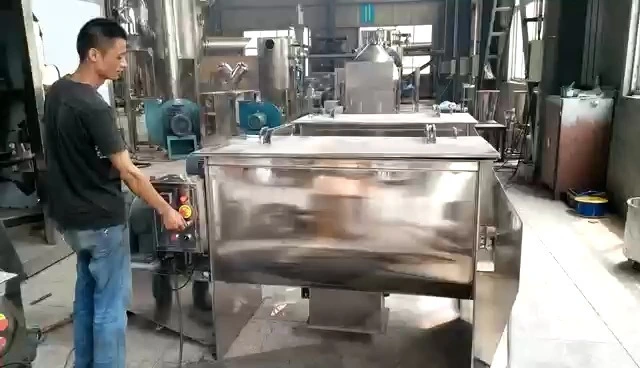

High Quality Horizontal Stainless Steel Material Dry Powder Ribbon Mixer Blender for Food Industry Use
This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre front two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to form convection mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
Ribbon mixer
Product Description
The ribbon mixer is composed of a U-shaped container, ribbon mixing blades and transmission parts; the U-shaped long cylinder structure enables the mixed material (powder, semi-fluid) to move with small resistance in the cylinder. The positive and negative rotating spirals are installed on the same horizontal axis to form a low-power and high-efficiency mixing environment. The spiral ribbon blades are generally made of double or triple layers. The outer spiral gathers materials from both sides to the center, and the inner spiral Conveying the material from the center to both sides can make the material form more eddy currents in the flow.
Product Specifications
| Model | WLDH-0.3 |
| Total volume | 0.3m³ |
| Loading coefficient | 0.4-0.6 |
| Loading weight per batch | 100-200kg |
| Power | 4-11KW |
| Mesh of raw material | 20-500 |
| Rotate speed of principal axis | 45 r/min |
| Weight | 860kg |
| Inner size | φ500x1300 |
Machine Details
1. The bucket and paddle are all made of stainless steel, which is easy to clean and avoids corrosion.
3. The special design of the protective door makes it easy to maintain the equipment, and it is specially equipped with a man ladder to make feeding more convenient (a hoist can also be equipped according to customer needs).
4. The visible window on the top is easy to observe the mixing situation.
5. The overturning mixer is equipped with a cylinder overturning function, which is convenient for users to discharge and clean during use.
SHAFT INTRODUCTION
Different main shaft agitators can be equipped according to the properties of raw materials.
Materials commonly mixed are: different kinds of powder to be mixed with each other, batches mixing for the same material, powder with a small quantity of liquid, liquid with some powder, like slurry, thickening or diluting slurry, granule with powder, granule with granule, or agglomerated material breaking and mixing, and cooling or heating.
Product Application
The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
