WLDH Model Horizontal Type 1500L Ribbon Mixer

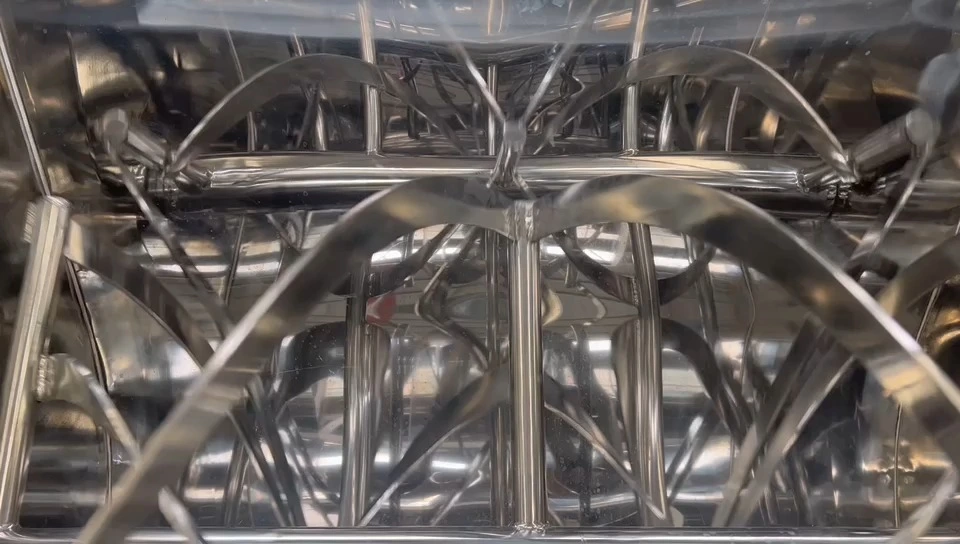

The powder ribbon mixer is composed of container, screw paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the center front two sides, and the inner layer of screw conveys the material to the two sides from the center, so as form convention mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
Product features
1. It is suitable for mixing materials of powder-powder and power-liquid, especially for paste, powder and thick materials, such as putty, stone coatings, metal powders etc.
2. It is a new type of mixing equipment with high efficiency, high uniformity, high load factor, low energy consumption, low pollution and little destruction to frangible material.
customized Ribbon Mixer
3. The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit.
4. The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
5. The surface of machine is made of 304 stainless steel material, and the contact powder part can be customized with 316.
applications:
The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is different to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Main technical parameters
Items | Parameters | |||
Name | WLDH Model Horizontal Type Ribbon Mixer | |||
Machine volume | 0.05m3/50L | 0.1m3/100L | 0.2m3/200L | 0.3m3/300L |
Loading volume | 15-30L | 30-60L | 60-120L | 100-180L |
Product mesh | 20-500mesh | |||
Mixing motor | 1kw | 1.5kw | 2kw | 3kw |
Weight: | 200kg | 320kg | 400kg | 510kg |
Thickness of barrel | 5mm (Standard: SUS 304. Customized: SUS 316L) | |||
External frame | Carbon steel / SUS 304 | |||
Feeding way | Auger feeding/manual | |||
Open way | Cylinder auto open cover | |||
Discharge valve | Automatic discharge by cylinder | |||
Items | Parameters | |||
Name | WLDH Model Horizontal Type Ribbon Mixer | |||
Machine volume | 0.5m3/500L | 1m3/1000L | 1.5m3/1500L | 2m3/2000L |
Loading volume | 200-300L | 400-600L | 600-900L | 800-1200L |
Product mesh | 20-500mesh | |||
Mixing motor | 4kw | 7.5kw | 11kw | 18.5 kw |
Weight: | 920kg | 1450kg | 1950kg | 3160kg |
Thickness of barrel | 5mm (Standard: SUS 304. Customized: SUS 316L) | |||
External frame | Carbon steel / 304 Stainless steel | |||
Feeding way | Auger feeding/manual | |||
Open way | Cylinder auto open cover | |||
Discharge valve | Automatic discharge by cylinder | |||
