High-Speed Automatic Cartoning Machine Food and Daily Chemical Packaging Line
automatic cartoning machine

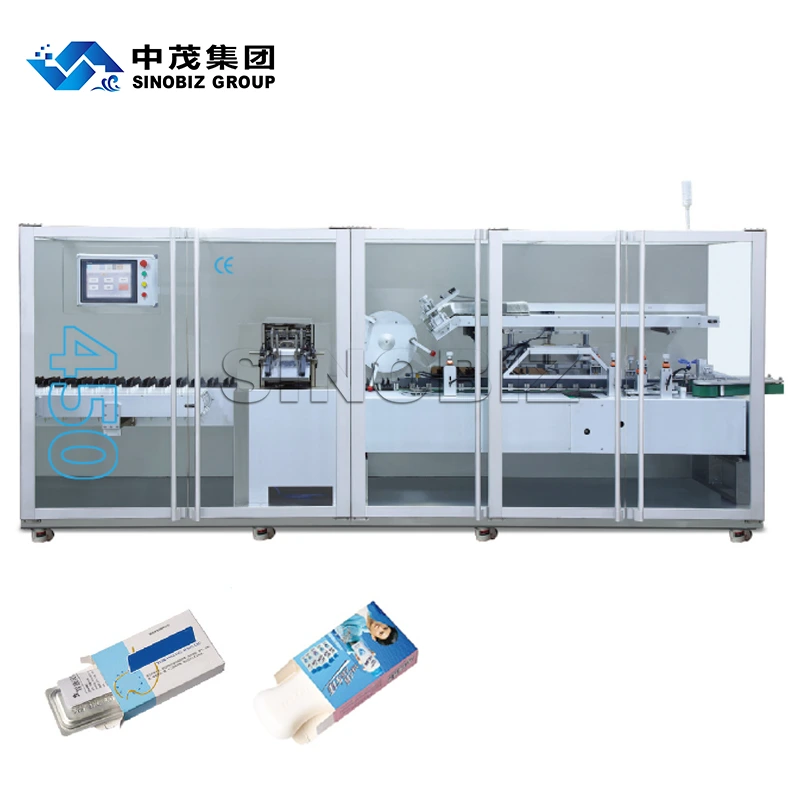

The ZH Series High-Speed Automatic Cartoning Machine is a premium automated packaging solution integrating mechanics, electricity, and pneumatics. Specifically designed for daily chemicals, food, health products, and other industries, it enables full-process automated packaging with one-click operation, including automatic leaflet folding & conveying, product feeding, carton forming, batch coding, sealing, and finished product output.
With a maximum speed of 450 cartons per minute, the machine delivers stable and high-efficiency performance. Its wide size compatibility supports various product forms such as blister packs, bottles, tubes, and soft bags, ensuring quick and flexible changeovers. Constructed with food-grade 304 stainless steel and strictly compliant with GMP standards, the machine features exceptional hygiene and safety. Equipped with a user-friendly PLC control system and self-diagnosis functions, it is easy to maintain. Choosing JOEEI cartoning machines empowers your production line with cost reduction, quality improvement, and efficiency enhancement, facilitating scalable and high-efficiency production.
features
Ultra-High Speed & High Performance：With a maximum speed of up to 450 cartons per minute, the machine is equipped with a high-efficiency drive system for precise and stable operation. Significantly improving productivity compared to traditional models, it perfectly meets the high-volume demands of large-scale enterprises, effectively shortening production cycles and reducing unit manufacturing costs.
Universal Compatibility & Quick Changeovers：Supporting a wide range of carton sizes (70-220mm × 35-135mm × 15-65mm), the machine flexibly handles various product forms such as blister packs, bottles, tubes, and soft bags. Quick and easy changeovers without complex debugging enable flexible production for multi-category and small-batch requirements.
Full-Automatic Integration & Intelligent Efficiency：Integrating full-process functions including carton suction, forming, automatic leaflet folding & conveying, product loading, batch coding, sealing, and output, the machine realizes intelligent unmanned operation with only one operator needed for monitoring. It significantly reduces labor costs while automatically detecting abnormalities to eliminate errors, ensuring high packaging yields.
Features
GMP Compliance & Medical-Grade Hygiene：Constructed with food-grade 304 stainless steel, the machine strictly complies with GMP standards. The sealed design of pneumatic and electrical circuits prevents cross-contamination, and parts in contact with products are easy to clean and disassemble. It provides the safest packaging solution for high-cleanliness industries including health products and medical devices.
Intuitive Control System & Easy Maintenance：Featuring a PLC control system and a high-definition touch screen HMI, parameter settings are simple and intuitive. Equipped with a self-diagnosis system, the machine automatically stops and alarms in case of faults for quick troubleshooting. Its modular design facilitates easy maintenance, significantly reducing downtime and after-sales costs.
Mechatronics Integration & Durable Reliability：Integrating mechanical, electrical, and pneumatic precision control technologies, the machine features a compact, sturdy structure with strong shock resistance. Core components are made of high-precision, wear-resistant materials for long service life and low failure rates. Capable of 24/7 high-intensity operation, it ensures stable and reliable performance.
Main technical parameters
|
Model |
ZH-220 |
ZH-320 |
ZH-450 |
|
Encasing speed |
≤220 Box/min |
≤320 Box/min |
≤450 Box/min |
|
Carton Quality requirement |
250-350g/m² |
280-350g/m² |
280-350g/m² |
| Carton Dimension range (LxWxH) |
(70-220)x(35-135)x(15-85)mm |
(70-180)x(35-85)x(15-65)mm |
(70-180)x(35-80)x(15-50)mm |
|
Leaflet Quality requirement |
60-80g/m² |
60-80g/m² |
60-80g/m² |
|
Leaflet Unfolded leaflet specification |
(90-250)x(90-180)mm |
(90-250)x(90-180)mm |
(90-250)x(90-180)mm |
|
Compressed air |
≥0.3m³/min 0.6mpa |
≥0.3m³/min 0.6mpa |
≥0.3m³/min 0.6mpa |
|
Power supply |
2.2kw 380V50HZ |
2.2kw 380V50HZ |
3.2kw 380V50HZ |
|
Machine dimension (LxWxH) |
4700x1550x1700mm |
4200x1550x1700mm |
4500x1550x1700mm |
|
Machine weight |
3000kg |
3000kg |
3500kg |
