Automatic Cartoning Machine for Pharma Cosmetics etc SN-50/80
Application:
Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.
Description:
Vertical Box Packing Machine is intermittent motion semi-automatic cartoning machines, capable of packing reverse type tuck in cartons for various industries like Pharma, Food, Cosmetics, etc.
Having branded components for electric and pneumatic functions. Simple and steady design confirms the machine performance and stability. With various arrangements of feeders it can auto feed, Bottles, Vials, Blisters, Tubes, Strips & Pouch to be manually feed. (Leaflet auto feeding is available.)
Features
tiple function and require a short time to change mould.
Technical parameters
|
Item/model |
SN-50 |
SN-80 |
|
Packing speed |
20-40 Boxes/min (depending on box size) |
20-30 Boxes/min (depending on box size) |
|
Maximum size of carton |
L250*W78*H78mm |
L250*W100*H100mm |
|
Minimum size of carton |
L60 *W25 *H25 mm |
L60 *W25 *H25 mm |
|
Motor power |
1/4HP 15:1 |
1/4HP 15:1 |
|
Power type |
1p 220V 50/60HZ |
1p 220V 50/60HZ |
|
Machine noise |
≤80dB |
≤80dB |
|
Air source |
0.5-0.8 Mpa |
0.5-0.8 Mpa |
|
Air consumption |
150L/min |
150L/min |
|
Dimensions |
L 1400 x W 900 x H 1450 mm |
L 1400 x W 900 x H 1450 mm |
|
Machine weight |
250Kg |
250Kg |
Packing Process
Final product
Machine diagram

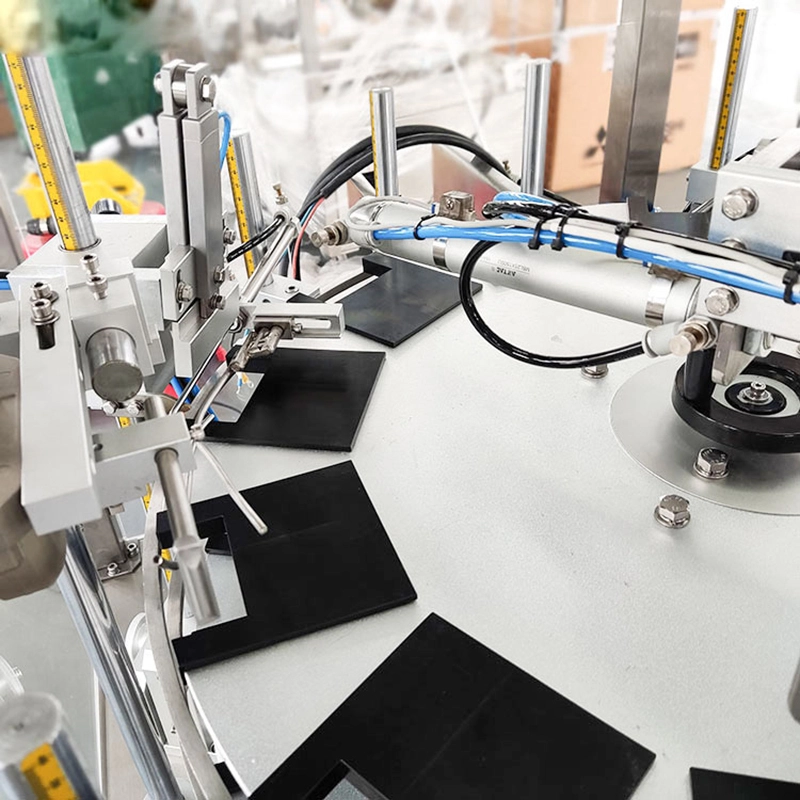

Machine photos
Machine display
SN-50/80 electrical configuration list
|
Product name |
Brand |
mold |
QTY |
|
Cam divider |
Japanese |
RHH70F.12-120R |
1 |
|
Reduction motor |
VTV |
Y100-200F/100JB25G15T |
1 |
|
Vacuum pump |
|
AP-1400V |
1 |
|
Coupling |
R+W |
SK3/60/84/D/20/20/50/25-80 |
1 |
|
Inverter |
Delta |
VFD2A8MS21ANSAA+2M线 |
1 |
|
Touch screen |
Buk |
MT4414TE-2XUART+MT54-FP-3M |
1 |
|
PLC |
Panasonic |
AFPOR-C32T |
1 |
|
Encoder |
Omron |
E6B2-CWZ6C-1000P/C |
1 |
|
Cylinder |
Festo |
EZH-5/20-25 |
4 |
|
Return cylinder |
Festo |
DSR-25-180-P |
1 |
|
Cylinder |
Airtac |
MI-10*100-S-U |
2 |
|
Cylinder |
Airtac |
MI-16*100-S-U |
1 |
|
Cylinder |
Airtac |
MI-10*80-S-U |
1 |
|
Cylinder |
Airtac |
MI-16*160-S-U |
1 |
|
Cylinder |
Airtac |
PK510 |
1 |
|
Pressure controller |
Airtac |
LRS-150-24 |
1 |
|
Switching power supply |
Mean Well |
EE-SX671+线EE-1006 2M |
1 |
|
Slot switch + photoelectric connection line |
Omron |
LW42B2-1824/LF101 |
1 |
|
Cam switch |
Tianyi |
RJ1S-CL-D24 |
1 |
|
Intermediate relay |
Izumi |
NXB-63 2P D16 |
1 |
|
Air switch/circuit breaker |
Chint |
PRCM12-4DN+CLD3-2 |
2 |
